TPP206081, TPP206080 Synchronous Step-Down DC-DC Voltage Converter

TPP206081 Description

TPP20608x 17-V Input, 6-A, Synchronous Step-Down DC-DC Voltage Converter .
The TPP20608x is a series of 17-V, 6-A output, synchronous, step-down, switch-mode converters with integrated power MOSFETs.

TPP206081 Features

* Ultra-low RDS(ON) 18-mΩ and 15-mΩ MOSFETs
* 200-kHz to 1.6-MHz Adjustable Switching Frequency
* Integrated PLL to Synchronize with External Clock
* Adjustable UVLO Voltage and Hysteresis
* Under-voltage and Over-voltage Power Good Output
* Adjustable

TPP206081 Applications

* 5-V, 12-V Industrial Power Application
* High-Density Point-of-Load Regulation

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TPP206081, TPP206080. Please refer to the document for exact specifications by model.

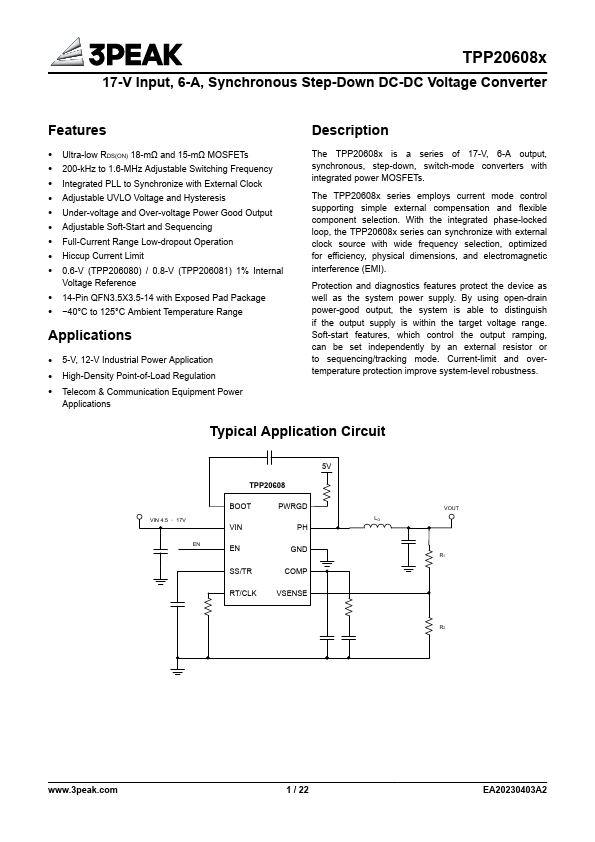

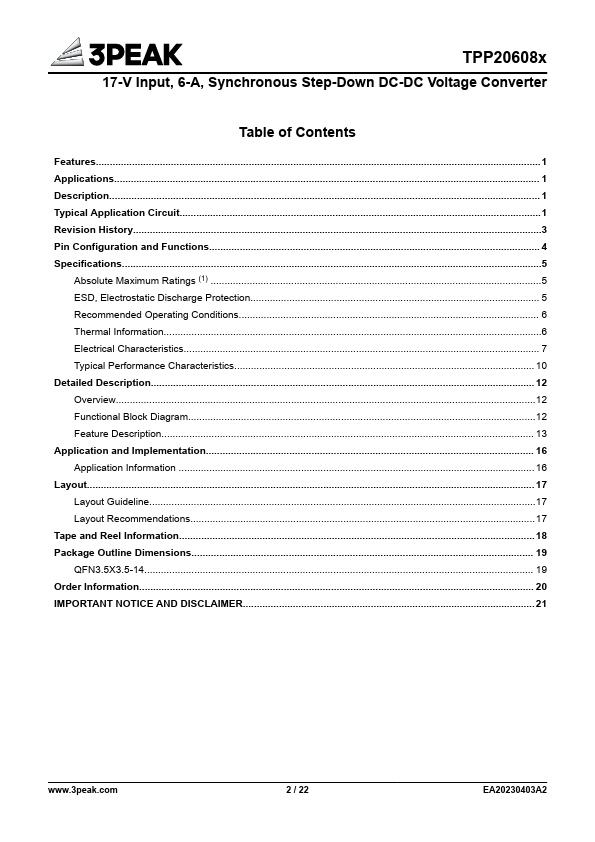

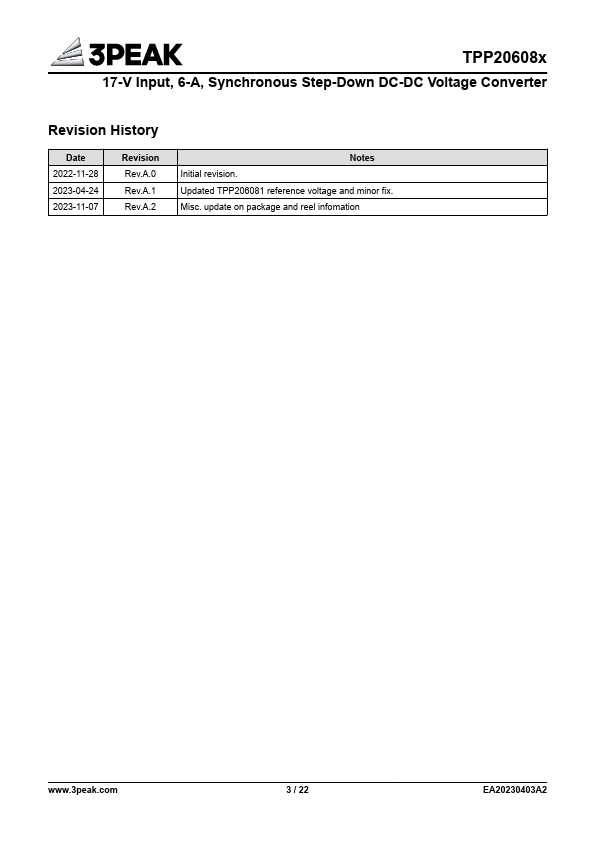

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPP206081, TPP206080
Manufacturer
3PEAK
File Size
1.58 MB
Datasheet
TPP206080-3PEAK.pdf
Description
Synchronous Step-Down DC-DC Voltage Converter
Note
This datasheet PDF includes multiple part numbers: TPP206081, TPP206080.
Please refer to the document for exact specifications by model.
