TPP05608 - 6-A Synchronous Step-down Regulator

3PEAK

The TPP05608 by 3PEAK is a 6-A Synchronous Step-down Regulator. Below is the official datasheet preview.

📥 Download Datasheet

TPP05608 6-A Synchronous Step-down Regulator by 3PEAK - Datasheet Preview — Official preview page of the TPP05608 6-A Synchronous Step-down Regulator datasheet (3PEAK).

Datasheet Details

Part number	TPP05608
Manufacturer	3PEAK
File Size	1.07 MB
Description	6-A Synchronous Step-down Regulator
Datasheet	TPP05608-3PEAK.pdf

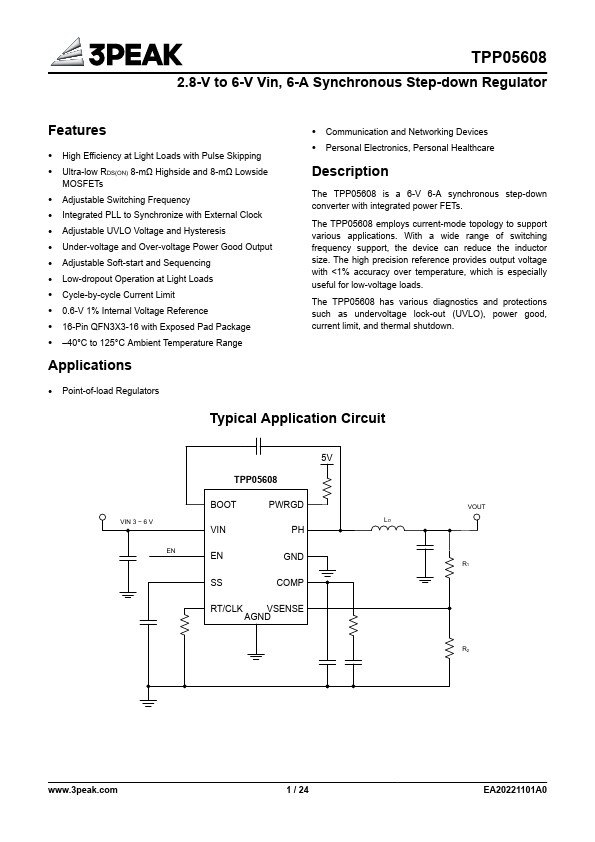

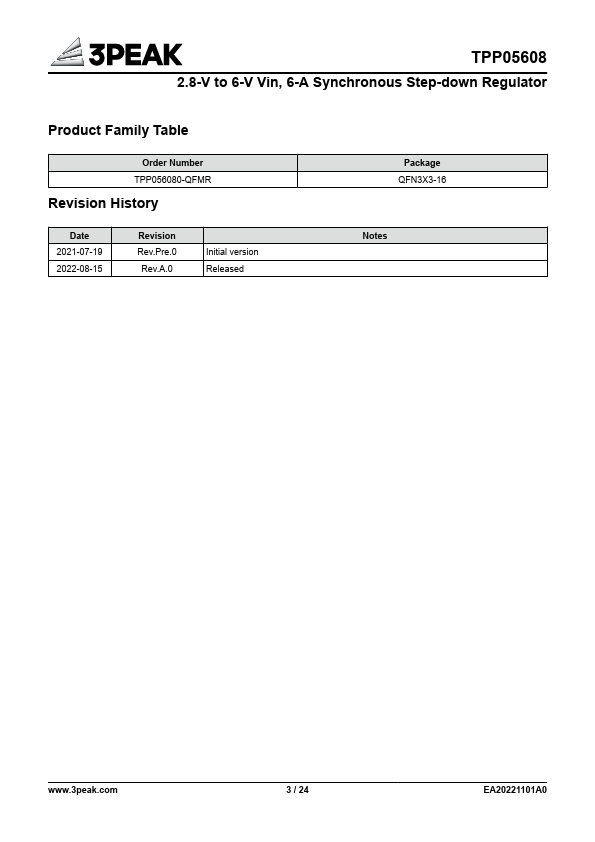

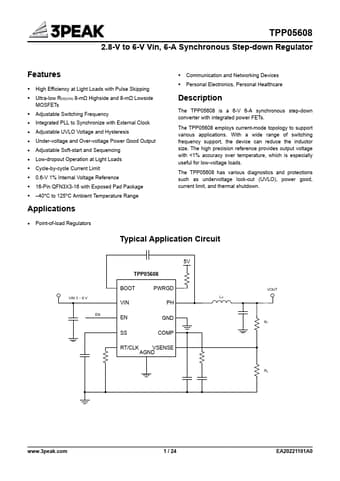

Additional preview pages of the TPP05608 datasheet.

TPP05608 Product details

Description

The TPP05608 is a 6-V 6-A synchronous step-down converter with integrated power FETs.

Features

High Efficiency at Light Loads with Pulse Skipping.
Ultra-low RDS(ON) 8-mΩ Highside and 8-mΩ Lowside MOSFETs.
Adjustable Switching Frequency.
Integrated PLL to Synchronize with External Clock.
Adjustable UVLO Voltage and Hysteresis.
Under-voltage and Over-voltage Power Good Output.
Adjustable Soft-start and Sequencing.
Low-dropout Operation at Light Loads.
Cycle-by-cycle Current Limit.
0.6-V 1% Internal Vo.
