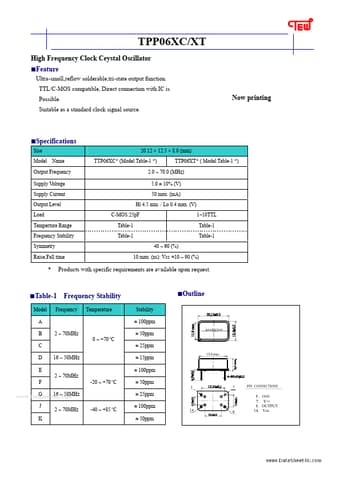

TPP06XC/XT
High Frequency Clock Ceystal Oscillator
■Feature
Ultra-smoll,reflow solderable,tri-state output function. TTL/C-MOS compatible, Direct connection with IC is Possible. Suitable as a standard clock signal source.
Now printing
■Specifications
Sise Model Name 20.12 × 12.5 × 8.0 (mm) TTP06XC* (Model Table-1 *) TTP06XT* ( Model Table-1 *)
Output Frequency Supply Voltage Supply Current Output Level Load Temperture Range Frequency Stability Symmetry Raise,Fall time
2.0 ~ 70.0 (MHz) 5.0 ± 10% (V) 50 max. (mA) Hi 4.5 min. / Lo 0.4 max. (V) C-MOS:25pF Table-1 Table-1 40 ~ 60 (%) 10 max. (ns): Vcc =10 ~ 90 (%) 1~10TTL Table-1 Table-1
*
Products with specific requirements are available upon request.
