TPM27525, TPM27523 - Dual 5-A Low-side Gate Driver

The TPM27525 by 3PEAK is a Dual 5-A Low-side Gate Driver. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the TPM27525 Dual 5-A Low-side Gate Driver datasheet (3PEAK).

Datasheet Details

Part number TPM27525, TPM27523
Manufacturer 3PEAK
File Size 1.34 MB
Description Dual 5-A Low-side Gate Driver
Datasheet download datasheet TPM27523-3PEAK.pdf
Note This datasheet PDF includes multiple part numbers: TPM27525, TPM27523.
Please refer to the document for exact specifications by model.
Additional preview pages of the TPM27525 datasheet.

TPM27525 Product details

Description

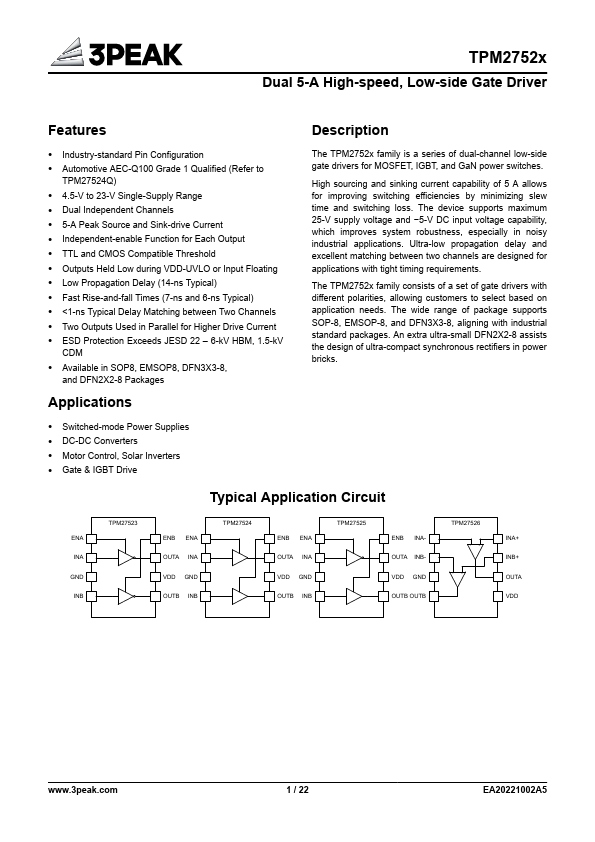

Industry-standard Pin Configuration Automotive AEC-Q100 Grade 1 Qualified (Refer to TPM27524Q) 4.5-V to 23-V Single-Supply Range Dual Independent Channels 5-A Peak Source and Sink-drive Current Independent-enable Function for Each Output TTL and CMOS Compatible Threshold Outputs Held Low during VDD-UVLO or Input Floating Low Propagation Delay (14-ns Typical) Fast Rise-and-fall Times (7-ns and 6-n
