TPM27524Q - Automotive Dual 5-A High-Speed Low-Side Gate Driver

The TPM27524Q by 3PEAK is a Automotive Dual 5-A High-Speed Low-Side Gate Driver. Below is the official datasheet preview.

📥 Download Datasheet

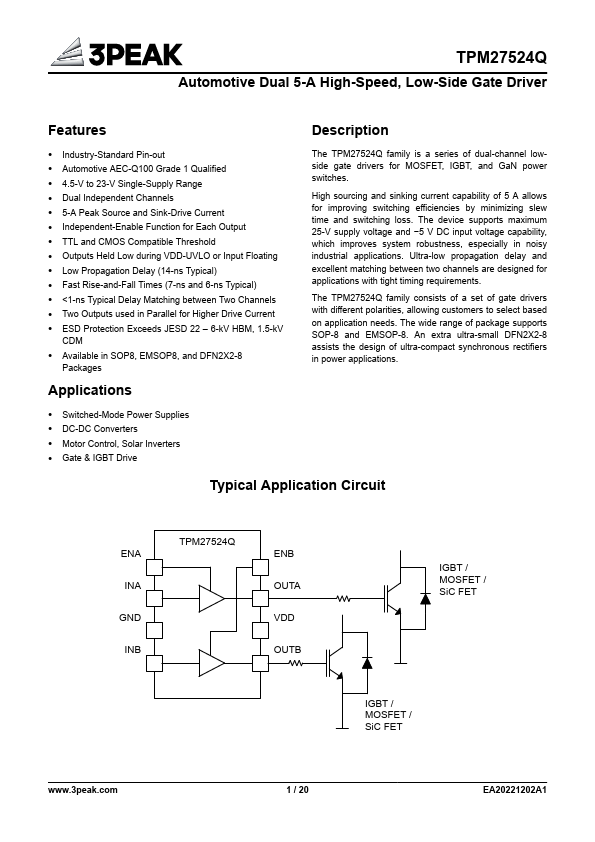

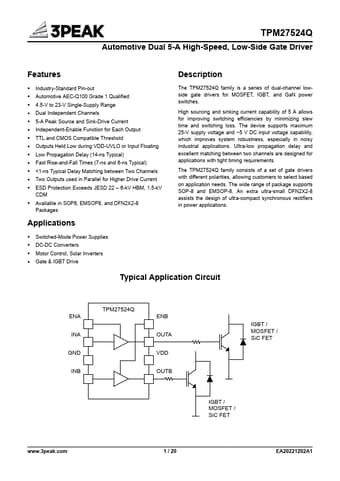

Official preview page of the TPM27524Q Automotive Dual 5-A High-Speed Low-Side Gate Driver datasheet (3PEAK).

Datasheet Details

Part number TPM27524Q
Manufacturer 3PEAK
File Size 1.35 MB
Description Automotive Dual 5-A High-Speed Low-Side Gate Driver
Datasheet download datasheet TPM27524Q-3PEAK.pdf

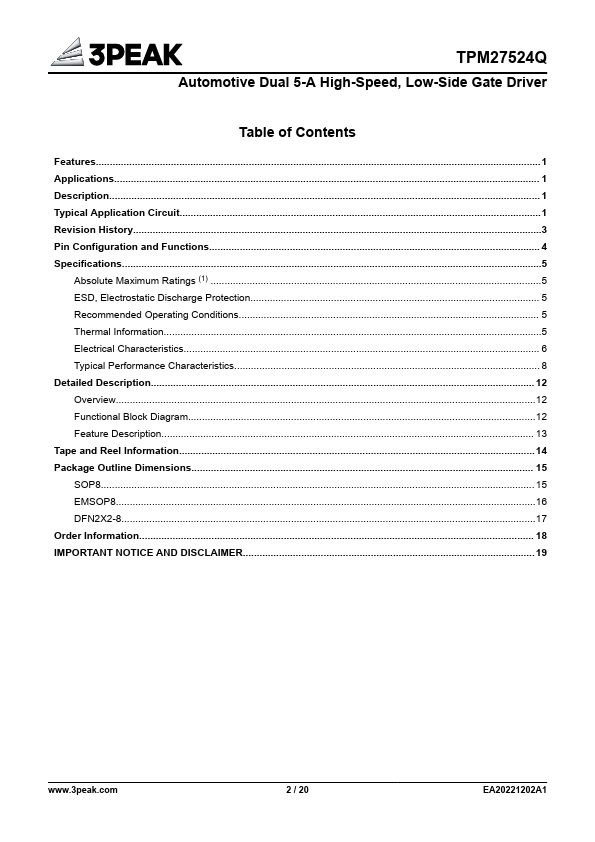

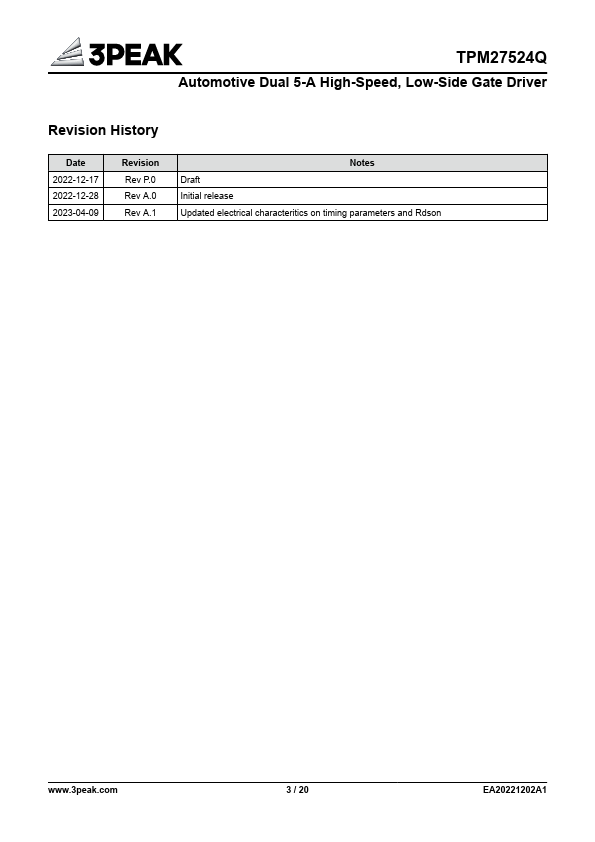

Additional preview pages of the TPM27524Q datasheet.

TPM27524Q Product details

Description

Industry-Standard Pin-out Automotive AEC-Q100 Grade 1 Qualified 4.5-V to 23-V Single-Supply Range Dual Independent Channels 5-A Peak Source and Sink-Drive Current Independent-Enable Function for Each Output TTL and CMOS Compatible Threshold Outputs Held Low during VDD-UVLO or Input Floating Low Propagation Delay (14-ns Typical) Fast Rise-and-Fall Times (7-ns and 6-ns Typical)
