TPM27517 Product details

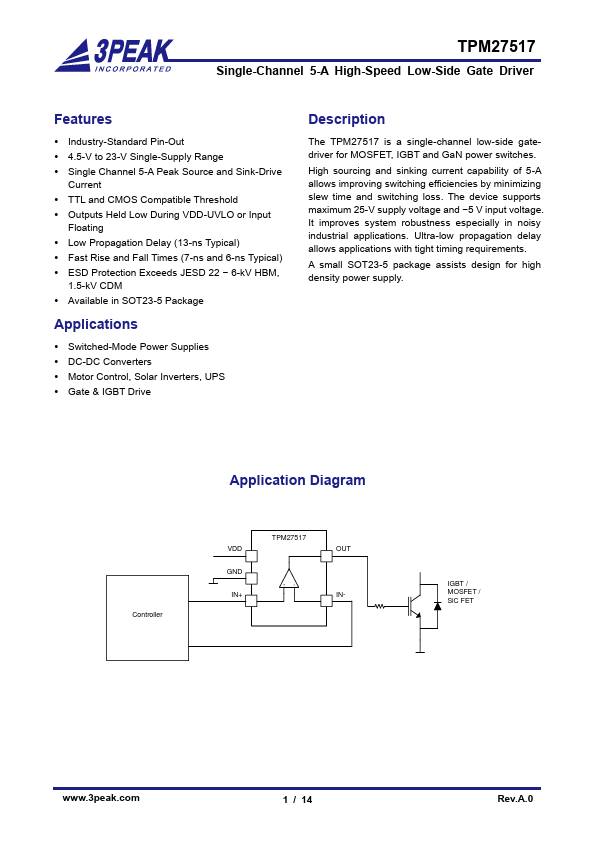

Description

The TPM27517 is a single-channel low-side gatedriver for MOSFET, IGBT and GaN power switches. 5 V input voltage.

Features

Industry-Standard Pin-Out.
4.5-V to 23-V Single-Supply Range.
Single Channel 5-A Peak Source and Sink-Drive Current.
TTL and CMOS Compatible Threshold.
Outputs Held Low During VDD-UVLO or Input Floating.
Low Propagation Delay (13-ns Typical).
Fast Rise and Fall Times (7-ns and 6-ns Typical).
ESD Protection Exceeds JESD 22.
6-kV HBM, 1.5-kV CDM.
Available in SOT23-5 Package.
