TPL810 High Voltage and Low Quiescent Current LDO

TPL810 Description

TPL810 Series 24-V Input, 180-mA Output High Voltage and Low Quiescent Current LDO .
The TPL810 series products are high-performance and low dropout linear regulators.

TPL810 Features

* Wide Input Voltage Range: 3.6 V to 24 V
* ±1% Output Accuracy Under Room Temperature
* Fixed Output: 2.8 V, 3 V, 3.3 V, and 5 V
* Adjustable Output: 1.2 V to 15 V
* Ultra-Low Quiescent Current: 2 µA
* Maximum Output Current: 180 mA
* Low Dropout Voltage: 200 mV

TPL810 Applications

* Handheld Devices with Battery Power Supply
* POS and Power Tools
* Meters and Smoke Detector
* Industrial control

📥 Download Datasheet

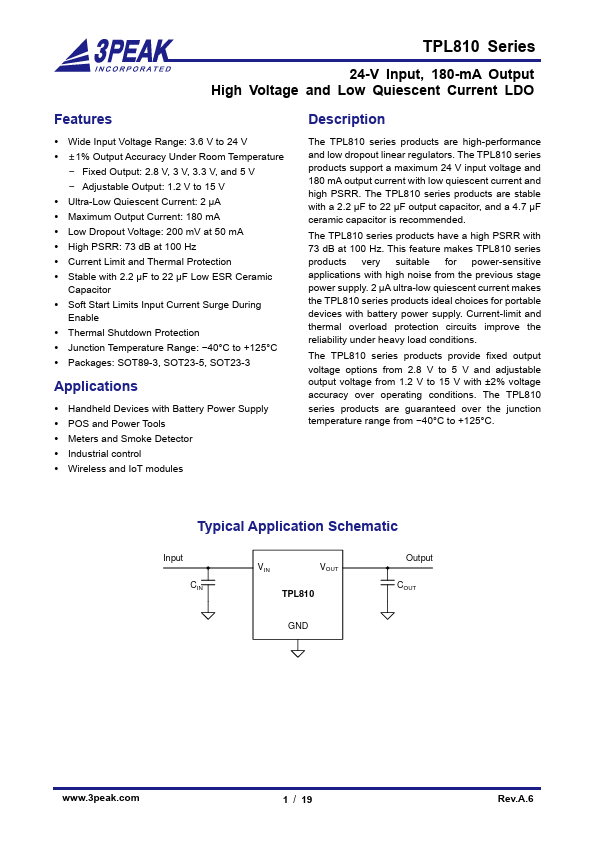

Preview of TPL810 PDF

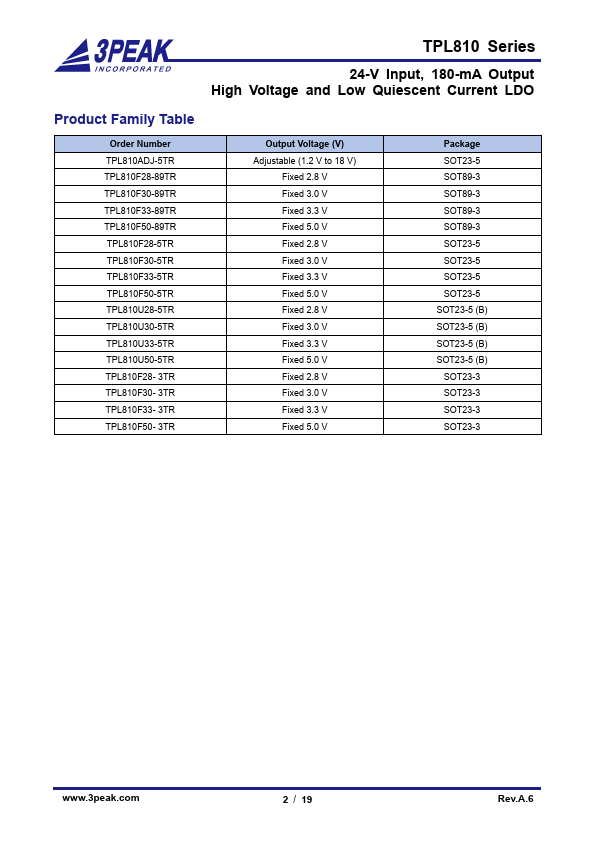

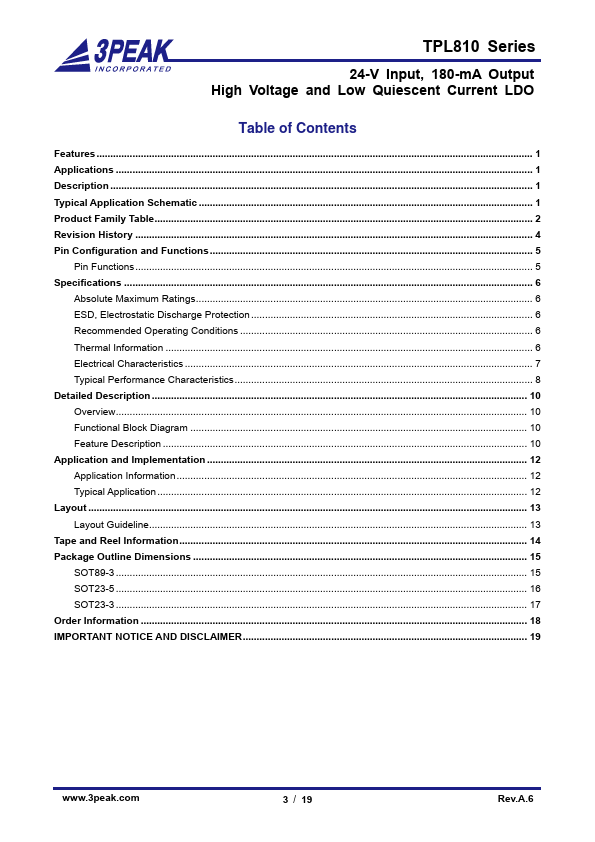

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPL810
Manufacturer
3PEAK
File Size
1.05 MB
Datasheet
TPL810-3PEAK.pdf
Description
High Voltage and Low Quiescent Current LDO
