TPL8151Q-S - 1.5-A Wide-Input High-Current Low-Dropout Linear Regulator

Download the TPL8151Q-S datasheet PDF. This datasheet also covers the TPL8151Q variant, as both devices belong to the same 1.5-a wide-input high-current low-dropout linear regulator family and are provided as variant models within a single manufacturer datasheet.

Description

The TPL8151Q is a 1.5-A high-current, low-dropout linear regulator with up to 29-V wide input voltage range.

The TPL8151Q supports adjustable output voltage ranging from 1.25 V with an external resistor divider and is stable with a 10-μF to 100-μF tantalum output capacitor.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TPL8151Q-3PEAK.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number TPL8151Q-S
Manufacturer 3PEAK
File Size 1.00 MB
Description 1.5-A Wide-Input High-Current Low-Dropout Linear Regulator
Datasheet download datasheet TPL8151Q-S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TPL8002-25 TANDEM 64-TAP DIGITAL POTENTIOMETER Texas Instruments
TPL0102 Two 256-Taps Digital Potentiometers Texas Instruments
TPL0102-EP 256-Taps Dual-Channel Digital Potentiometer Texas Instruments
TPL0202 256-Taps Dual Channel Digital Potentiometer Texas Instruments
TPL0401A 128-TAPS Single-Channel Digital Potentiometer Texas Instruments

Other Datasheets by 3PEAK

Part Number Description
TPL8151Q 1.5-A Wide-Input High-Current Low-Dropout Linear Regulator
TPL8151 1.5-A Wide-Input High-Current Low-Dropout Linear Regulator
TPL8151-S 1.5-A Wide-Input High-Current Low-Dropout Linear Regulator
TPL810 High Voltage and Low Quiescent Current LDO
TPL8031 40-V 300-mA Wide-Input Ultra-Low Quiescent Current Low-Dropout Linear Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

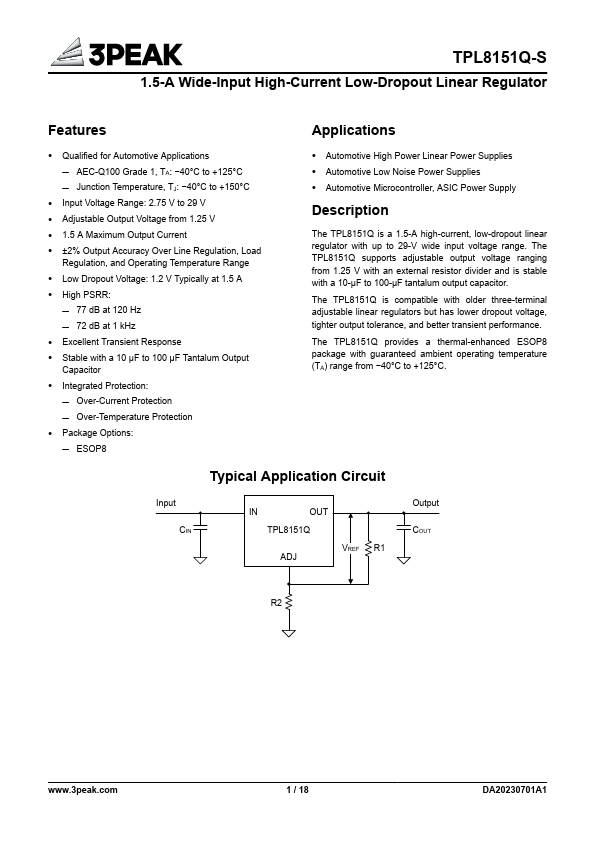

TPL8151Q-S 1.5-A Wide-Input High-Current Low-Dropout Linear Regulator Features Applications • Qualified for Automotive Applications – AEC-Q100 Grade 1, TA: −40°C to +125°C – Junction Temperature, TJ: −40°C to +150°C • Input Voltage Range: 2.75 V to 29 V • Adjustable Output Voltage from 1.25 V • 1.5 A Maximum Output Current • ±2% Output Accuracy Over Line Regulation, Load Regulation, and Operating Temperature Range • Low Dropout Voltage: 1.2 V Typically at 1.
