TPL8031 - 40-V 300-mA Wide-Input Ultra-Low Quiescent Current Low-Dropout Linear Regulator

3PEAK

The TPL8031 by 3PEAK is a 40-V 300-mA Wide-Input Ultra-Low Quiescent Current Low-Dropout Linear Regulator. Below is the official datasheet preview.

📥 Download Datasheet

TPL8031 40-V 300-mA Wide-Input Ultra-Low Quiescent Current Low-Dropout Linear Regulator by 3PEAK - Datasheet Preview — Official preview page of the **TPL8031** 40-V 300-mA Wide-Input Ultra-Low Quiescent Current Low-Dropout Linear Regulator datasheet (3PEAK).

Datasheet Details

Part number	TPL8031
Manufacturer	3PEAK
File Size	2.07 MB
Description	40-V 300-mA Wide-Input Ultra-Low Quiescent Current Low-Dropout Linear Regulator
Datasheet	TPL8031-3PEAK.pdf

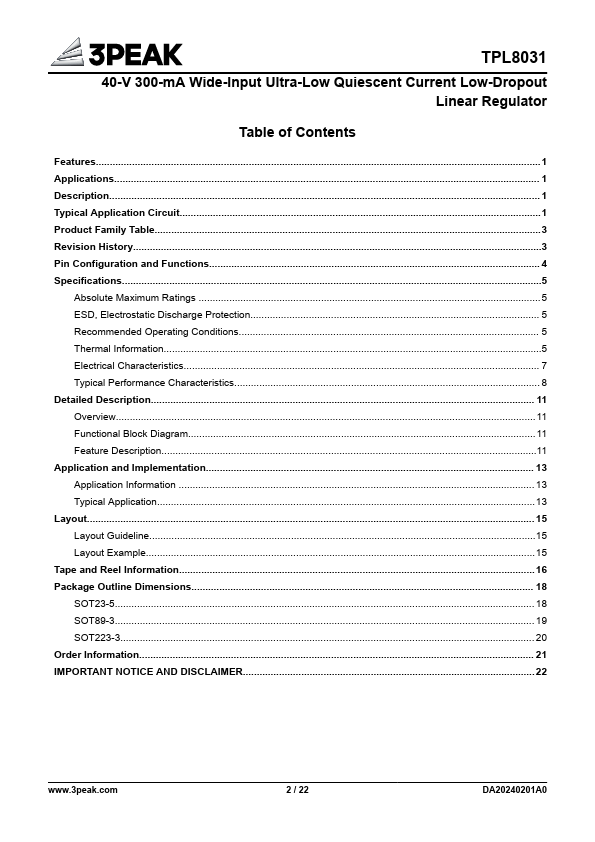

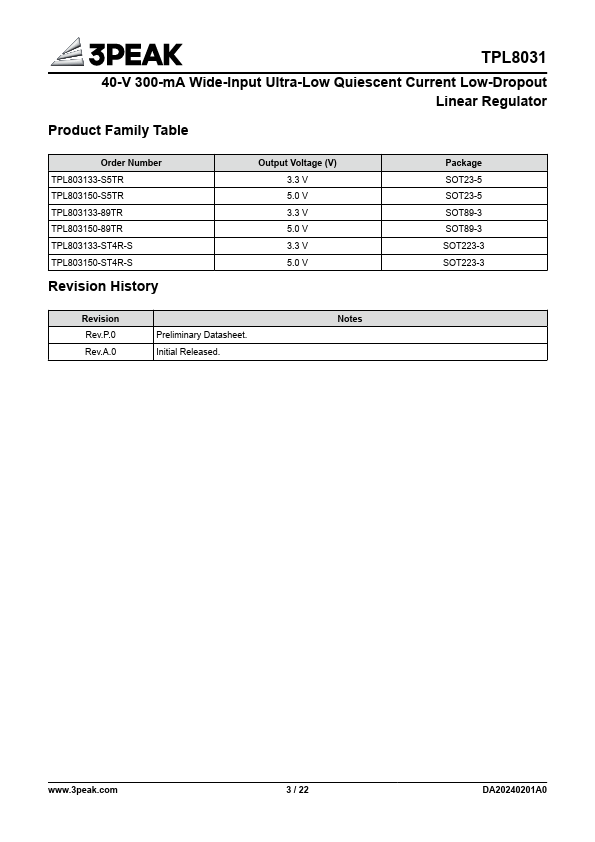

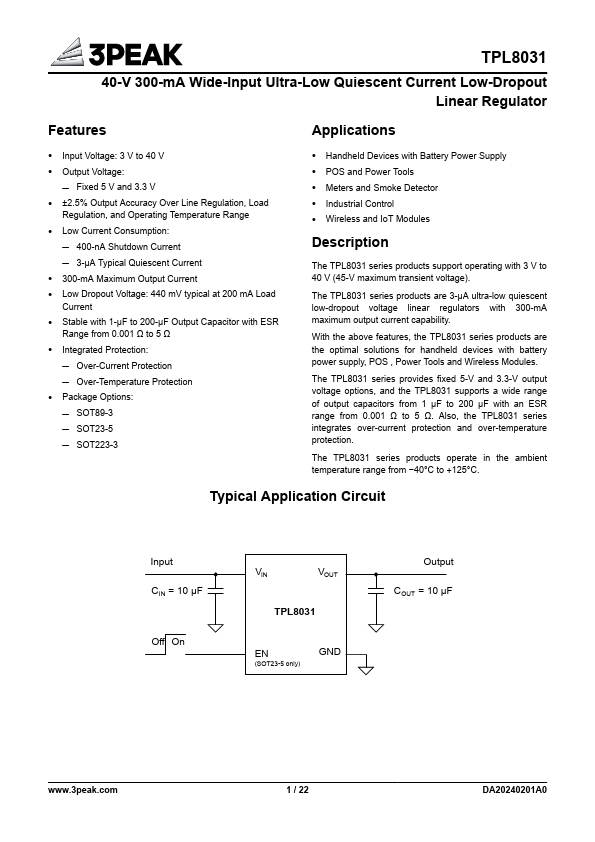

Additional preview pages of the TPL8031 datasheet.

TPL8031 Product details

Description

The TPL8031 series products support operating with 3 V to 40 V (45-V maximum transient voltage).

Features

Input Voltage: 3 V to 40 V.
Output Voltage:.
Fixed 5 V and 3.3 V.
±2.5% Output Accuracy Over Line Regulation, Load Regulation, and Operating Temperature Range.
Low Current Consumption:.
400-nA Shutdown Current.
3-μA Typical Quiescent Current.
300-mA Maximum Output Current.
Low Dropout Voltage: 440 mV typical at 200 mA Load Current.
Stable with 1-μF to 200-μF Output Capacitor with ESR Range from 0.001 Ω to.
