TPL8032-S - 20-V/300-mA Wide-Input High-PSRR Ultra-Low Noise LDO Regulator

3PEAK

The TPL8032-S by 3PEAK is a 20-V/300-mA Wide-Input High-PSRR Ultra-Low Noise LDO Regulator. Below is the official datasheet preview.

Datasheet Details

Part number	TPL8032-S
Manufacturer	3PEAK
File Size	1.35 MB
Description	20-V/300-mA Wide-Input High-PSRR Ultra-Low Noise LDO Regulator
Datasheet	TPL8032-S-3PEAK.pdf

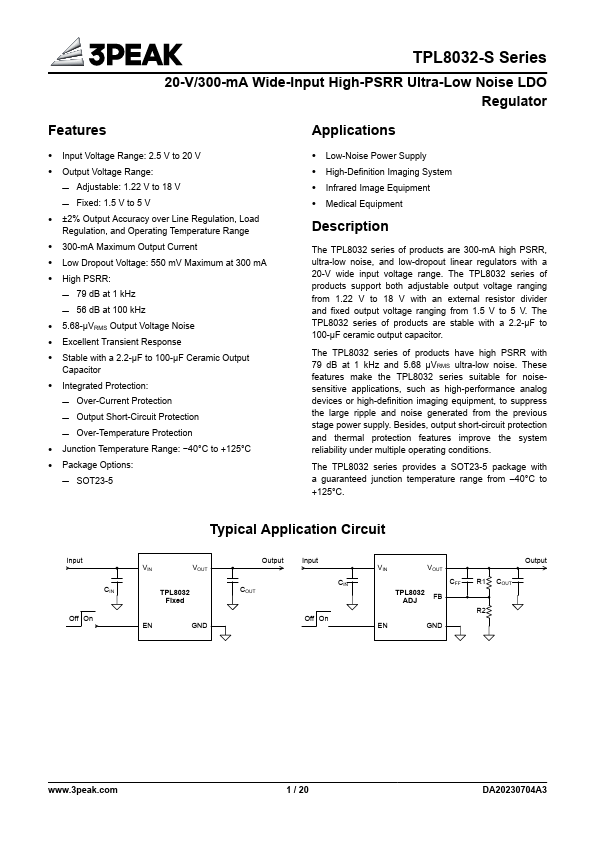

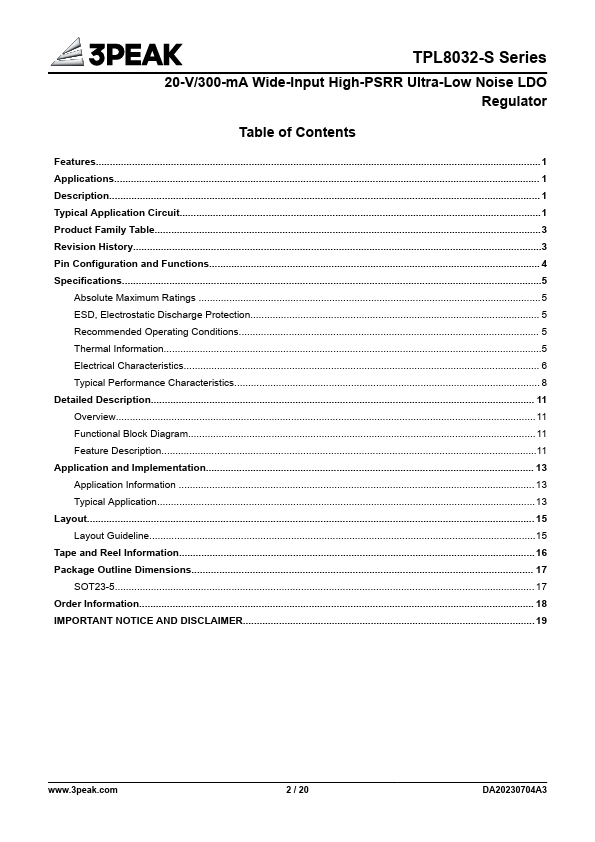

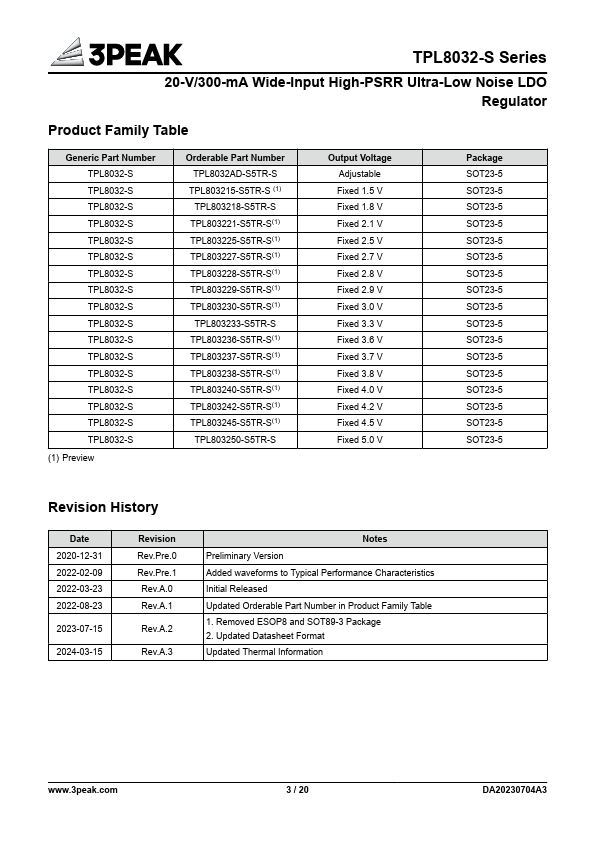

Additional preview pages of the TPL8032-S datasheet.

The TPL8032 series of products are 300-mA high PSRR, ultra-low noise, and low-dropout linear regulators with a 20-V wide input voltage range.

Input Voltage Range: 2.5 V to 20 V.
Output Voltage Range:.
Adjustable: 1.22 V to 18 V.
Fixed: 1.5 V to 5 V.
±2% Output Accuracy over Line Regulation, Load Regulation, and Operating Temperature Range.
300-mA Maximum Output Current.
Low Dropout Voltage: 550 mV Maximum at 300 mA.
High PSRR:.
79 dB at 1 kHz.
56 dB at 100 kHz.
5.68-μVRMS Output Voltage Noise.
Excellent Transient Response.
