TPL51201-S, TPL51201 3-A Sink and Source DDR Termination Regulator

TPL51201-S Description

.
With the development of main processors in PCs and servers, more and more source double-data-rate (DDR) memories are required in the mainboard, where.

TPL51201-S Features

* VIN Voltage: Support 2.5-V, 3.3-V and 5-V Power Rails
* VLDOIN Voltage Range: 1.1 V to 3.5 V
* Flexible Input Voltage Tracking Directly from REFIN or Through External Resistor Divider
* 3-A Sink and Source Current Capability for DDR Termination
* Integrated Power MOSFETs

TPL51201-S Applications

* Operating Temperature Range:
* 40°C to +125°C
* Small Package with 3×3 DFN-10
* Pb

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TPL51201-S, TPL51201. Please refer to the document for exact specifications by model.

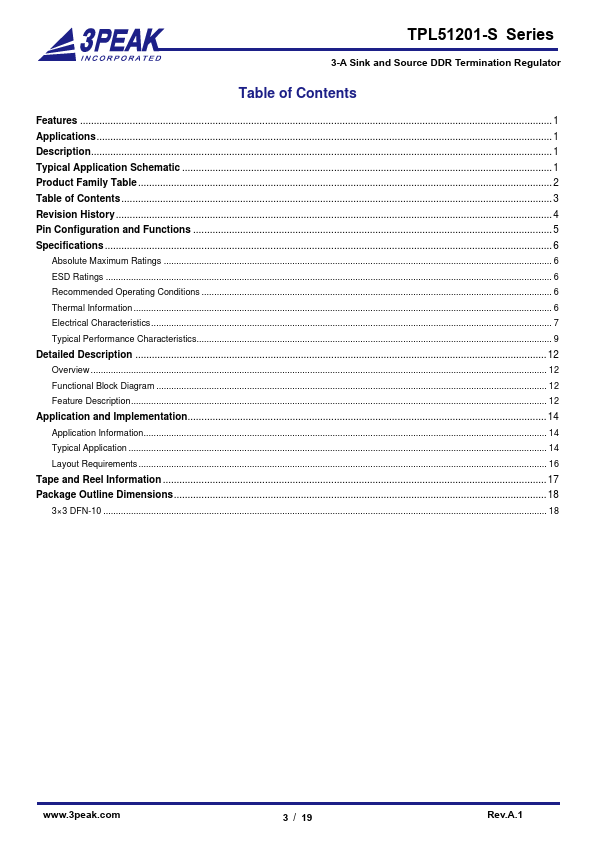

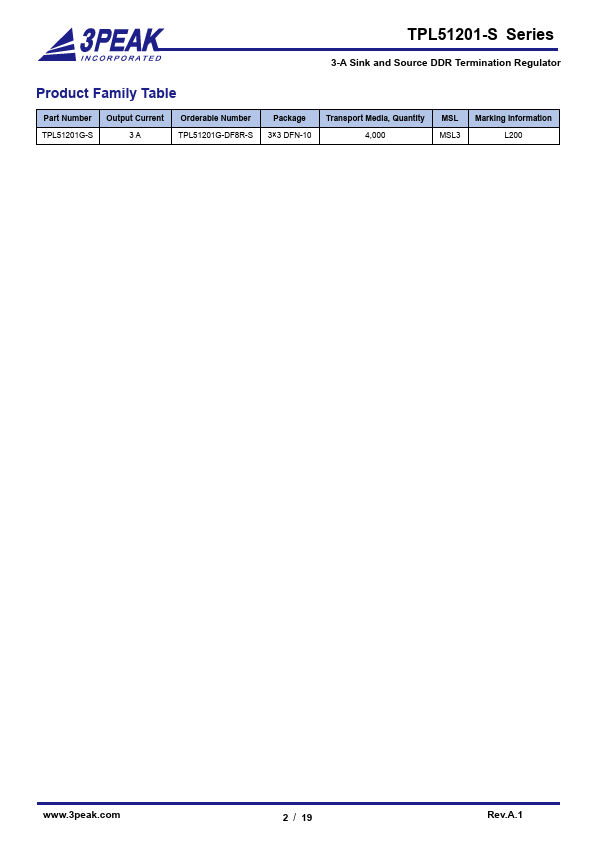

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPL51201-S, TPL51201
Manufacturer
3PEAK
File Size
885.47 KB
Datasheet
TPL51201-3PEAK.pdf
Description
3-A Sink and Source DDR Termination Regulator
Note
This datasheet PDF includes multiple part numbers: TPL51201-S, TPL51201.
Please refer to the document for exact specifications by model.
