TPL51200-S 3-A Sink and Source DDR Termination Regulator

TPL51200-S Description

TPL51200-S Series 3-A Sink and Source DDR Termination Regulator .
With the development of main processors in PCs and servers, more and more source double-data-rate (DDR) memories are required in the mainboard, where.

TPL51200-S Applications

* VIN Voltage: Support 2.5-V, 3.3-V and 5-V Power Rails
* VLDOIN Voltage Range: 1.1 V to 3.5 V
* Flexible Input Voltage Tracking Directly from REFIN or through External Resistor Divider
* 3-A Sink and Source Current Capability for DDR Termination
* Integrated

📥 Download Datasheet

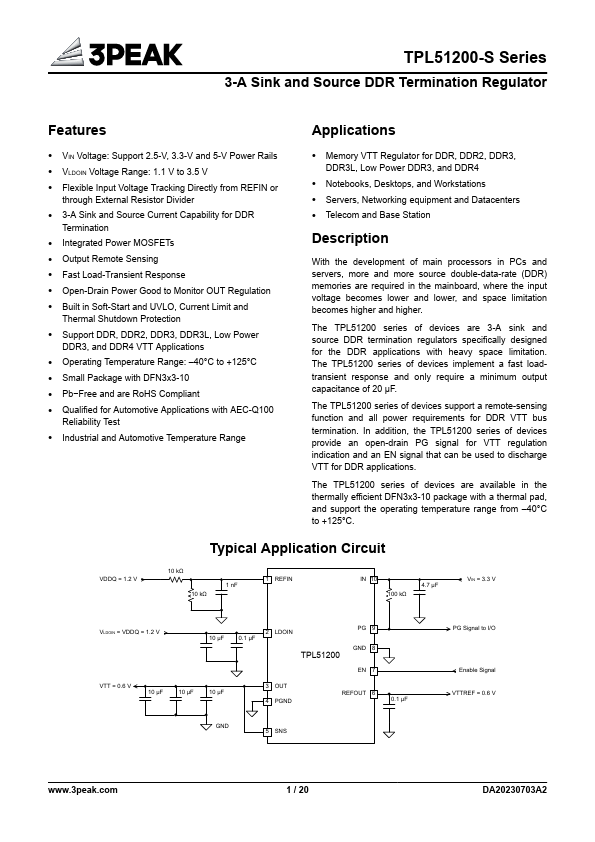

Preview of TPL51200-S PDF

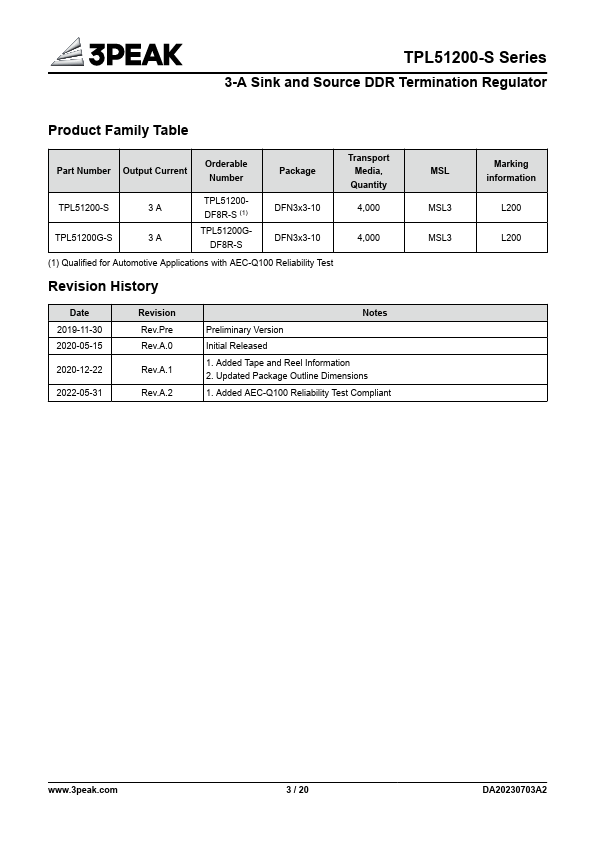

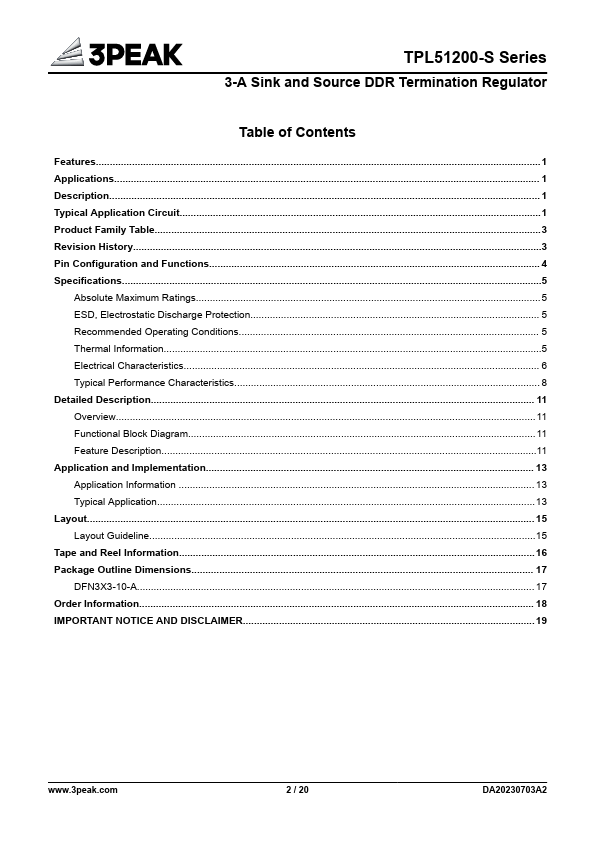

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPL51200-S
Manufacturer
3PEAK
File Size
900.13 KB
Datasheet
TPL51200-S-3PEAK.pdf
Description
3-A Sink and Source DDR Termination Regulator
