TPL5000 - Nano-Power Programmable Timer

Description

The TPL5000 is a long-term timer IC optimized for low-power applications.

The TPL5000 can replace a micro controller's (µC) internal timer, allowing the µC to stay in low-power sleep mode instead of running a timer, providing a total power consumption reduction of 60 to 80%.

Features

  • 1 Supply Voltage from1.8 V to 5.0 V.
  • Current Consumption 30 nA (typical, at 2.5 V).
  • Watchdog Functionality.
  • Reset Functionality.
  • Selectable Timer Intervals 1 to 64 s 2.

📥 Download Datasheet

📁 Similar Datasheet

  • TPL5031 - Low-Dropout Linear Regulator (3PEAK)
  • TPL51200 - 3-A Sink and Source DDR Termination Regulator (3PEAK)
  • TPL51200-S - 3-A Sink and Source DDR Termination Regulator (3PEAK)
  • TPL51201 - 3-A Sink and Source DDR Termination Regulator (3PEAK)
  • TPL51201-S - 3-A Sink and Source DDR Termination Regulator (3PEAK)
  • TPL51201G-S - 3-A Sink and Source DDR Termination Regulator (3PEAK)
  • TPL51206 - 2-A Sink and Source DDR Termination Regulator (3PEAK)
  • TPL0503S - 2W 1.5KVDC Isolated Single Output DC/DC Converters (TOPPOWER)
  • TPL0503S-3W - 3W 1.5KVDC Isolated Single Output DC/DC Converters (TOPPOWER)
  • TPL0505S - 2W 1.5KVDC Isolated Single Output DC/DC Converters (TOPPOWER)
Other Datasheets by Texas Instruments
  • TPL5010 - Nano-Power System Timer
  • TPL5100 - Nano-Power Programmable Timer
  • TPL5110 - Nano-Power System Timer
  • TPL5111 - Nano-Power System Timer
  • TPL0102 - Two 256-Taps Digital Potentiometers
  • TPL0102-EP - 256-Taps Dual-Channel Digital Potentiometer
  • TPL0202 - 256-Taps Dual Channel Digital Potentiometer
  • TPL0401A - 128-TAPS Single-Channel Digital Potentiometer

Full PDF Text Transcription

Click to expand full text

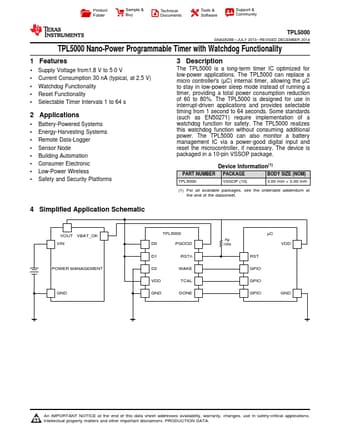

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community TPL5000 SNAS628B – JULY 2013 – REVISED DECEMBER 2014 TPL5000 Nano-Power Programmable Timer with Watchdog Functionality 1 Features •1 Supply Voltage from1.8 V to 5.0 V • Current Consumption 30 nA (typical, at 2.5 V) • Watchdog Functionality • Reset Functionality • Selectable Timer Intervals 1 to 64 s 2 Applications • Battery-Powered Systems • Energy-Harvesting Systems • Remote Data-Logger • Sensor Node • Building Automation • Consumer Electronic • Low-Power Wireless • Safety and Security Platforms 3 Description The TPL5000 is a long-term timer IC optimized for low-power applications.
