TPF111U, TPF111 SD Video Filter Driver

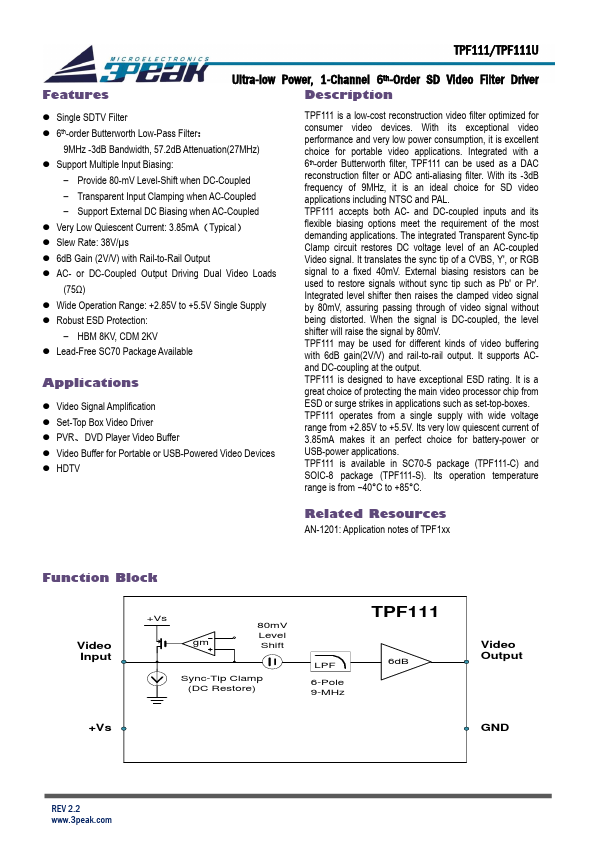

TPF111U Description

TPF111/TPF111U .
Single SDTV Filter. 6th-order Butterworth Low-Pass Filter： 9MHz -3dB Bandwidth, 57. Support Multiple Input Bia.

TPF111U Applications

* Video Signal Amplification
* Set-Top Box Video Driver
* PVR、DVD Player Video Buffer
* Video Buffer for Portable or USB-Powered Video Devices
* HDTV TPF111 is a low-cost reconstruction video filter optimized for consumer video devices. With its exceptional video performance and

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TPF111U, TPF111. Please refer to the document for exact specifications by model.

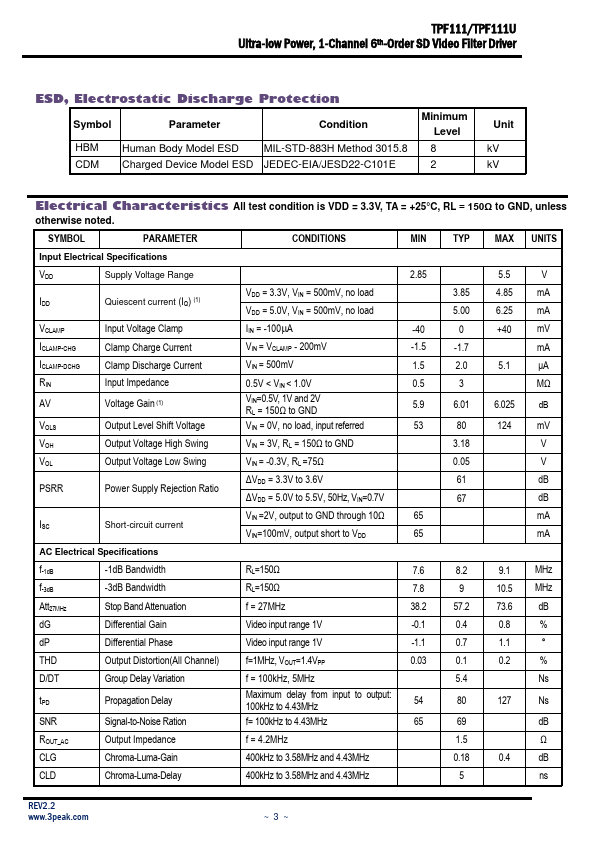

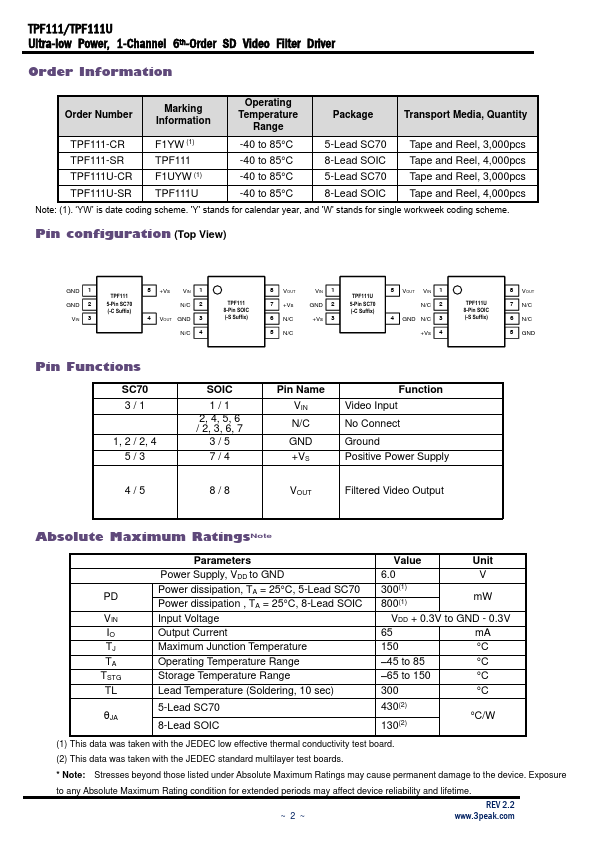

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPF111U, TPF111
Manufacturer
3PEAK
File Size
515.98 KB
Datasheet
TPF111-3PEAK.pdf
Description
SD Video Filter Driver
Note
This datasheet PDF includes multiple part numbers: TPF111U, TPF111.
Please refer to the document for exact specifications by model.
