TPF110U, TPF110 Ultra-low Power Video Filter

TPF110U Description

TPF110/TPF110U/TPF110L Ultra-low Power Video Filter with Shut-down & SAG Correction .
The TP110/TP110L is a single rail-to-rail 6th-order output reconstruction filter with a -3dB roll-off frequency of 9MHz and a slew rate of 38V/μs, wit.

TPF110U Features

* 6th-order Butterworth Low-Pass Filter
* Integrated Input Clamp And Level Shift Circuit
* SAG correction reduces AC coupling capacitor size
* High Slew Rate：38V/µ s
* Very Low Quiescent Current：TPF110 3.9mA（Typ. ）， TPF110L 1.9mA（Typ. ）
* Super Low Stand-By Mode：0.5µ A（Typ. ）

TPF110U Applications

* Video Signal Amplification
* Set-Top Box Video Driver
* PVR、DVD Player Video Buffer
* Video Buffer for Portable or USB-Powered Video Devices

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TPF110U, TPF110. Please refer to the document for exact specifications by model.

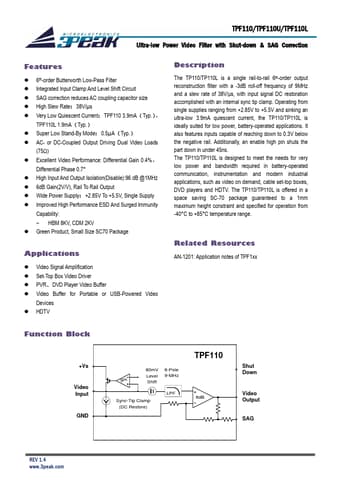

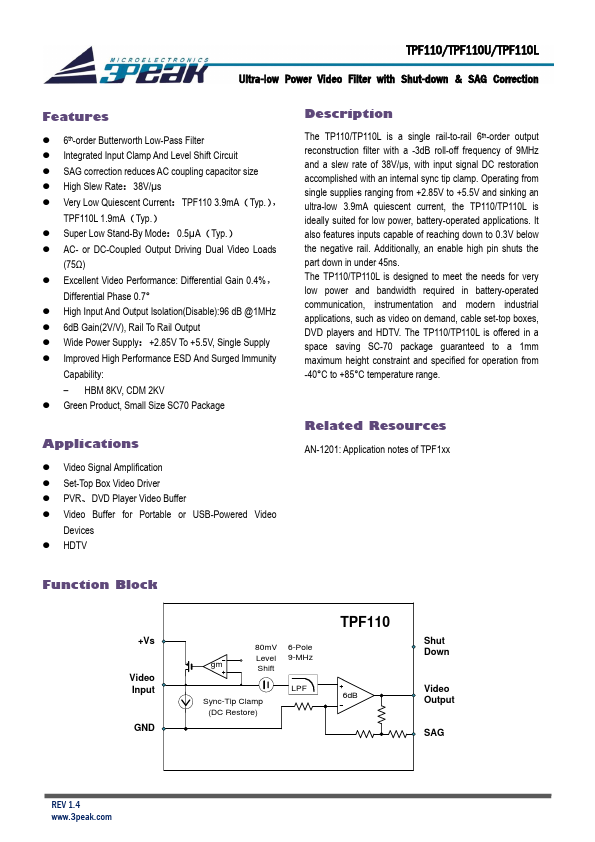

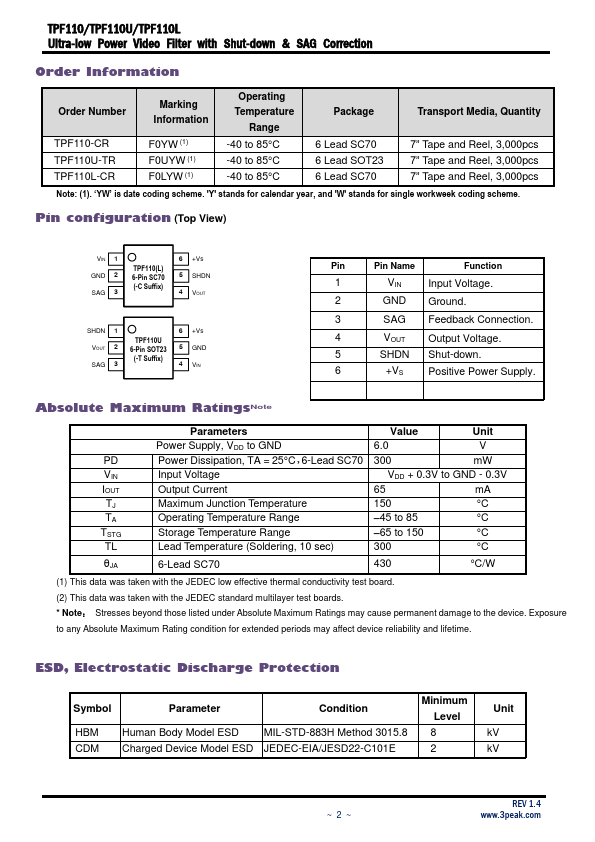

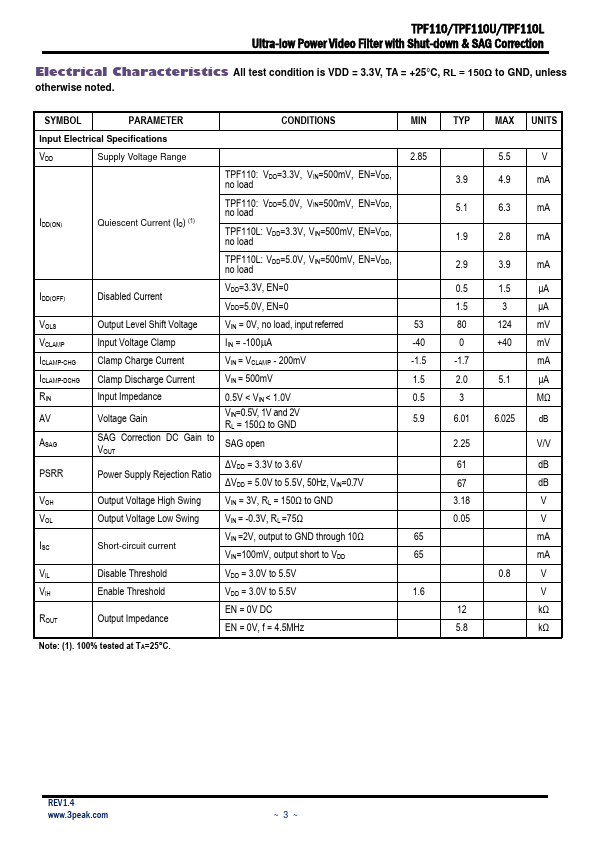

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPF110U, TPF110
Manufacturer
3PEAK
File Size
718.90 KB
Datasheet
TPF110-3PEAK.pdf
Description
Ultra-low Power Video Filter
Note
This datasheet PDF includes multiple part numbers: TPF110U, TPF110.
Please refer to the document for exact specifications by model.
