SN65LVDS308 datasheet, receiver equivalent, Texas Instruments

SN65LVDS308 receiver equivalent, programmable 27-bit parallel-to-serial receiver.

Avg. rating / M : 1.0 rating-1

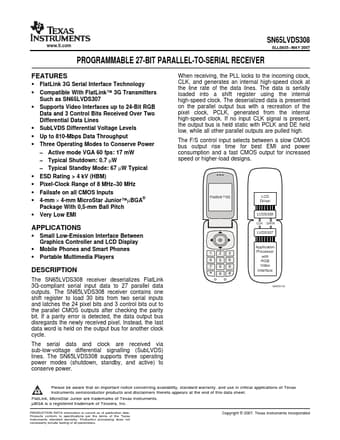

datasheet Download (Size : 1.75MB)

Features and benefits

* FlatLink 3G Serial Interface Technology
* Compatible With FlatLink™ 3G Transmitters Such as SN65LVDS307
* Supports Video Interfaces up to 24-Bit RGB Data an.

Application

* Small Low-Emission Interface Between Graphics Controller and LCD Display
* Mobile Phones and Smart Phones
.

Description

The SN65LVDS308 receiver deserializes FlatLink 3G-compliant serial input data to 27 parallel data outputs. The SN65LVDS308 receiver contains one shift register to load 30 bits from two serial inputs and latches the 24 pixel bits and 3 control bits ou.
