SN65LVDS307 Datasheet, Texas Instruments

SN65LVDS307 transmitter equivalent, programmable 27-bit parallel-to-serial transmitter.

SN65LVDS307 Avg. rating / M : 1.0 rating-11

datasheet Download

SN65LVDS307 Datasheet

Features and benefits


* FlatLink™ 3G Serial-Interface Technology
* Compatible With FlatLink™3G Receivers Such as SN65LVDS308
* Input Supports Video Interfaces up to 24-Bit RGB Data.

Application


* Host-Controller to Display-Module Interface
* Mobile Phones and Smart Phones
* Portable Multimedia Players.

Description

The SN65LVDS307 serializer device converts 27 parallel data inputs to one or two sub-low-voltage differential signaling (SubLVDS) serial outputs. It loads a shift register with 24 pixel bits and 3 control bits from the parallel CMOS input interface. .

Image gallery

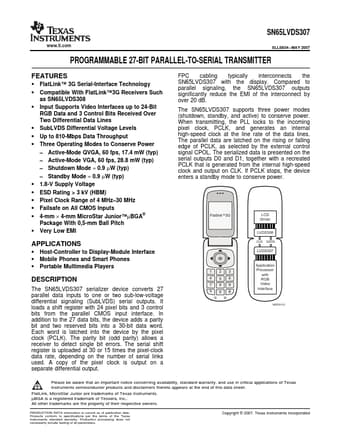

SN65LVDS307 Page 1 SN65LVDS307 Page 2 SN65LVDS307 Page 3
