HM8N60 Datasheet - H&M Semiconductor

HM8N60 600V N-Channel MOSFET

This Power MOSFET is produced using SL semi‘s advanced planar stripe DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices ar.

HM8N60 Features

* 7.5A, 600V, RDS(on) = 1.20Ω @VGS = 10 V

* Low gate charge ( typical 29nC)

* High ruggedness

* Fast switching

* 100% avalanche tested

* Improved dv/dt capability {D GDS TO-220 GD S TO-220F

* ◀▲ {G

* {S Absolute Maximum Rating

HM8N60 Datasheet (303.53 KB)

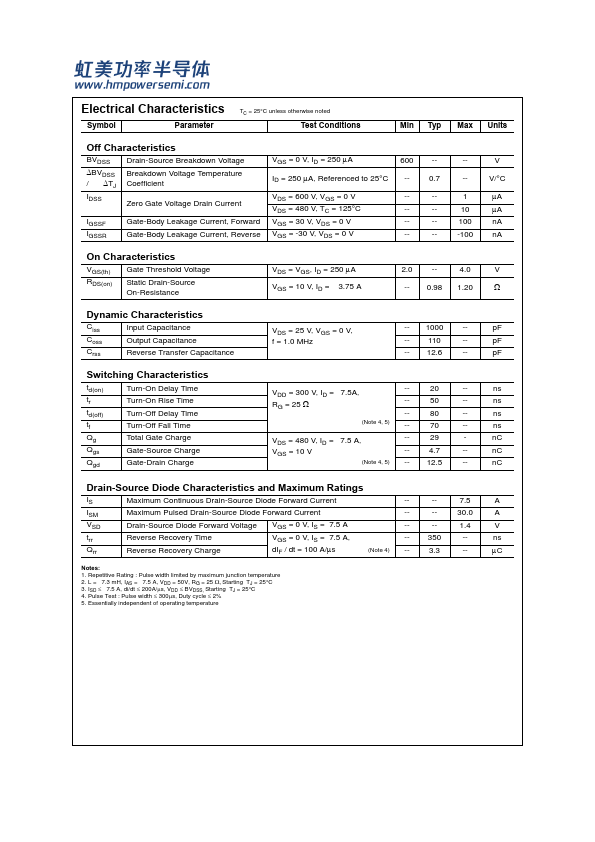

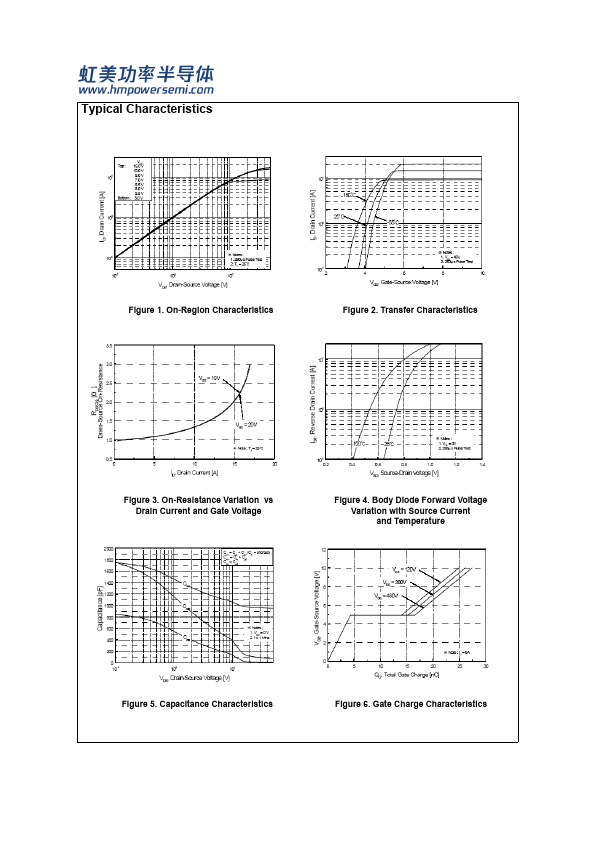

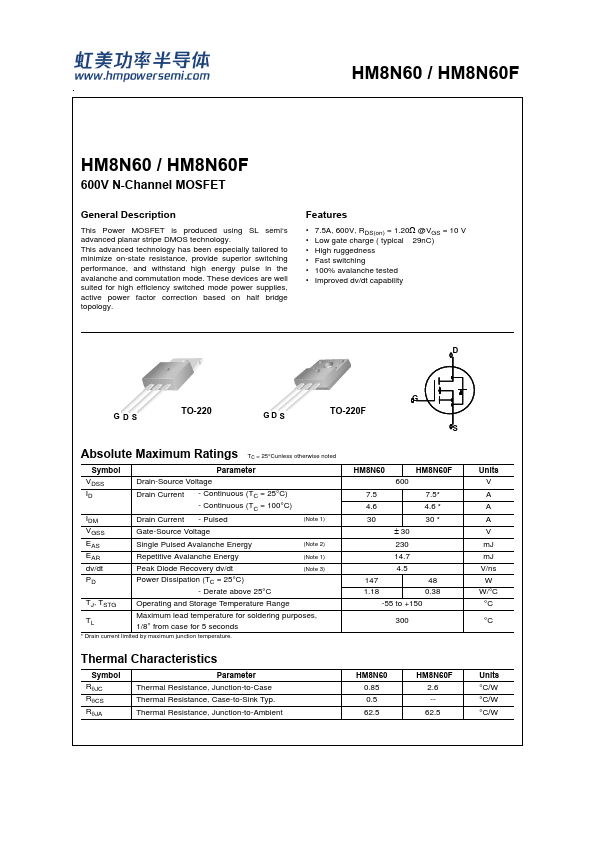

HM8N60 Datasheet Preview — Preview of HM8N60 PDF

Datasheet Details

Part number:

HM8N60

Manufacturer:

H&M Semiconductor

File Size:

303.53 KB

Description:

600v n-channel mosfet.
