HM4924 Datasheet - H&M Semiconductor

HM4924 40V Full-Bridge of MOSFET

HM4924 Features

* N-channel： VDS =40V,ID =10A RDS(ON)=22mΩ (typical) @ VGS=4.5V RDS(ON)=17mΩ (typical) @ VGS=10V P-Channel： VDS =-40V,ID =-6A RDS(ON)=65mΩ (typical) @ VGS=-4.5V RDS(ON)=45mΩ (typical) @ VGS=-10V

* Excellent gate charge x RDS(ON) product(FOM)

* Very low on-resistance RDS(ON)

* 150 °C

HM4924 Datasheet (1.19 MB)

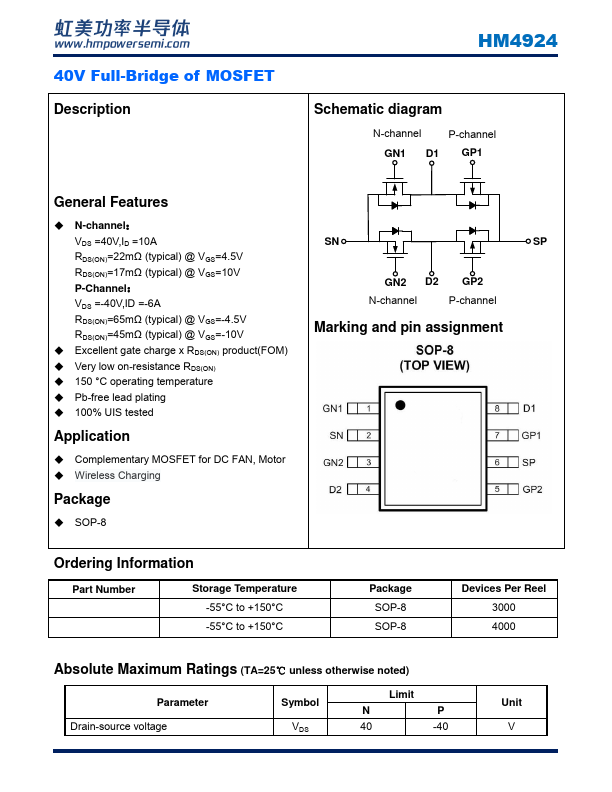

Preview of HM4924 PDF

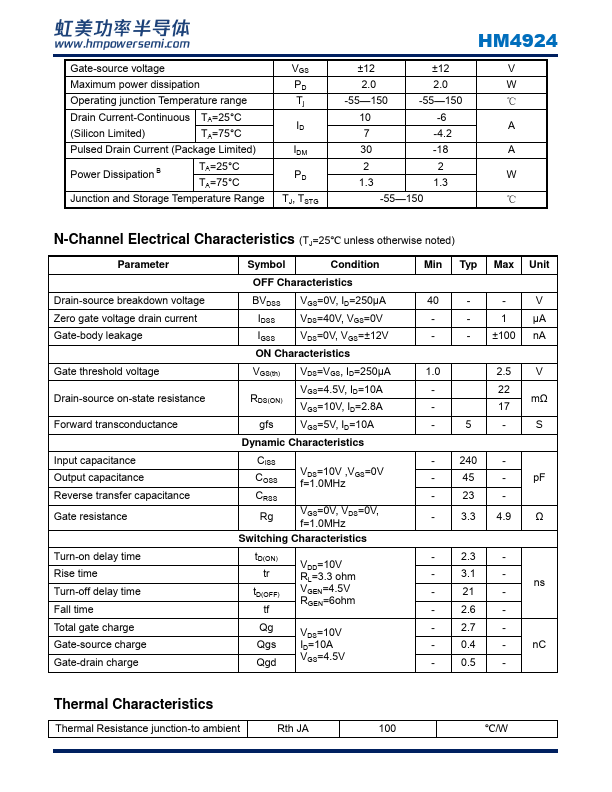

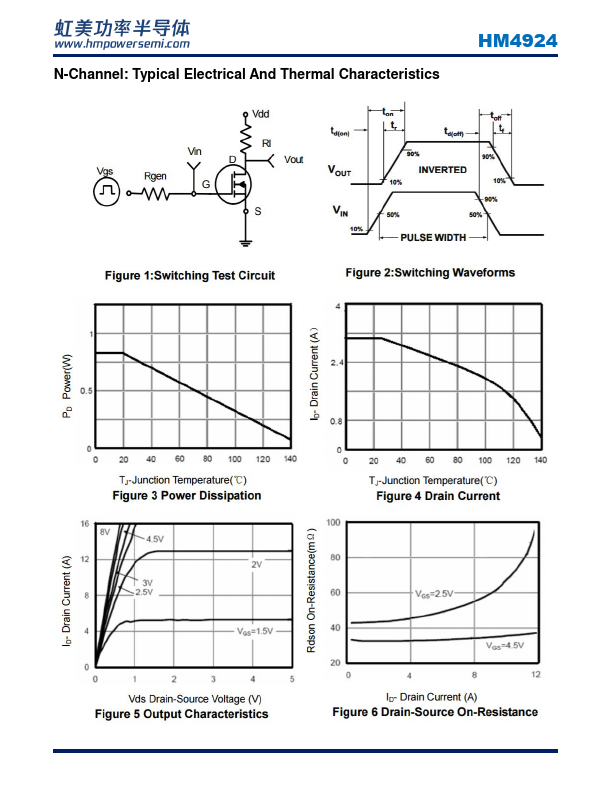

HM4924 Datasheet Preview Page 2 HM4924 Datasheet Preview Page 3

Datasheet Details

Part number:

HM4924

Manufacturer:

H&M Semiconductor

File Size:

1.19 MB

Description:

40v full-bridge of mosfet.
