HM4923 Datasheet - H&M Semiconductor

HM4923 30V Full-Bridge of MOSFET

HM4923 Features

* N-channel： VDS =30V,ID =12A RDS(ON)=14mΩ (typical) @ VGS=4.5V RDS(ON)=12mΩ (typical) @ VGS=10V P-Channel： VDS =-30V,ID =-8A RDS(ON)=mΩ (typical) @ VGS=-4.5V RDS(ON)=mΩ (typical) @ VGS=-V

* Excellent gate charge x RDS(ON) product(FOM)

* Very low on-resistance RDS(ON)

* 150 °C

HM4923 Datasheet (1.21 MB)

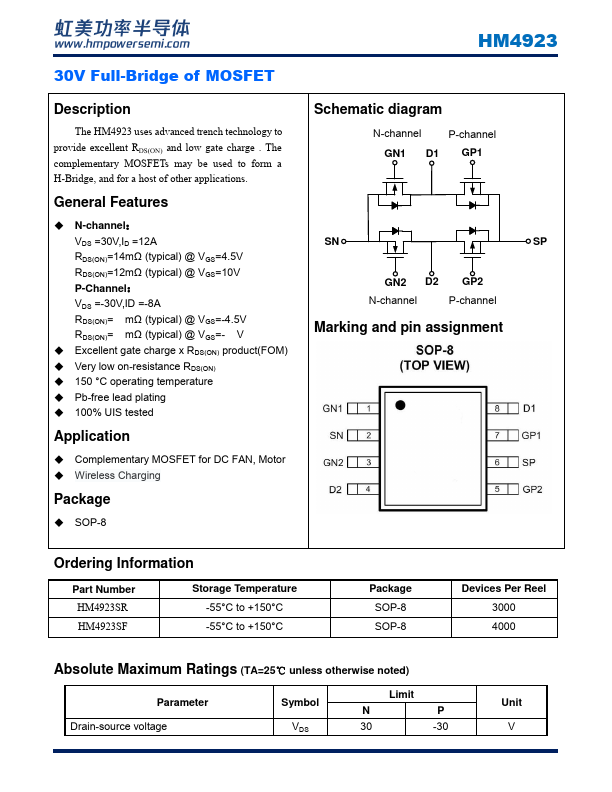

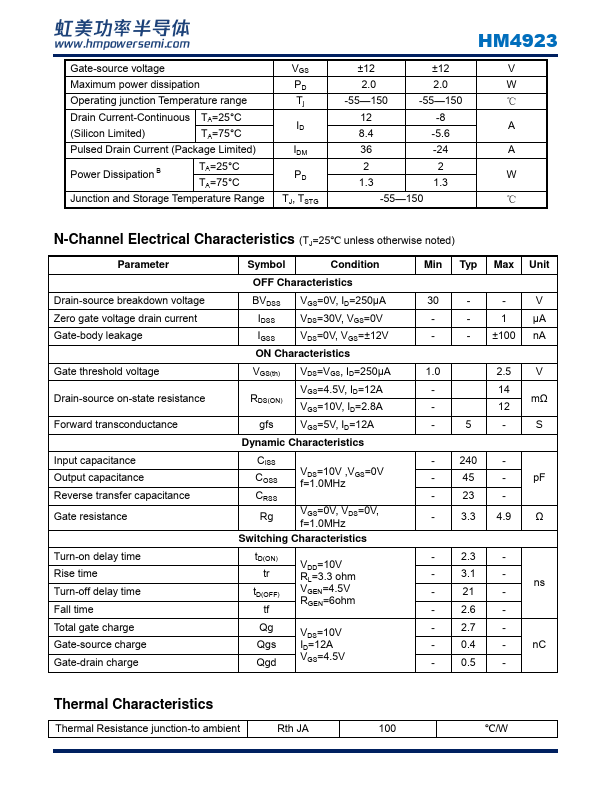

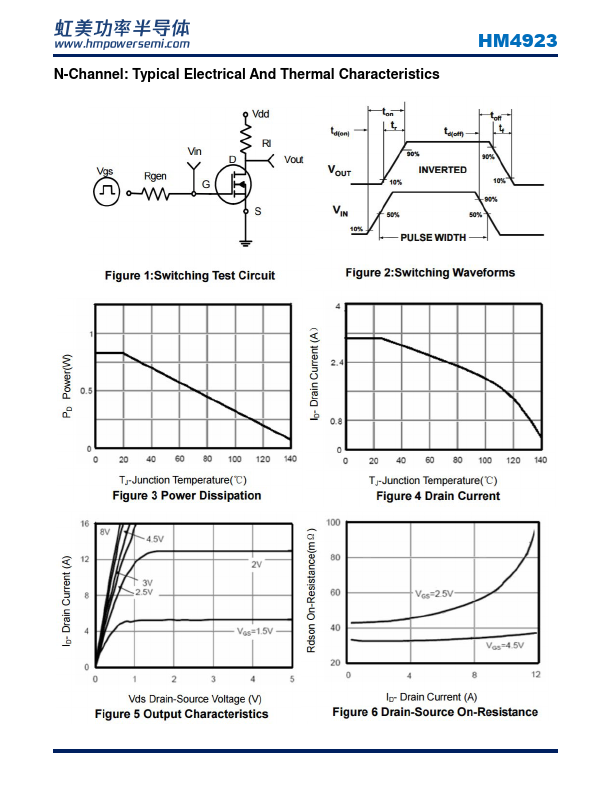

HM4923 Datasheet Preview — Preview of HM4923 PDF

Datasheet Details

Part number:

HM4923

Manufacturer:

H&M Semiconductor

File Size:

1.21 MB

Description:

30v full-bridge of mosfet.
