PMBT4403 - PNP switching transistor

Description

PNP switching transistor in a small SOT23 Surface-Mounted Device (SMD) plastic package.

2.

Features

  • High current (max. 600 mA).
  • Collector-emitter voltage VCEO = 40 V.
  • AEC-Q101 qualified 3.

📥 Download Datasheet

Datasheet Details

Part number PMBT4403
Manufacturer nexperia
File Size 222.10 KB
Description PNP switching transistor
Datasheet download datasheet PMBT4403 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PMBT4403 PNP switching transistor Philips
PMBT4401 NPN switching transistor Philips
PMBT4401 NPN switching transistor NXP
PMBT2222 NPN switching transistors Philips
PMBT2222A NPN switching transistors Philips

Other Datasheets by nexperia

Part Number Description
PMBT4403YS 600mA double PNP switching transistor
PMBT4401 NPN switching transistor
PMBT4401YS double NPN switching transistor
PMBT2222 NPN switching transistors
PMBT2222A NPN switching transistors

Full PDF Text Transcription

Click to expand full text

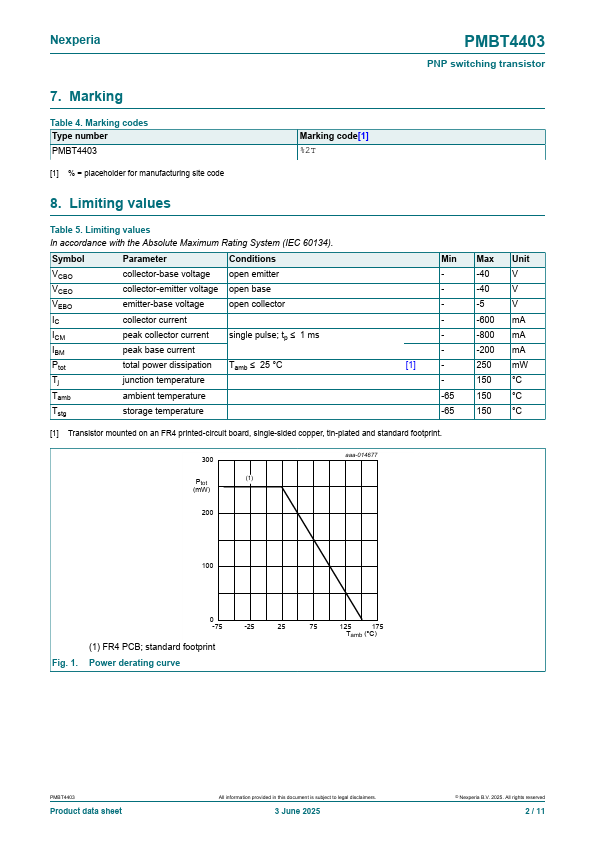

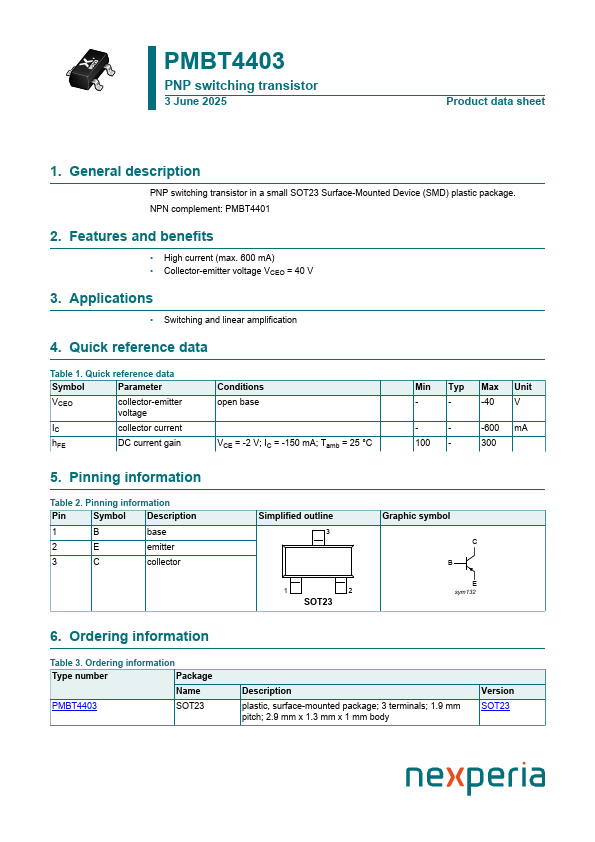

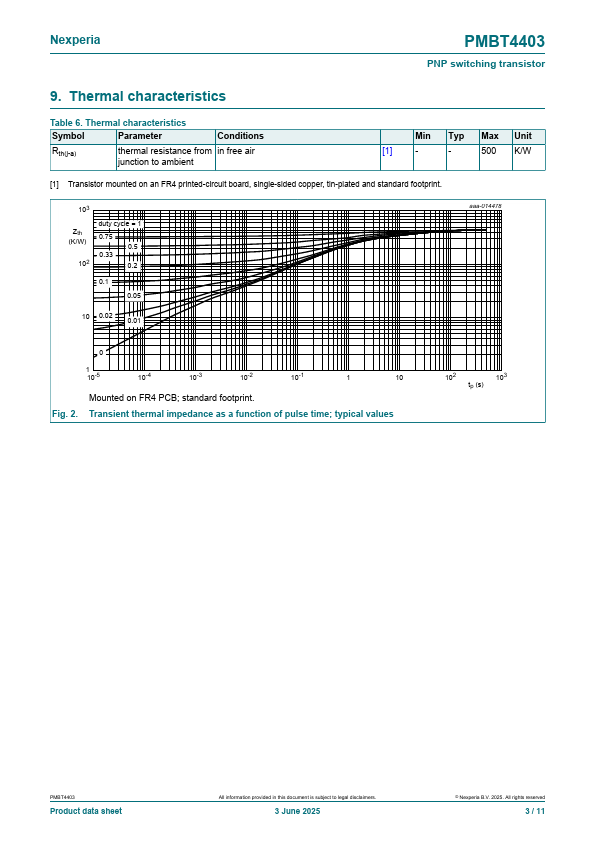

PMBT4403 PNP switching transistor 12 November 2024 Product data sheet 1. General description PNP switching transistor in a small SOT23 Surface-Mounted Device (SMD) plastic package. NPN complement: PMBT4401 2. Features and benefits • High current (max. 600 mA) • Collector-emitter voltage VCEO = 40 V • AEC-Q101 qualified 3. Applications • Switching and linear amplification 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCEO collector-emitter voltage IC collector current hFE DC current gain Conditions open base VCE = -2 V; IC = -150 mA; Tamb = 25 °C Min Typ Max Unit - - -40 V - - 100 - -600 mA 300 5. Pinning information Table 2.
