MSPM0G3506 - Mixed-Signal Microcontrollers

Product Overview

Texas Instruments

Datasheet Details

Part number	MSPM0G3506
Manufacturer	Texas Instruments
File Size	4.01 MB
Description	Mixed-Signal Microcontrollers
Datasheet	MSPM0G3506 Datasheet
Note	This datasheet PDF includes multiple part numbers: MSPM0G3506, MSPM0G3507. Please refer to the document for exact specifications by model.

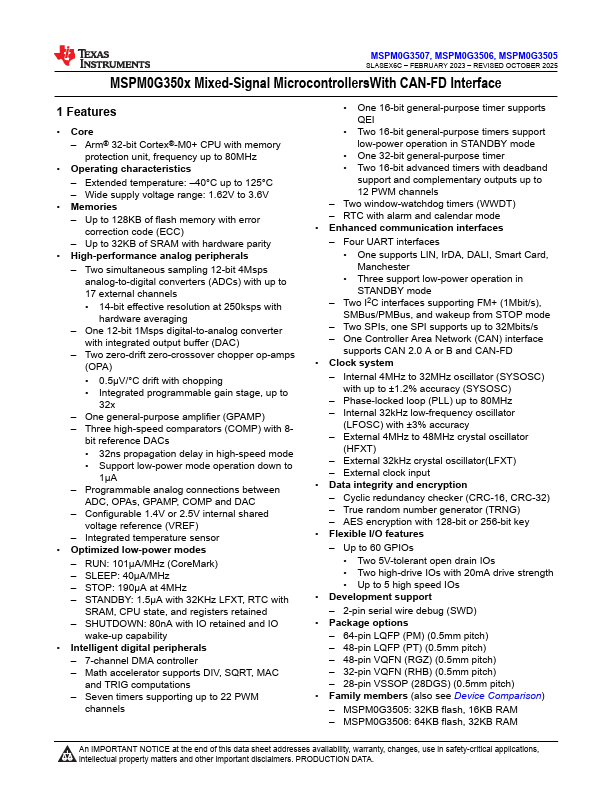

Additional preview pages of the MSPM0G3506 datasheet.

Product details

Description

MSPM0G350x microcontrollers (MCUs) are part of the MSP highly integrated, ultra-low-power 32-bit MCU family based on the enhanced Arm® Cortex®-M0+ 32-bit core platform operating at up to 80-MHz frequency.

Features

Core.
Arm® 32-bit Cortex®-M0+ CPU with memory protection unit, frequency up to 80 MHz.
Operating characteristics.
Extended temperature:.
40°C up to 125°C.
Wide supply voltage range: 1.62 V to 3.6 V.
Memories.
Up to 128KB of flash memory with error correction code (ECC).
Up to 32KB of SRAM with hardware parity.
High-performance analog peripherals.
Two simultaneous sampling 12-bit 4-Msps analog-to-di.
