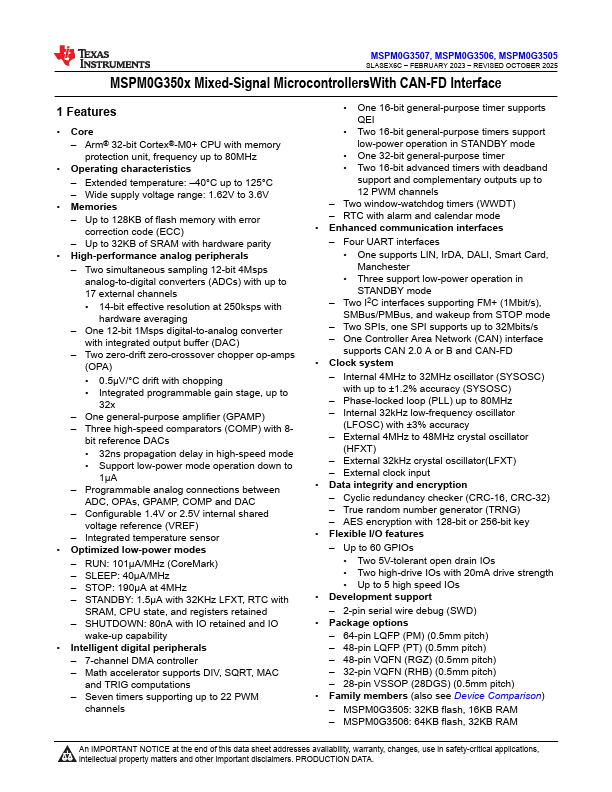

MSPM0G3505
Features
- Core
- Arm® 32-bit Cortex®-M0+ CPU with memory protection unit, frequency up to 80MHz
- Operating characteristics
- Extended temperature:
- 40°C up to 125°C
- Wide supply voltage range: 1.62V to 3.6V
- Memories
- Up to 128KB of flash memory with error correction code (ECC)
- Up to 32KB of SRAM with hardware parity
- High-performance analog peripherals
- Two simultaneous sampling 12-bit 4Msps analog-to-digital converters (ADCs) with up to 17 external channels
- 14-bit effective resolution at 250ksps with hardware averaging
- One 12-bit 1Msps digital-to-analog converter with integrated output buffer (DAC)
- Two zero-drift zero-crossover chopper op-amps (OPA)
- 0.5µV/°C drift with chopping
- Integrated programmable gain stage, up to
32x
- One general-purpose amplifier (GPAMP)
- Three high-speed parators (P) with 8- bit reference DACs
- 32ns propagation delay in high-speed mode
- Support low-power mode operation down to
1µA
- Programmable analog connections between
ADC, OPAs,...
