XL3007 - 1.5A 220KHz 65V Buck LED Constant Current Driver

Description

The XL3007 is a 220KHz fixed frequency PWM buck LED constant current driver, capable of driving a 1.5A load with high efficiency, low ripple and excellent line and load regulation.

XL3007 supports wide input operating voltage range of 8V ~ 60V and a maximum duty cycle of 100% output.

Features

  • Operation Voltage：8V~60V.
  • 0.21V Constant Current Sense Voltage.
  • Directly drive 1~12 Series 1W LED.
  • Current Sense Voltage Accuracy ±3%.
  • Fixed 220KHz Switching Frequency.
  • 1.5A Constant Output Current Capability.
  • Internal Optimize Power MOSFET.
  • High efficiency up to 95%.
  • Max. Output power up to 12W.
  • Maximum Duty Cycle 100%.
  • Excellent line and load regulation.
  • Built in thermal shutdown function.
  • Built in current limit protection funct.

📥 Download Datasheet

Datasheet Details

Part number XL3007
Manufacturer XLSEMI
File Size 476.81 KB
Description 1.5A 220KHz 65V Buck LED Constant Current Driver
Datasheet download datasheet XL3007 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
XL33035 Brushless DC Motor Controller XINLUDA
XL33290 ISO K-Line Serial Link Interface XINLUDA
XL385 Voltage Regulator Diodes XINLUDA

Other Datasheets by XLSEMI

Part Number Description
XL3001 3A 220KHz 40V Buck LED Constant Current Driver
XL3002 1.5A 260KHz 32V Buck LED Constant Current Driver
XL3003 4A 220KHz 36V Buck LED Constant Current Driver
XL3005 5A 220KHz 36V Buck LED Constant Current Driver

Full PDF Text Transcription

Click to expand full text

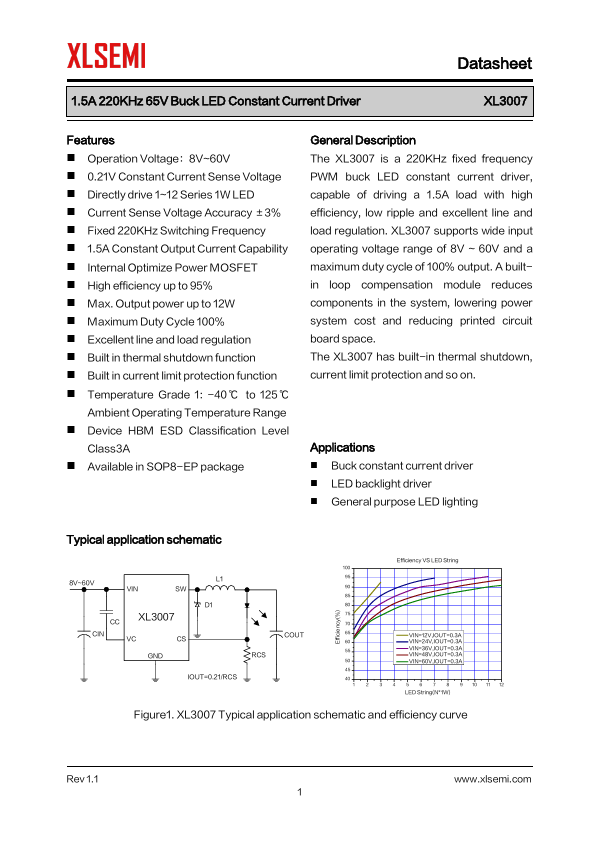

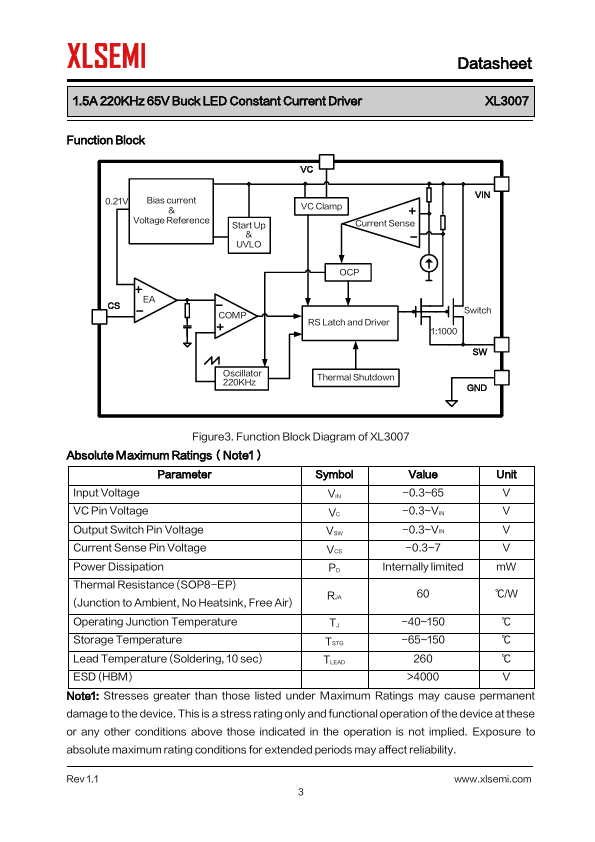

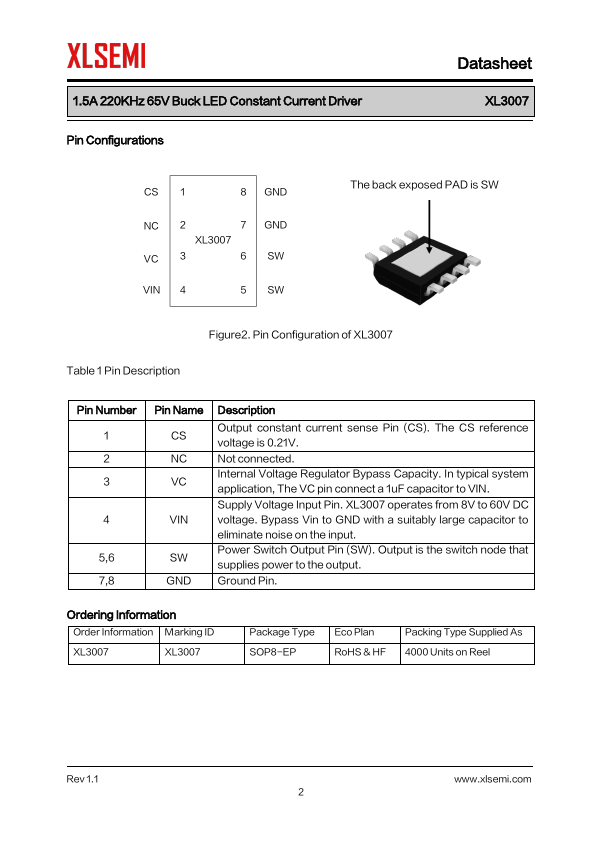

Datasheet 1.5A 220KHz 65V Buck LED Constant Current Driver XL3007 Features  Operation Voltage：8V~60V  0.21V Constant Current Sense Voltage  Directly drive 1~12 Series 1W LED  Current Sense Voltage Accuracy ±3%  Fixed 220KHz Switching Frequency  1.5A Constant Output Current Capability  Internal Optimize Power MOSFET  High efficiency up to 95%  Max.
