XL3005 - 5A 220KHz 36V Buck LED Constant Current Driver

Description

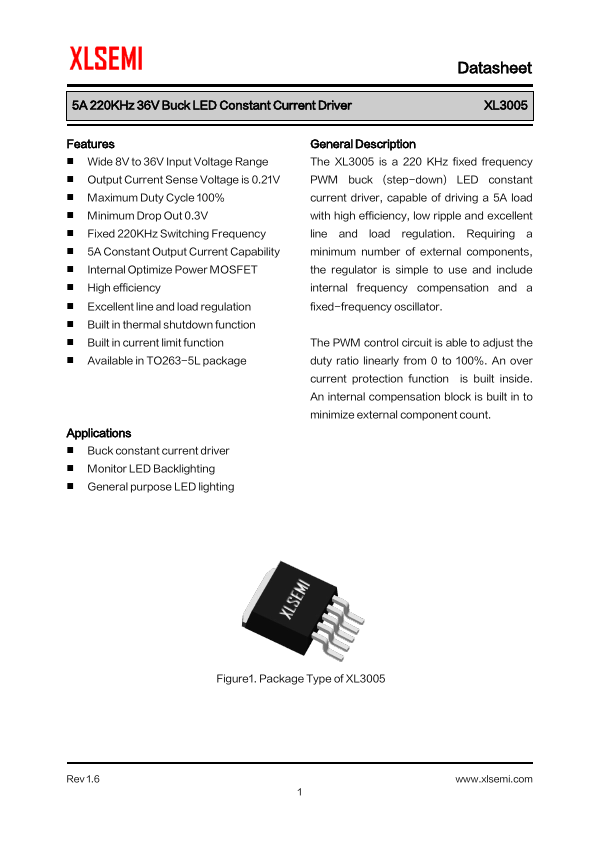

The XL3005 is a 220 KHz fixed frequency PWM buck (step-down) LED constant current driver, capable of driving a 5A load with high efficiency, low ripple and excellent line and load regulation.

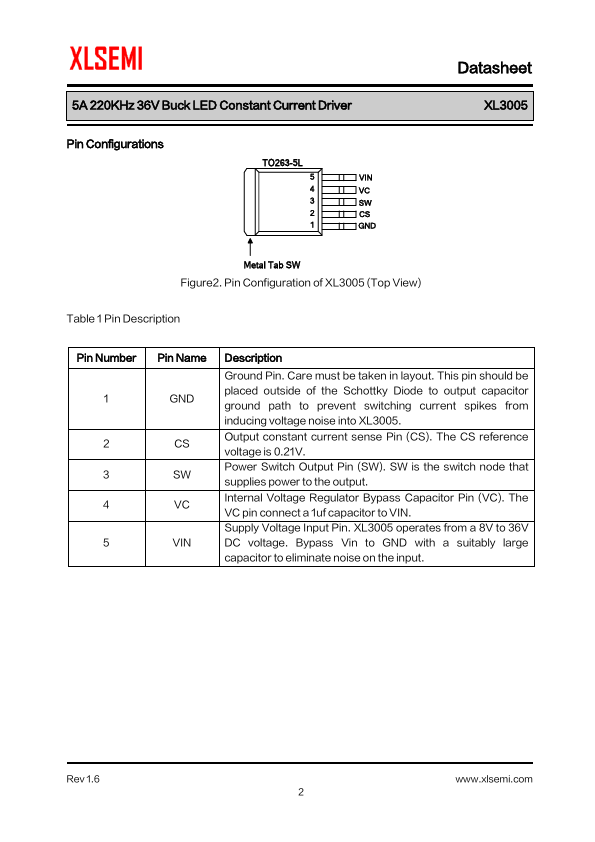

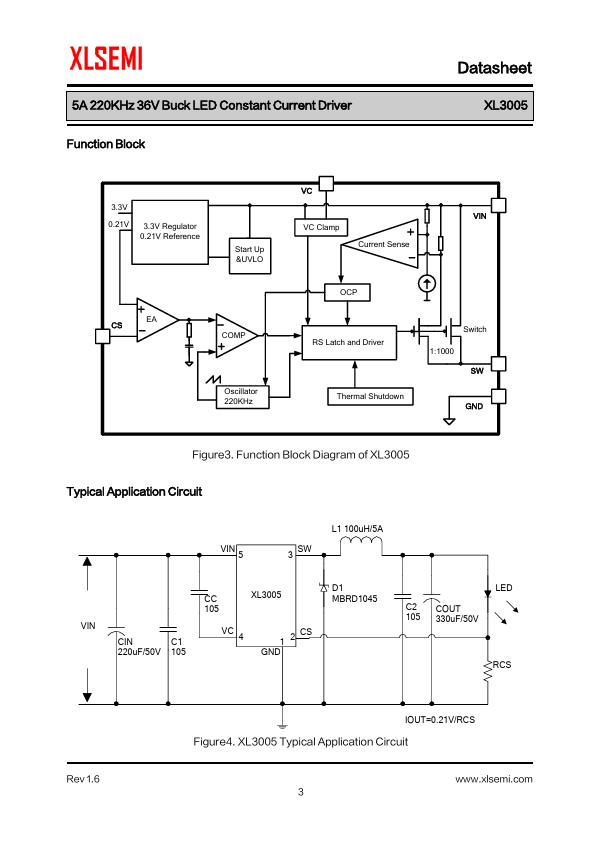

Features

  • n Wide 8V to 36V Input Voltage Range n Output Current Sence Voltage is 0.21V n Maximum Duty Cycle 100% n Minimum Drop Out 0.3V n Fixed 220KHz Switching Frequency n 5A Constant Output Current Capability n Internal Optimize Power MOSFET n High efficiency n Excellent line and load regulation n Built in thermal shutdown function n Built in current limit function n Built in output short protection function n Available in TO-263 package.

📥 Download Datasheet

Datasheet Details

Part number XL3005
Manufacturer XLSEMI
File Size 341.54 KB
Description 5A 220KHz 36V Buck LED Constant Current Driver
Datasheet download datasheet XL3005 Datasheet
