NDT456P - 35V P-ChanneI MOSFET

VBsemi

Key Features

Halogen-free According to IEC 61249-2-21 Definition.
Trench Power MOSFET.
100 % Rg Tested.
100 % UIS Tested.
Compliant to RoHS Directive 2002/95/EC.

NDT456P 35v p-channei mosfet by VBsemi - Datasheet Preview

Datasheet Details

Part number	NDT456P
Manufacturer	VBsemi
File Size	256.27 KB
Description	35V P-ChanneI MOSFET
Datasheet	NDT456P Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
NDT456P	P-Channel Enhancement Mode Field Effect Transistor	Fairchild
NDT456P	-30V P-ChanneI MOSFET	UMW
NDT451AN	N-Channel MOSFET	Fairchild
NDT451N	N-Channel MOSFET	Fairchild
NDT452AP	P-Channel MOSFET	Fairchild

Other Datasheets by VBsemi

Part Number	Description
NDT451N	30V N-Channel MOSFET
NDT452P	35V P-ChanneI MOSFET
NDT014	N-Channel MOSFET
NDT2955	P-Channel 60V MOSFET
NDT3055L	N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

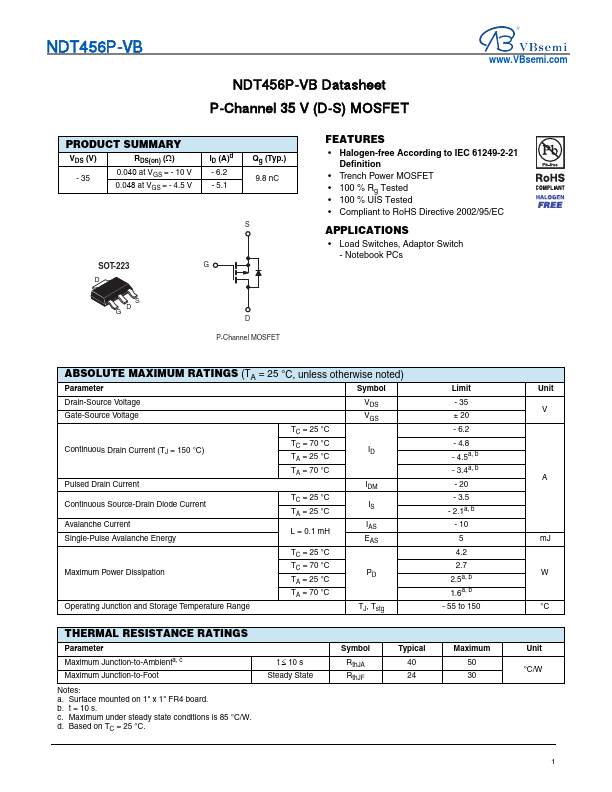

NDT456P-VB NDT456P-VB Datasheet P-Channel 35 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) - 35 RDS(on) () 0.040 at VGS = - 10 V 0.048 at VGS = - 4.5 V ID (A)d - 6.2 - 5.1 Qg (Typ.) 9.
