NDT452AP - -30V P-ChanneI MOSFET

General Description

Power SOT-223 P-Channel enhancement mode power field effect transistors especially tailored to minimize on state resistance and provide superior switching performance.

2.

Key Features

  • VDS (V)=-30V ID=-5A RDS(ON).

📥 Download Datasheet

Datasheet Details

Part number NDT452AP
Manufacturer UMW
File Size 220.96 KB
Description -30V P-ChanneI MOSFET
Datasheet download datasheet NDT452AP Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NDT452AP P-Channel MOSFET Fairchild
NDT452P P-Channel Enhancement Mode Field Effect Transistor Fairchild
NDT452P 35V P-ChanneI MOSFET VBsemi
NDT451AN N-Channel MOSFET Fairchild
NDT451N N-Channel MOSFET Fairchild

Other Datasheets by UMW

Part Number Description
NDT456P -30V P-ChanneI MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

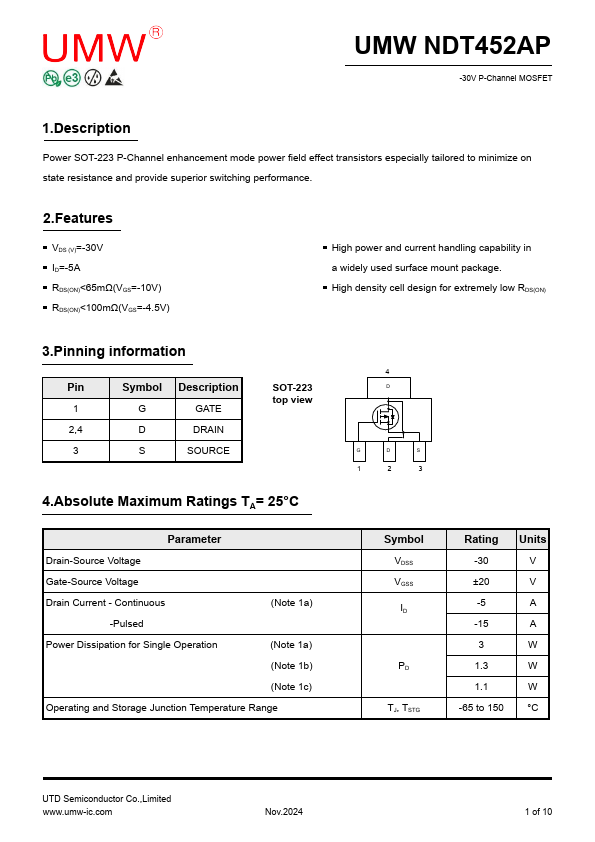

UMW NDT452AP -30V P-ChanneI MOSFET 1.Description Power SOT-223 P-Channel enhancement mode power field effect transistors especially tailored to minimize on state resistance and provide superior switching performance. 2.Features VDS (V)=-30V ID=-5A RDS(ON)<65mΩ(VGS=-10V) RDS(ON)<100mΩ(VGS=-4.5V) High power and current handling capability in a widely used surface mount package. High density cell design for extremely low RDS(ON) 3.Pinning information Pin Symbol Description 1 G GATE 2,4 D DRAIN 3 S SOURCE SOT-223 top view 4.
