XC6503 - High Speed LDO Regulator

Description

The XC6503 series is a 500mA high speed CMOS LDO regulator that can provide stable output voltages even without a load capacitor CL.

Features

  • Maximum Output Current : 500mA Input Voltage Range : 1.7V ~ 6.0V Output Voltage Range : 1.2V ~ 5.0V (0.05V increments) Output Accuracy : ±1.0% (2.0V ~ 5.0V) ±20mV (1.2V ~ 1.95V) Temperature Stability : ±30ppm/℃ Dropout Voltage Low Power Consumption : 190mV＠VOUT=2.8V, IOUT =300mA : 15μA (TYP. ), 0.1μA (in standby) High PSRR Protection Current : 55dB＠1kHz, VOUT=2.8V : Current Limiter (630mA TYP. ) Short-circuit Protection Thermal Shutdown CL Capacitor-Less Operating Ambient Tempera.

📥 Download Datasheet

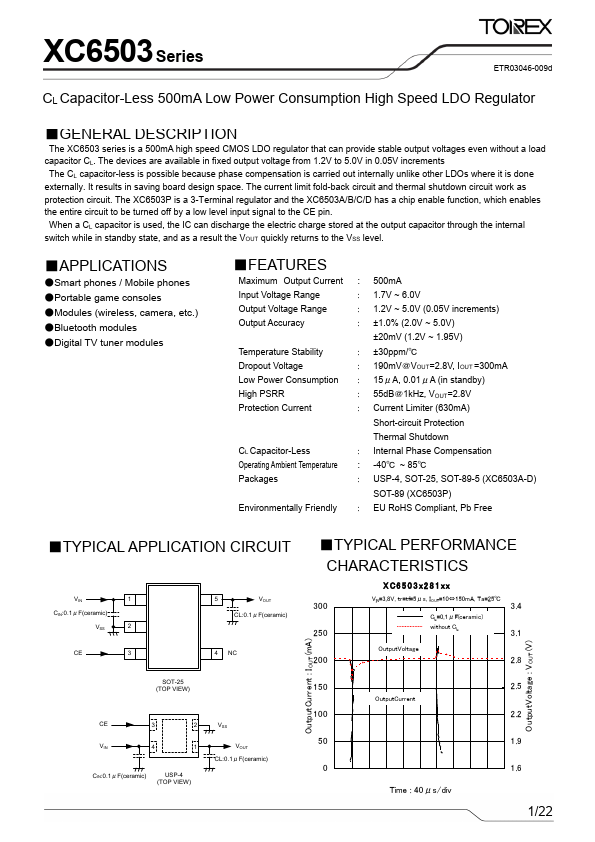

Datasheet preview – XC6503

Datasheet Details

Part number XC6503
Manufacturer Torex
File Size 842.87 KB
Description High Speed LDO Regulator
Datasheet download datasheet XC6503 Datasheet
Additional preview pages of the XC6503 datasheet.

📁 Similar Datasheet

  • XC6501 - High Speed LDO Regulator (Torex Semiconductor)
  • XC6501A - High Speed LDO Regulator (Torex Semiconductor)
  • XC6501B - High Speed LDO Regulator (Torex Semiconductor)
  • XC6501C - High Speed LDO Regulator (Torex Semiconductor)
  • XC6501D - High Speed LDO Regulator (Torex Semiconductor)
  • XC6501P - High Speed LDO Regulator (Torex Semiconductor)
  • XC6504 - Ultra Low Power Consumption Small Voltage Regulator (Torex Semiconductor)
  • XC6506 - Ultra-Low Supply Current Voltage Regulator (Torex Semiconductor)
  • XC651A - CMOS Low Power Consumption (Torex Semiconductor)
  • XC610 - high performance and highly integrated SoC (XinChip)
Other Datasheets by Torex
  • XC6505 - High Speed 200mA LDO Regulator
  • XC6119 - Voltage Detector
  • XC6126 - Single Voltage Detector
  • XC6127 - Ultra Small Voltage Detector
  • XC6129 - Voltage Detector
  • XC6132 - Delay capacitor adjustable voltage detector
  • XC6133 - Delay capacitor adjustable voltage detector
  • XC6134 - Delay capacitor adjustable voltage detector

Full PDF Text Transcription

Click to expand full text
XC6503 Series ETR03046-009b CL Capacitor-Less 500mA Low Power Consumption High Speed LDO Regulator ■GENERAL DESCRIPTION The XC6503 series is a 500mA high speed CMOS LDO regulator that can provide stable output voltages even without a load capacitor CL. The devices are available in fixed output voltage from 1.2V to 5.0V in 0.05V increments The CL capacitor-less is possible because phase compensation is carried out internally unlike other LDOs where it is done externally. It results in saving board design space. The current limit fold-back circuit and thermal shutdown circuit work as protection circuit. The XC6503P is a 3-Terminal regulator and the XC6503A/B/C/D has a chip enable function, which enables the entire circuit to be turned off by a low level input signal to the CE pin.
