XC6501 - High Speed LDO Regulator

Description

The XC6501 series is a high speed, low noise CMOS LDO regulator that can provide stable output voltages even without a load capacitor CL.

This is possible because phase compensation is carried out internally unlike other LDOs where it is done externally.

Features

  • Maximum Output Current : 200mA Operating Voltage Range Output Voltage Range Dropout Voltage Low Power Supply Stand-by Current : 1.4V ~ 6.0V 2.0V ~ 5.0V (±1%) (.
  • 1) : 1.2V ~ 1.95V (±0.02V) (.
  • 1) : 150mV＠IOUT=100mA, VOUT=2.8V : 13μA ＠VOUT=2.8V : Less than 0.1μA Ripple Rejection Protection Circuits : 50dB＠f=1kHz,VOUT=2.8V : Current limit (300mA, TYP. ) Short circuit protection CL High Speed Auto-Discharge Output capacitor is not required : Internal phase compensation CL High Speed Au.

📥 Download Datasheet

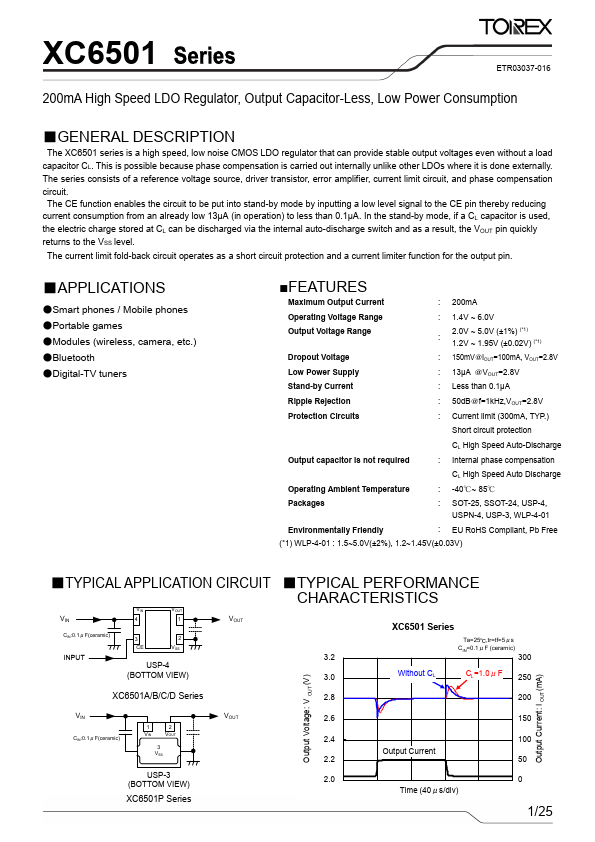

Datasheet preview – XC6501

Datasheet Details

Part number XC6501
Manufacturer Torex Semiconductor
File Size 1.05 MB
Description High Speed LDO Regulator
Datasheet download datasheet XC6501 Datasheet
Additional preview pages of the XC6501 datasheet.

📁 Similar Datasheet

  • XC6503 - High Speed LDO Regulator (Torex)
  • XC6505 - High Speed 200mA LDO Regulator (Torex)
  • XC610 - high performance and highly integrated SoC (XinChip)
  • XC6119 - Voltage Detector (Torex)
  • XC6126 - Single Voltage Detector (Torex)
  • XC6127 - Ultra Small Voltage Detector (Torex)
  • XC6129 - Voltage Detector (Torex)
  • XC6132 - Delay capacitor adjustable voltage detector (Torex)
  • XC6133 - Delay capacitor adjustable voltage detector (Torex)
  • XC6134 - Delay capacitor adjustable voltage detector (Torex)
Other Datasheets by Torex Semiconductor
  • XC6501A - High Speed LDO Regulator
  • XC6501B - High Speed LDO Regulator
  • XC6501C - High Speed LDO Regulator
  • XC6501D - High Speed LDO Regulator
  • XC6501P - High Speed LDO Regulator
  • XC6504 - Ultra Low Power Consumption Small Voltage Regulator
  • XC6506 - Ultra-Low Supply Current Voltage Regulator
  • XC651A - CMOS Low Power Consumption

Full PDF Text Transcription

Click to expand full text
XC6501 ETR03037-014b 200mA High Speed LDO Regulator, Output Capacitor-Less, Low Power Consumption ■GENERAL DESCRIPTION The XC6501 series is a high speed, low noise CMOS LDO regulator that can provide stable output voltages even without a load capacitor CL. This is possible because phase compensation is carried out internally unlike other LDOs where it is done externally. The series consists of a reference voltage source, driver transistor, error amplifier, current limit circuit, and phase compensation circuit. The CE function enables the circuit to be put into stand-by mode by inputting a low level signal to the CE pin thereby reducing current consumption from an already low 13μA (in operation) to less than 0.1μA.
