XC6701 - 28V Operation High Speed Voltage Regulators

Description

The XC6701 series are positive voltage regulator ICs manufactured using CMOS process with 28V of operation voltage.

The series consists of a voltage reference, an error amplifier, a current limiter, a thermal protection circuit and a phase compensation circuit plus a driver transistor.

Features

  • Max Output Current : More than 150mA (200mA limit) (VIN=VOUT+3.0V) Dropout Voltage : 300mV@IOUT=20mA Input Voltage Range : 2.0V ~ 28.0V Output Voltage Range : 1.8V ~ 18.0V (0.1V increments) High Accuracy : ±2% Low Power Consumption : 50μA (VOUT=5.0V) Stand-by Current : Less than 0.1μA High Ripple Rejection : 50dB@1kHz Operating Ambient Temperature : -40℃ ~ 85℃ (XC6701B/D) -40℃ ~ 105℃ (XC6701A) Low ESR Capacitor : Ceramic Capacitor Compatible (Internal Phase Compensation) Pac.

📥 Download Datasheet

Datasheet preview – XC6701

Datasheet Details

Part number XC6701
Manufacturer Torex Semiconductor
File Size 1.19 MB
Description 28V Operation High Speed Voltage Regulators
Datasheet download datasheet XC6701 Datasheet
Additional preview pages of the XC6701 datasheet.

📁 Similar Datasheet

  • XC6705 - high speed voltage regulator (Torex)
  • XC610 - high performance and highly integrated SoC (XinChip)
  • XC6119 - Voltage Detector (Torex)
  • XC6126 - Single Voltage Detector (Torex)
  • XC6127 - Ultra Small Voltage Detector (Torex)
  • XC6129 - Voltage Detector (Torex)
  • XC6132 - Delay capacitor adjustable voltage detector (Torex)
  • XC6133 - Delay capacitor adjustable voltage detector (Torex)
  • XC6134 - Delay capacitor adjustable voltage detector (Torex)
  • XC6138 - Multi-function voltage detectors (Torex)
Other Datasheets by Torex Semiconductor
  • XC6702 - high speed voltage regulators
  • XC6706 - high speed 3-pin voltage regulator
  • XC6101 - Voltage Detector
  • XC6102 - Voltage Detector
  • XC6103 - Voltage Detector
  • XC6104 - Voltage Detector
  • XC6105 - Voltage Detector
  • XC6106 - Voltage Detector

Full PDF Text Transcription

Click to expand full text

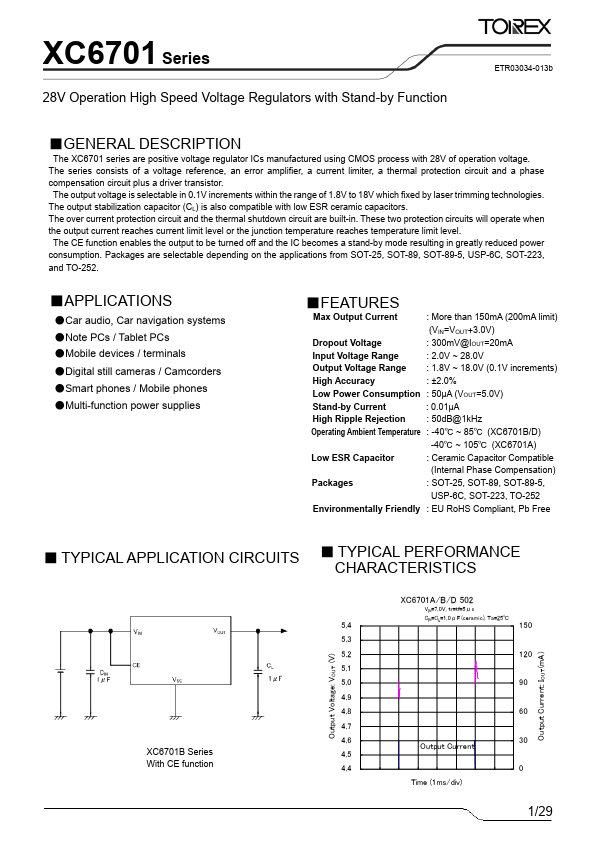

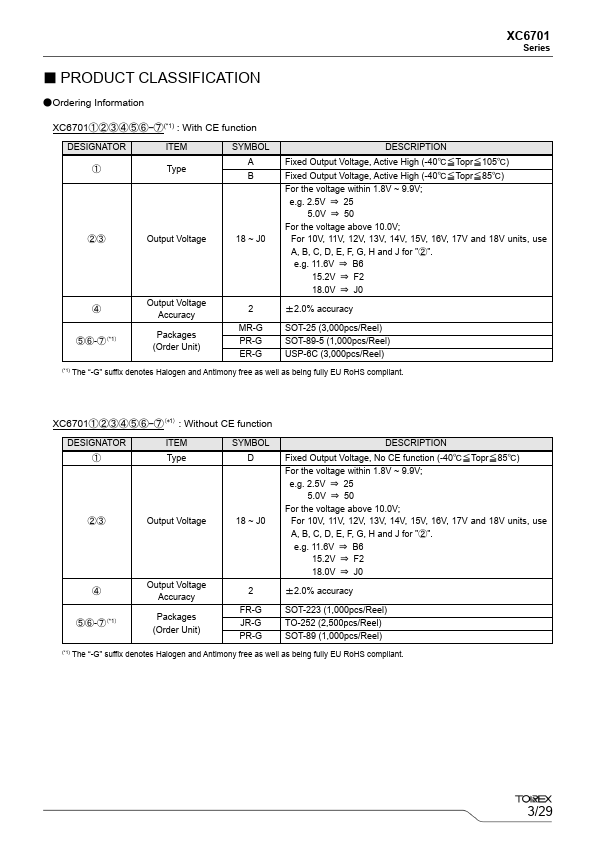

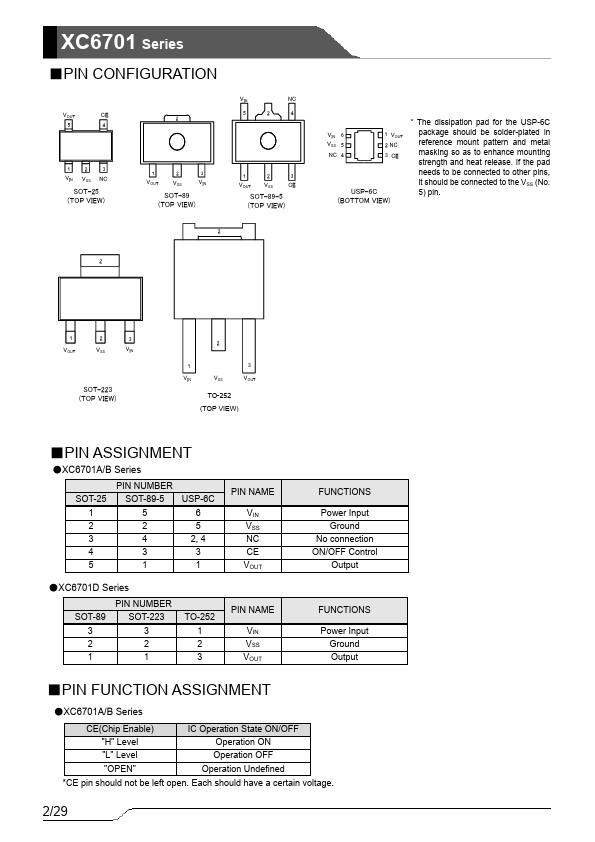

XC6701 Series 28V Operation High Speed Voltage Regulators with Stand-by Function ETR03034-013a ■GENERAL DESCRIPTION The XC6701 series are positive voltage regulator ICs manufactured using CMOS process with 28V of operation voltage. The series consists of a voltage reference, an error amplifier, a current limiter, a thermal protection circuit and a phase compensation circuit plus a driver transistor. The output voltage is selectable in 0.1V increments within the range of 1.8V to 18V which fixed by laser trimming technologies. The output stabilization capacitor (CL) is also compatible with low ESR ceramic capacitors. The over current protection circuit and the thermal shutdown circuit are built-in.
