XC6103 - Voltage Detector

Download the XC6103 datasheet PDF. This datasheet also covers the XC6101 variant, as both devices belong to the same voltage detector family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (XC6101_TorexSemiconductor.pdf) that lists specifications for multiple related part numbers.

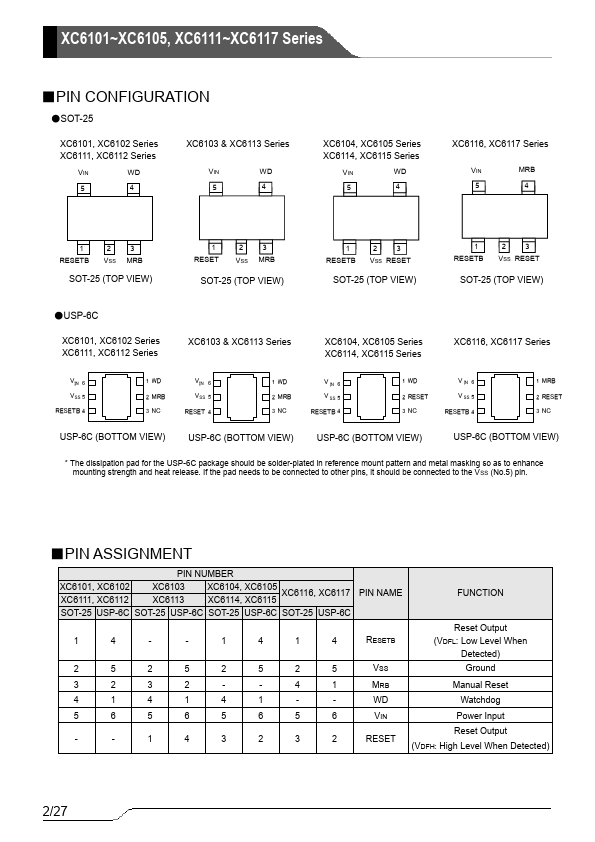

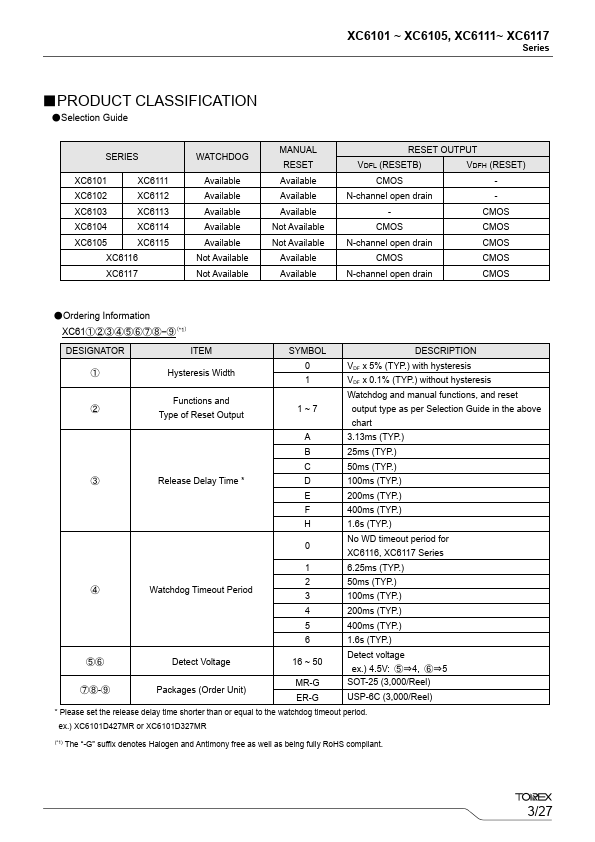

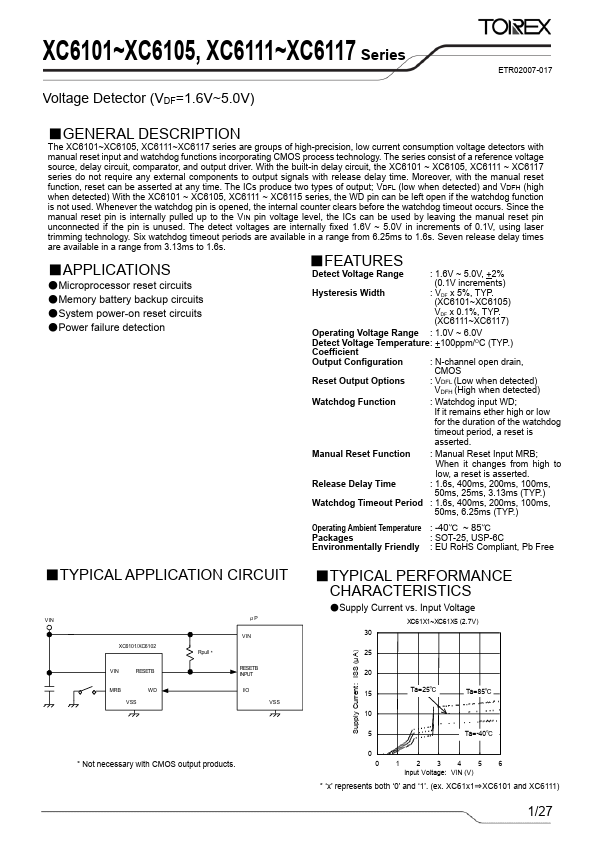

General Description

The XC6101~XC6105, XC6111~XC6117 series are groups of high-precision, low current consumption voltage detectors with manual reset input and watchdog functions incorporating CMOS process technology.

The series consist of a reference voltage source, delay circuit, comparator, and output driver.

With the built-in delay circuit, the XC6101 ~ XC6105, XC6111 ~ XC6117 series do not require any external components to output signals with release delay time.

Overview

XC6101~XC6105, XC6111~XC6117 Series Voltage Detector (VDF=1.6V~5.

Key Features

  • Detect Voltage Range Hysteresis Width : 1.6V ~ 5.0V, +2% (0.1V increments) : VDF x 5%, TYP. (XC6101~XC6105) VDF x 0.1%, TYP. (XC6111~XC6117) Operating Voltage Range : 1.0V ~ 6.0V Detect Voltage Temperature: +100ppm/OC (TYP. ) Coefficient Output Configuration Reset Output Options Watchdog Function : N-channel open drain, CMOS : VDFL (Low when detected) VDFH (High when detected) : Watchdog input WD; If it remains ether high or low for the duration of the watchdog timeout period, a reset is asse.
