XC6112 Datasheet Voltage Detector

Manufacturer: Torex Semiconductor

Download the XC6112 datasheet PDF. This datasheet also includes the XC6101 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (XC6101_TorexSemiconductor.pdf) that lists specifications for multiple related part numbers.

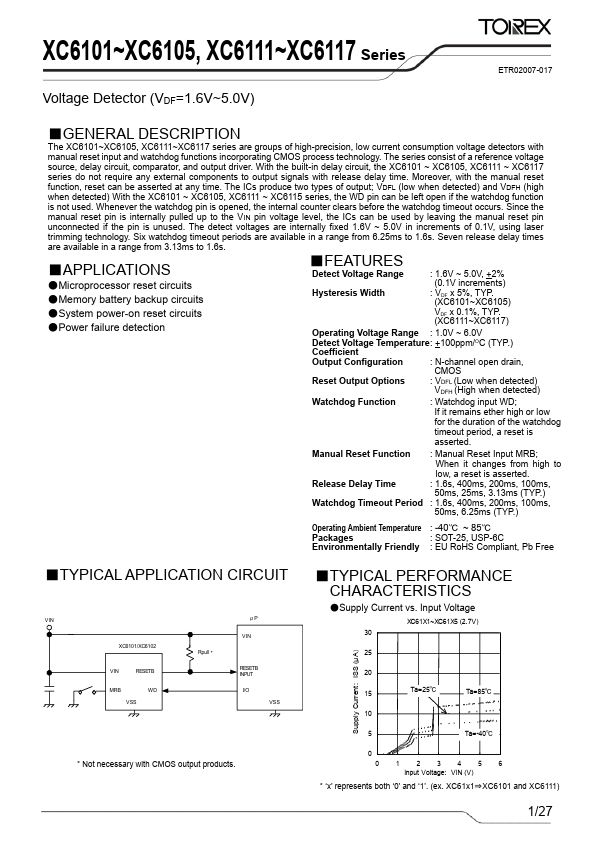

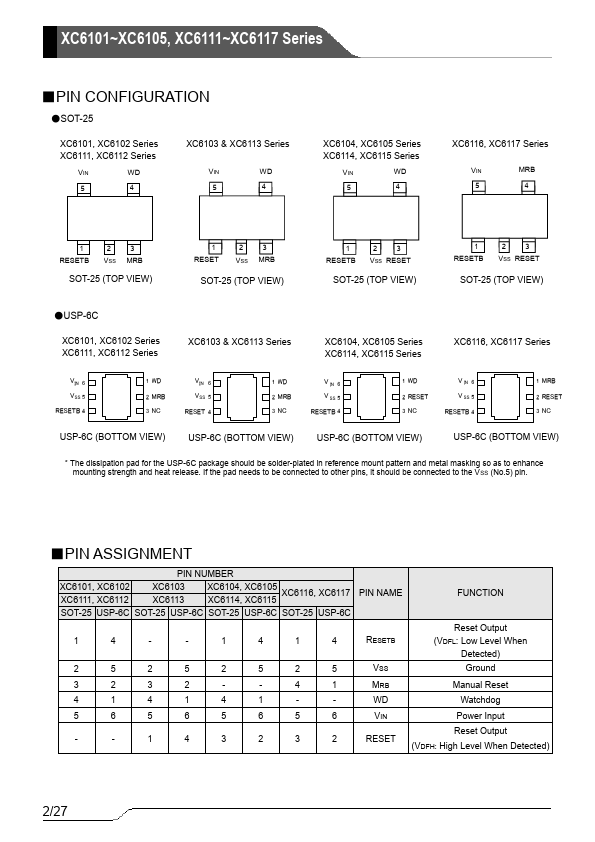

General Description

The XC6101~XC6105, XC6111~XC6117 series are groups of high-precision, low current consumption voltage detectors with manual reset input and watchdog functions incorporating CMOS process technology.

The series consist of a reference voltage source, delay circuit, comparator, and output driver.

With the built-in delay circuit, the XC6101 ~ XC6105, XC6111 ~ XC6117 series do not require any external components to output signals with release delay time.

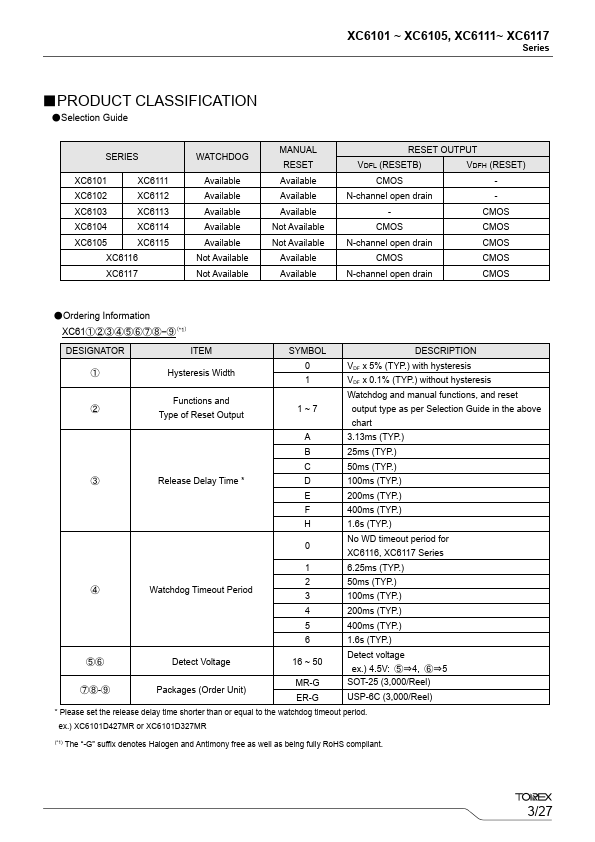

Overview

XC6101~XC6105, XC6111~XC6117 Series Voltage Detector (VDF=1.6V~5.

Key Features

  • Detect Voltage Range Hysteresis Width : 1.6V ~ 5.0V, +2% (0.1V increments) : VDF x 5%, TYP. (XC6101~XC6105) VDF x 0.1%, TYP. (XC6111~XC6117) Operating Voltage Range : 1.0V ~ 6.0V Detect Voltage Temperature: +100ppm/OC (TYP. ) Coefficient Output Configuration Reset Output Options Watchdog Function : N-channel open drain, CMOS : VDFL (Low when detected) VDFH (High when detected) : Watchdog input WD; If it remains ether high or low for the duration of the watchdog timeout period, a reset is asse.
