XC6415 - Dual LDO Regulator

Description

The XC6415 series is a highly accurate, CMOS Dual LDO voltage regulator.

Features

  • Output Current Dropout Voltage Operating Voltage Range Output Voltage Range High Accuracy Low Power Consumption Stand-by Current Ripple Rejection Operating Ambient Temperature Low ESR Capacitor Packages Environmentally Friendly : 200mA (300mA limit, TYP. ) : 95mV @ IOUT=100mA VOUT=3.0V : 1.5V ~ 6.0V : 0.8V ~ 5.0V (0.05V increments) : + 1% @ VOUT>2.0V + 2% @ VOUT≧1.5V + 20mV @VOUT.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
XC610 high performance and highly integrated SoC XinChip
XC6119 Voltage Detector Torex
XC6126 Single Voltage Detector Torex
XC6127 Ultra Small Voltage Detector Torex
XC6129 Voltage Detector Torex

Other Datasheets by Torex Semiconductor

Part Number Description
XC6411 Low Power Consumption Dual Voltage Regulator
XC6412 Low Power Consumption Dual Voltage Regulator
XC6413 High Speed LDO Regulators
XC6414 High Speed LDO Regulators
XC6416 Dual LDO Voltage Regulator

Full PDF Text Transcription

Click to expand full text

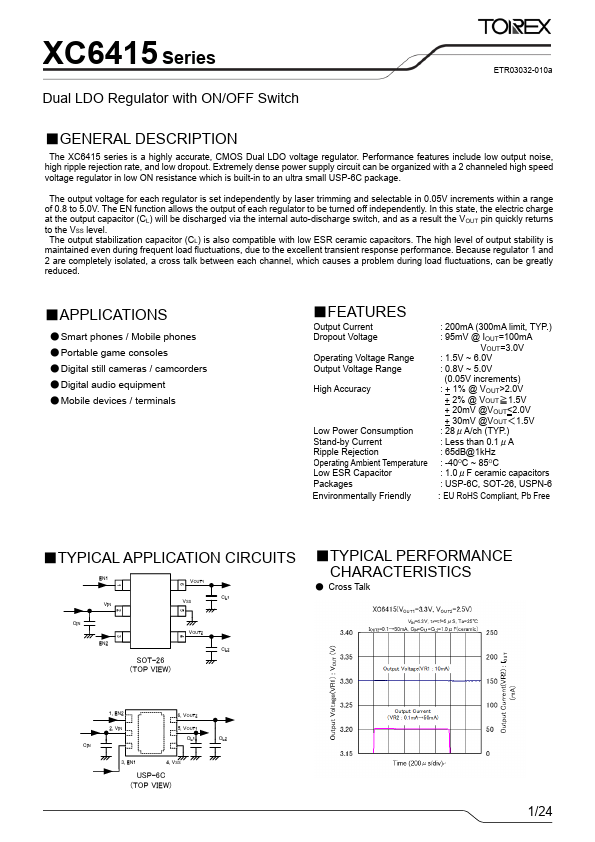

XC6415 Series Dual LDO Regulator with ON/OFF Switch ETR0332-010 â– GENERAL DESCRIPTION The XC6415 series is a highly accurate, CMOS Dual LDO voltage regulator. Performance features include low output noise, high ripple rejection rate, and low dropout. Extremely dense power supply circuit can be organized with a 2 channeled high speed voltage regulator in low ON resistance which is built-in to an ultra small USP-6C package. The output voltage for each regulator is set independently by laser trimming and selectable in 0.05V increments within a range of 0.8 to 5.0V. The EN function allows the output of each regulator to be turned off independently.
