XC6412 - Low Power Consumption Dual Voltage Regulator

Download the XC6412 datasheet PDF. This datasheet also covers the XC6411 variant, as both devices belong to the same low power consumption dual voltage regulator family and are provided as variant models within a single manufacturer datasheet.

Description

The XC6411P/XC6412B series is a dual LDO regulator manufactured using CMOS process.

Features

  • Maximum Output Current : 200mA (300mA Limit TYP. ) @ VOUT=3.0V, VIN=4.0V Dropout Voltage : 320mV @ IOUT = 100mA @ VOUT = 3.0V Input Voltage Range : 1.5V ~ 6.0V Output Voltage Range : 0.9V ~ 5.0V (0.1V increments) Highly Accurate :±2% (1.5V＜VOUT≦5.0V) ±0.03V (0.9V≦VOUT≦1.5V) Low Power Consumption : 0.8μA / ch. (TYP. ) Low ESR Capacitor Compatible: Ceramic capacitor Current Limiter Circuit Built-In Operating Ambient Temperature : - 40℃~ 85℃ Small Packages : SOT-25 (XC6411P) SOT-26 (.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (XC6411_TorexSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
XC610 high performance and highly integrated SoC XinChip
XC6119 Voltage Detector Torex
XC6126 Single Voltage Detector Torex
XC6127 Ultra Small Voltage Detector Torex
XC6129 Voltage Detector Torex

Other Datasheets by Torex Semiconductor

Part Number Description
XC6411 Low Power Consumption Dual Voltage Regulator
XC6413 High Speed LDO Regulators
XC6414 High Speed LDO Regulators
XC6415 Dual LDO Regulator
XC6416 Dual LDO Voltage Regulator

Full PDF Text Transcription

Click to expand full text

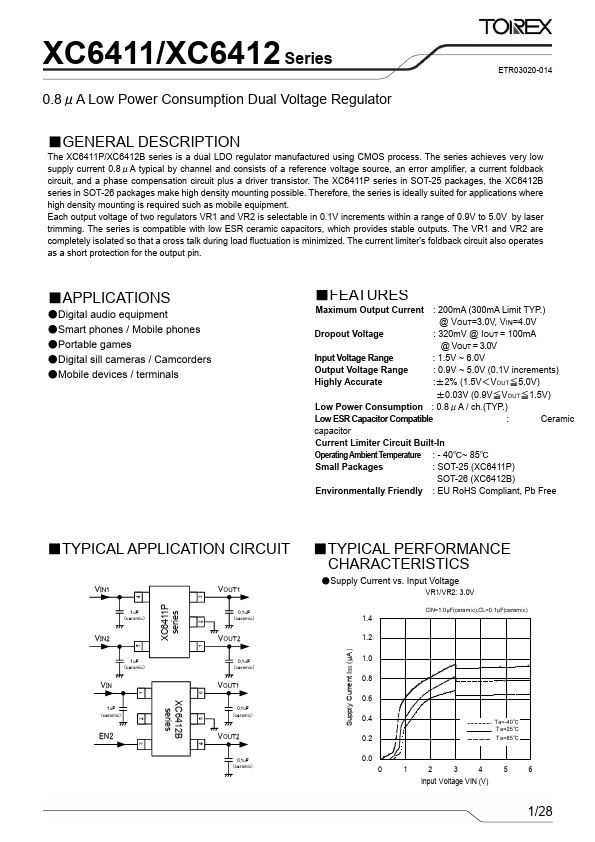

XC6411/XC6412 Series 0.8μA Low Power Consumption Dual Voltage Regulator ETR0320_013 ■GENERAL DESCRIPTION The XC6411P/XC6412B series is a dual LDO regulator manufactured using CMOS process. The series achieves very low supply current 0.8μA typical by channel and consists of a reference voltage source, an error amplifier, a current foldback circuit, and a phase compensation circuit plus a driver transistor. The XC6411P series in SOT-25 packages, the XC6412B series in SOT-26 packages make high density mounting possible. Therefore, the series is ideally suited for applications where high density mounting is required such as mobile equipment. Each output voltage of two regulators VR1 and VR2 is selectable in 0.1V increments within a range of 0.9V to 5.0V by laser trimming.
