XC6222 - 700mA High Speed LDO Regulator

Description

The XC6222 series is a highly accurate, low noise, high ripple rejection, low dropout, and low power consumption high speed voltage regulator.

Features

  • Maximum Output Current Dropout Voltage Operating Voltage Range : 700mA : 120mV @IOUT=300mA (VOUT=3.0V) : 1.7V ~ 6.0V Output Voltage Accuracy : 0.8V~5.0V (0.05V increments) : +1% (VOUT＞2.0V) +0.02V (VOUT≦2.0V) Low Power Consumption : 100μA High Ripple Rejection : 65dB @ 1kHz Low ESR Capacitor : Ceramic capacitor Chip Enable (CE) : Active High, CL discharge Standby Current below 0.1μA Operating Ambient Temperature : -40℃ ~ 85℃ Packages : USP-6C, SOT-25, SOT-89-5 Environmentally Fr.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
XC6206 100mA Low Dropout CMOS Voltage Regulators JinYu
XC6206 Linear voltage regulator UMW
XC6211 300mA High Speed LDO Regulators Torex
XC6218 Low Power Supply LDO Regulators TOREX
XC6238 300mA High Speed LDO Regulator Torex

Other Datasheets by Torex Semiconductor

Part Number Description
XC6220 1A LDO Voltage Regulator
XC6221 Low ESR Caps Compatible High Speed LDO Voltage Regulators
XC6223 300mA High Speed LDO Voltage Regulator
XC6224 150mA High Speed LDO Voltage Regulator
XC6225 30mA High Speed LDO Regulator

Full PDF Text Transcription

Click to expand full text

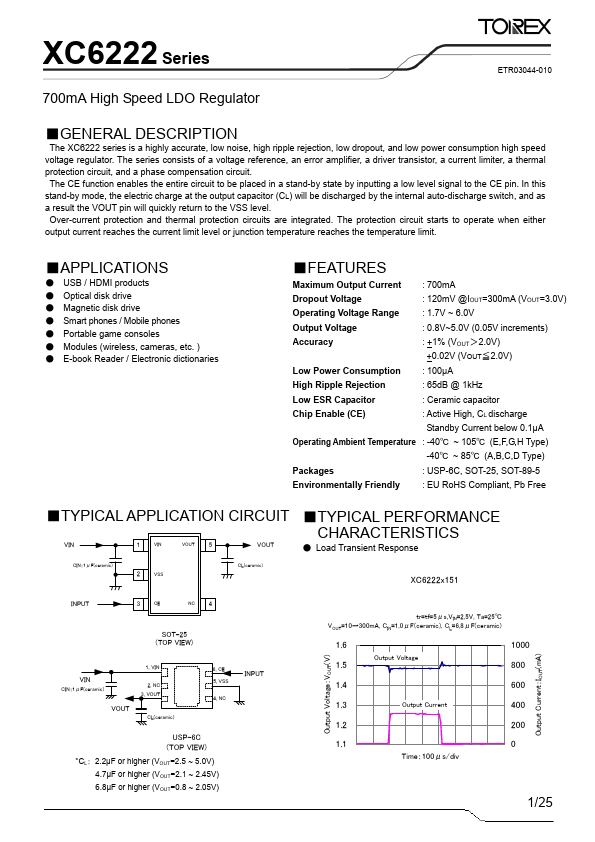

XC6222 Series 700mA High Speed LDO Regulator ETR03044-009b ■GENERAL DESCRIPTION The XC6222 series is a highly accurate, low noise, high ripple rejection, low dropout, and low power consumption high speed voltage regulator. The series consists of a voltage reference, an error amplifier, a driver transistor, a current limiter, a thermal protection circuit, and a phase compensation circuit. The CE function enables the entire circuit to be placed in a stand-by state by inputting a low level signal to the CE pin. In this stand-by mode, the electric charge at the output capacitor (CL) will be discharged by the internal auto-discharge switch, and as a result the VOUT pin will quickly return to the VSS level. Over-current protection and thermal protection circuits are integrated.
