START499 - NPN Silicon RF Transistor

Datasheet Summary

Description

START499 is a product of the START family that provide the market with a Si state-of-art RF process.

Manufactured in St 3rd generation bipolar process, it offers the highest power, gain and efficiency in SOT343 for given breakdown voltage (BVceo).

📥 Download Datasheet

Datasheet preview – START499

Datasheet Details

Part number START499
Manufacturer STMicroelectronics
File Size 89.44 KB
Description NPN Silicon RF Transistor
Datasheet download datasheet START499 Datasheet
Additional preview pages of the START499 datasheet.

📁 Similar Datasheet

  • STAR1000 - STAR1000 1M Pixel Radiation Hard CMOS Image Sensor (Cypress Semiconductor)
  • STAR405F10 - Laser Diode Module (Roithner)
  • STAR405F20 - Laser Diode Module (Roithner)
  • STAR405F5 - Laser Diode Module (Roithner)
  • STAR450F10 - Laser Diode Module (Roithner)
  • STAR450F5 - Laser Diode Module (Roithner)
  • STA-42D1004 - 2 Phase Hybrid Stepping Motor (Shinano Kenshi)
  • STA-42D1005 - 2 Phase Hybrid Stepping Motor (Shinano Kenshi)
  • STA-42D1006 - 2 Phase Hybrid Stepping Motor (Shinano Kenshi)
  • STA-42D1007 - 2 Phase Hybrid Stepping Motor (Shinano Kenshi)
Other Datasheets by ST Microelectronics

Full PDF Text Transcription

Click to expand full text

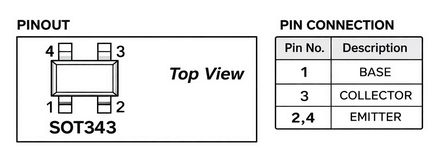

www.DataSheet4U.com START499 NPN Silicon RF Transistor • HIGH EFFICIENCY • HIGH GAIN • LINEAR AND NON LINEAR OPERATION • TRANSITION FREQUENCY 42GHz • ULTRA MINIATURE SOT343 (SC70) PACKAGE SOT343 (SC70) ORDER CODE START499TR BRANDING 499 DESCRIPTION START499 is a product of the START family that provide the market with a Si state-of-art RF process. Manufactured in St 3rd generation bipolar process, it offers the highest power, gain and efficiency in SOT343 for given breakdown voltage (BVceo). Suitable for a wide range of applications up to 5GHz, it shows a performance level achieved before with GaAs products only. APPLICATIONS • PA FOR DECT OR PHS • PA STAGE FOR WIRELESS LAN AND BLUETOOTH @ 2.
