MS5541 - 2.7V to 5.5V 16-Bit DAC

Product Overview

Ruimeng

📥 Download Datasheet

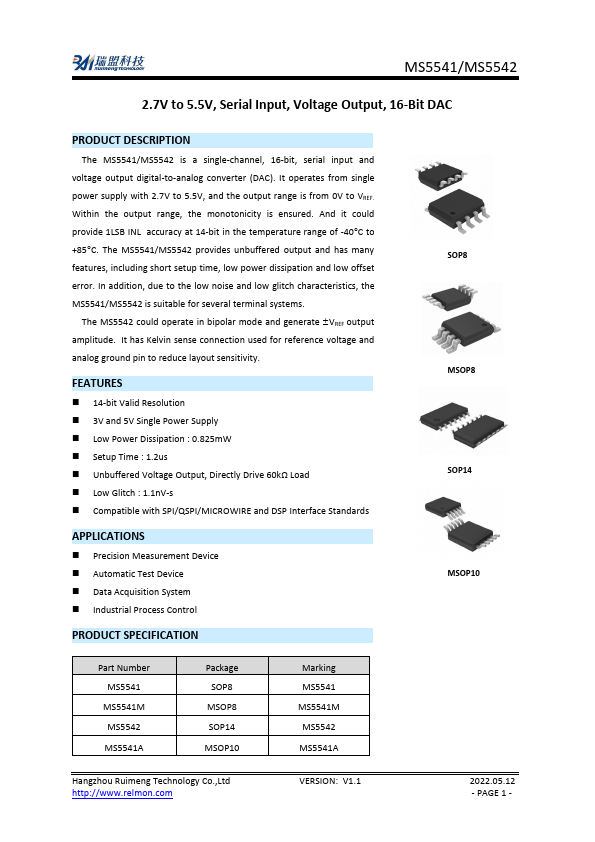

MS5541 2.7V to 5.5V 16-Bit DAC by Ruimeng - Datasheet Preview — Datasheet preview – MS5541

Datasheet Details

Part number	MS5541
Manufacturer	Ruimeng
File Size	1.96 MB
Description	2.7V to 5.5V 16-Bit DAC
Datasheet	MS5541 Datasheet

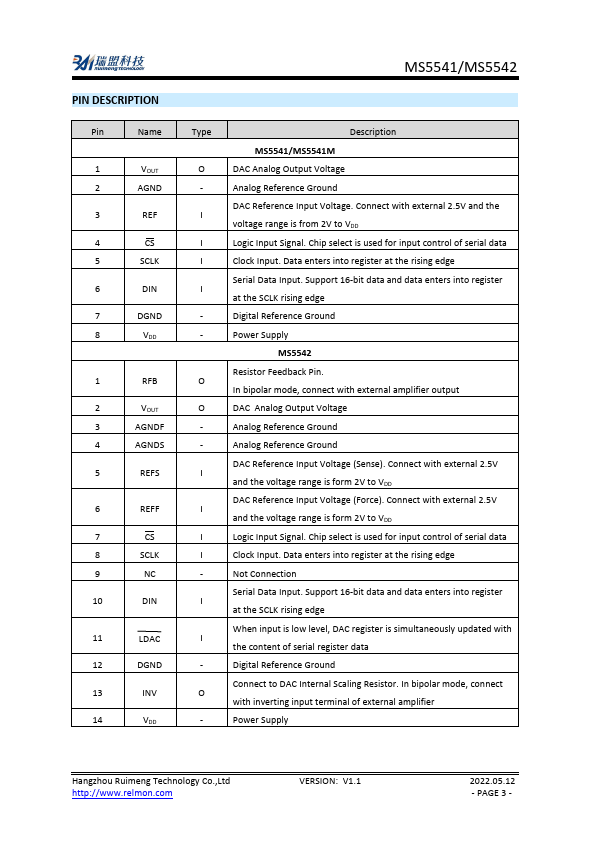

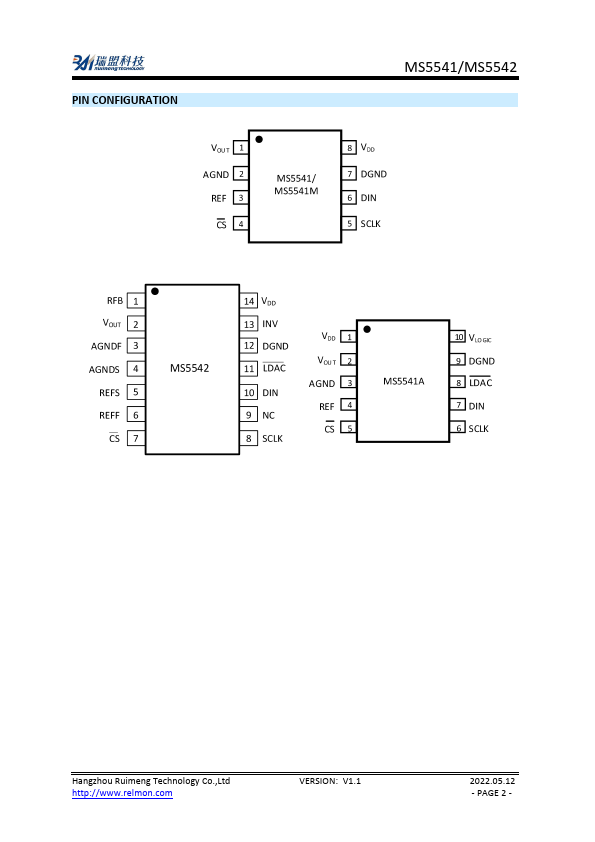

Additional preview pages of the MS5541 datasheet.

Product details

Description

The MS5541/MS5542 is a single-channel, 16-bit, serial input and voltage output digital-to-analog converter (DAC).

Features

including short setup time, low power dissipation and low offset error. In addition, due to the low noise and low glitch characteristics, the MS5541/MS5542 is suitable for several terminal systems. The MS5542 could operate in bipolar mode and generate VREF output amplitude. It has Kelvin sense connection used for reference voltage and analog ground pin to reduce layout sensitivity.
