MCR006 - Thick film chip resistors

General Description

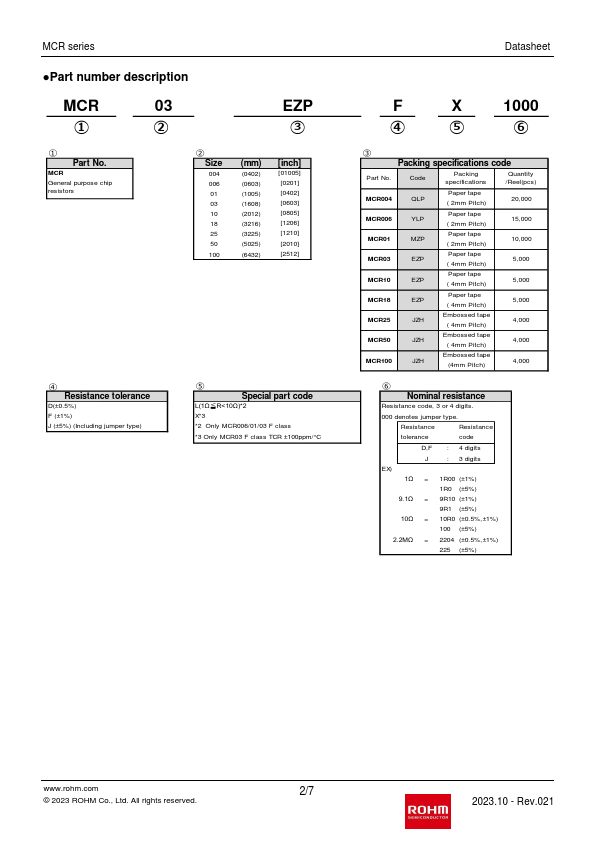

① Part No.

Key Features

  • 1) Full line up from ultra small size 01005 to 2512 with jumper type. 2) High reliability metal glazed thick film. 3) ROHM resistors have obtained ISO9001/IATF16949 certification. 4) Corresponds to AEC-Q200 (Except MCR004).
  • Products list Part No. Type code Rated Limiting Temperature Resistance Resistance range Operating Automotive power element coefficient tolerance temperature Grade (70°C) voltage range Available (AEC-Q200) (W) (V) (ppm/ °C) (%) (Ω) (°C) MCR004 QL.

📥 Download Datasheet

Datasheet Details

Part number MCR006
Manufacturer ROHM
File Size 1.04 MB
Description Thick film chip resistors
Datasheet download datasheet MCR006 Datasheet

Other Datasheets by ROHM

Part Number Description
MCR004 Thick Film Chip Resistors
MCR004E General purpose chip resistors
MCR01 Thick Film Chip Resistors
MCR03 Thick Film Chip Resistors
MCR10 Thick Film Chip Resistors
MCR100 Thick Film Chip Resistors
MCR100-J MCR100
MCR100L General Purpose Chip Resistors
MCR10L General Purpose Chip Resistors
MCR18 Thick Film Chip Resistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

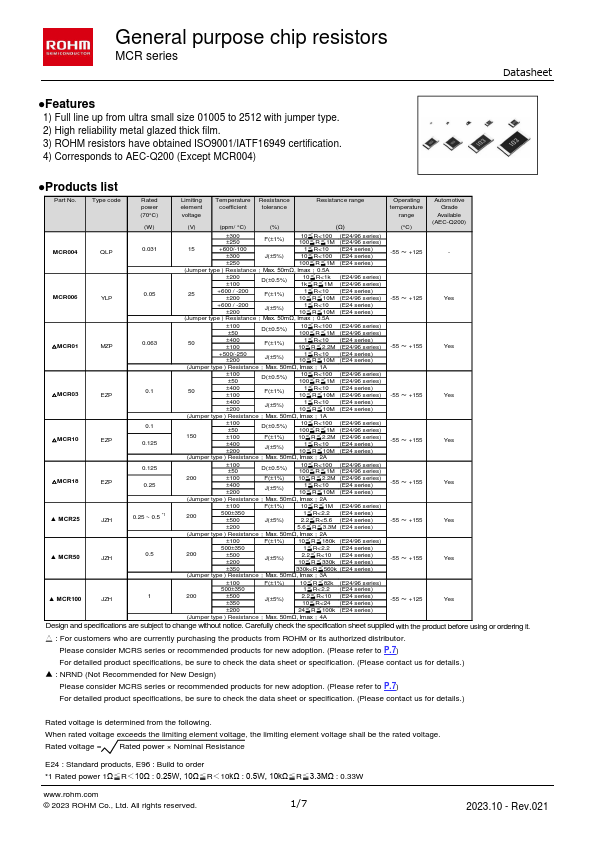

General purpose chip resistors MCR series Datasheet ●Features 1) Full line up from ultra small size 01005 to 2512 with jumper type. 2) High reliability metal glazed thick film. 3) ROHM resistors have obtained ISO9001/IATF16949 certification. 4) Corresponds to AEC-Q200 (Except MCR004) ●Products list Part No. Type code Rated Limiting Temperature Resistance Resistance range Operating Automotive power element coefficient tolerance temperature Grade (70°C) voltage range Available (AEC-Q200) (W) (V) (ppm/ °C) (%) (Ω) (°C) MCR004 QLP 0.031 ±300 ±250 F(±1%) 10≦R<100 (E24/96 series) 100≦R≦1M (E24/96 series) 15 +600/-100 ±300 J(±5%) 1≦R<10 (E24 series) 10≦R<100 (E24 series) -55 ～ +125 - ±250 100≦R≦1M (E24 series) (Jumper type ) Resistance ： Max.
