MCR004E - General purpose chip resistors

Datasheet Summary

Description

Part No.

Part No.

Features

  • 1) Totally lead-free (no RoHS exemptions (7C-1)). 2) Compliant with RoHS regulations. 3) ROHM resistors have obtained ISO9001 certification. Datasheet.
  • Products list Part No. Size (mm) (inch) MCR004E 0402 01005 Rated power (W) 0.031 (1/32) Rated Rated ambient terminal temperatur temperatur (°C) (°C) Lim iting element voltage (V) Resistance Temperature tolerance coefficient (%) (ppm /°C) Resistance range (Ω) F(±1%) ±300 1≦R.

📥 Download Datasheet

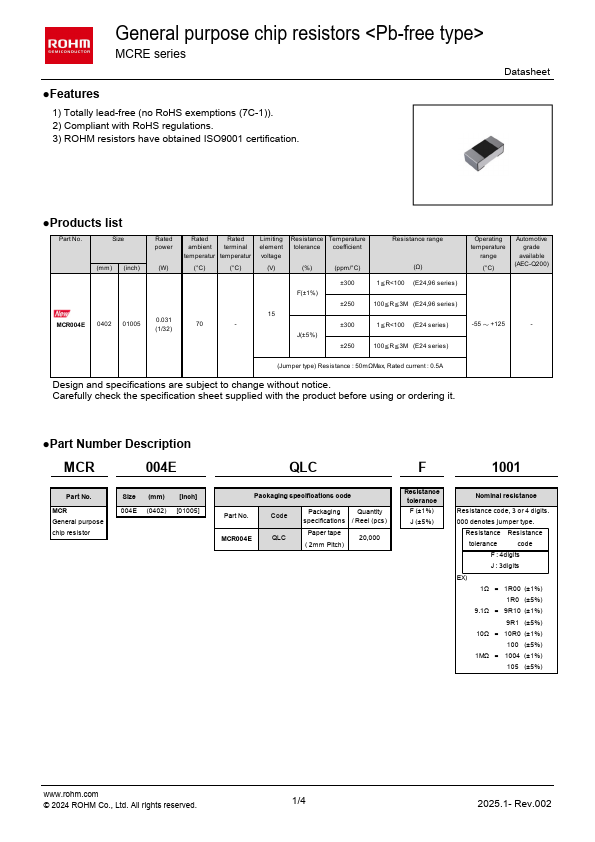

Datasheet preview – MCR004E

Datasheet Details

Part number MCR004E
Manufacturer ROHM
File Size 955.73 KB
Description General purpose chip resistors
Datasheet download datasheet MCR004E Datasheet

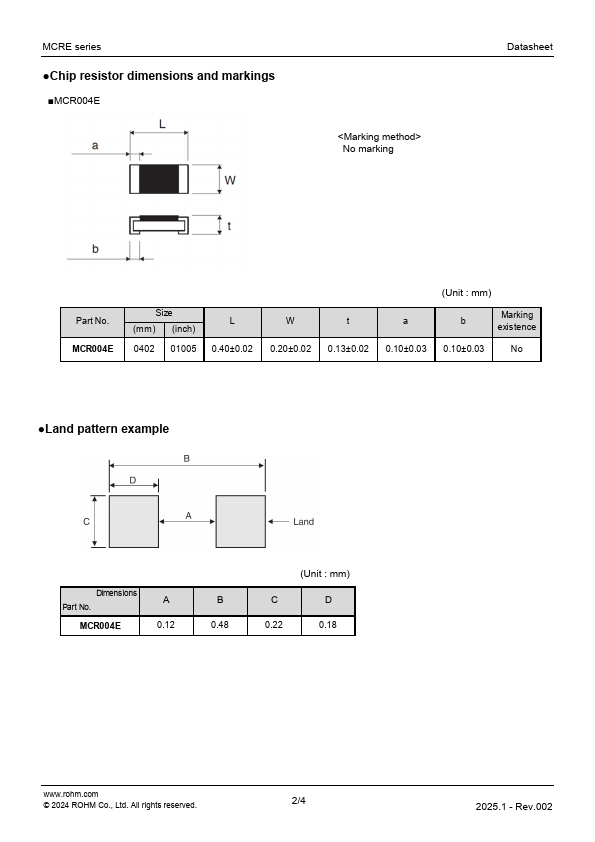

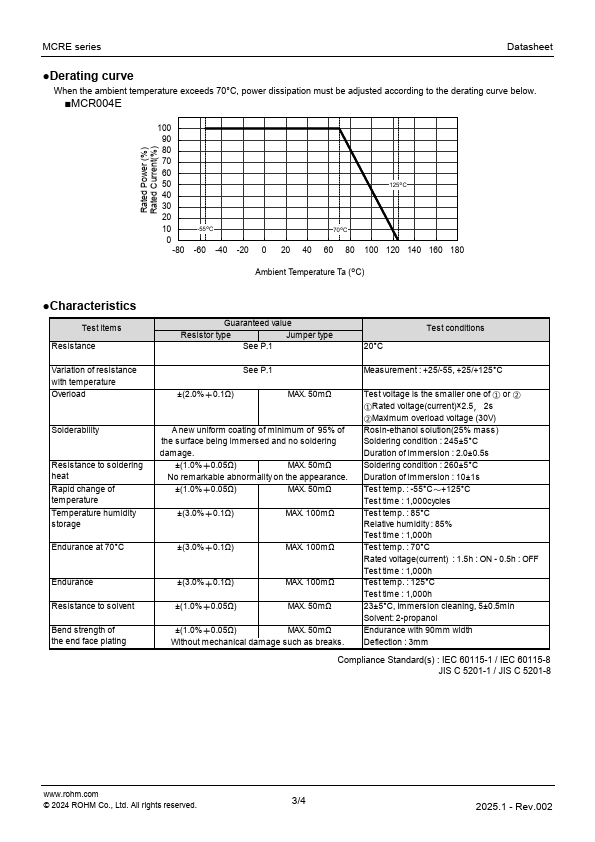

Additional preview pages of the MCR004E datasheet.

📁 Similar Datasheet

  • MCR02 - Ethernet Based Contactless Card R/W Terminals (OTTRON)
  • MCR0201AT - High Stability Thin Film Flat Chip Resistors (Vishay)
  • MCR05 - Ethernet Based Contactless Card R/W Terminals (OTTRON)
  • MCR08 - SENSITIVE GATE SILICON CONTROLLED RECTIFIER (UTC)
  • MCR08B - Thyristors (Littelfuse)
  • MCR08B - Sensitive Gate Silicon Controlled Rectifiers (ON)
  • MCR08BT1 - SCR (NXP)
  • MCR08BT1 - SCR 0.8 AMPERE RMS 200 thru 600 Volts (Motorola)
  • MCR08M - Thyristors (Littelfuse)
  • MCR08M - Sensitive Gate Silicon Controlled Rectifiers (ON Semiconductor)
Other Datasheets by ROHM
  • MCR004 - Thick Film Chip Resistors
  • MCR006 - Thick film chip resistors
  • MCR01 - Thick Film Chip Resistors
  • MCR03 - Thick Film Chip Resistors
  • MCR10 - Thick Film Chip Resistors
  • MCR100 - Thick Film Chip Resistors
  • MCR100-J - MCR100
  • MCR100L - General Purpose Chip Resistors

Full PDF Text Transcription

Click to expand full text
General purpose chip resistors MCRE series ●Features 1) Totally lead-free (no RoHS exemptions (7C-1)). 2) Compliant with RoHS regulations. 3) ROHM resistors have obtained ISO9001 certification. Datasheet ●Products list Part No. Size (mm) (inch) MCR004E 0402 01005 Rated power (W) 0.031 (1/32) Rated Rated ambient terminal temperatur temperatur (°C) (°C) Lim iting element voltage (V) Resistance Temperature tolerance coefficient (%) (ppm /°C) Resistance range (Ω) F(±1%) ±300 1≦R<100 (E24,96 series) ±250 100≦R≦3M (E24,96 series) 15 70 - J(±5%) ±300 1≦R<100 (E24 series) ±250 100≦R≦3M (E24 series) Operating tem perature range (°C) Autom otive grade available (AEC-Q200) -55 〜 +125 - (Jumper type) Resistance : 50mΩMax, Rated current : 0.
