RT4533A - Asynchronous Boost Converter

This page provides the datasheet information for the RT4533A, a member of the RT4533 Asynchronous Boost Converter family.

Description

The RT4533/A is a highly integrated LED driver IC capable of driving 10 WLEDs in series.

It is composed of a current mode Boost converter integrated with a 36.5V/1.2A power switch.

The RT4533/A supports a wide input voltage range from 2.5V to 5.5V and runs at a fixed frequency of 1.1MHz.

Features

  • 2.5V to 5.5V Input Voltage Range.
  • 36.5V Open LED Protection for 10 WLEDs.
  • PWM Dimming Brightness Control.
  • 200mV / 300mV Reference Voltage with ±2% Accuracy.
  • 1.1MHz Switching Frequency.
  • Built-In Soft-Start.
  • Over-Temperature Protection.
  • Internal Compensation.
  • Current Limit.
  • RoHS Compliant and Halogen Free Ordering Information RT4533/A Package Type J6 : TSOT-23-6 Lead Plating System G : Green (Halogen Free and Pb Free) Note : Feedback Voltage R.

📥 Download Datasheet

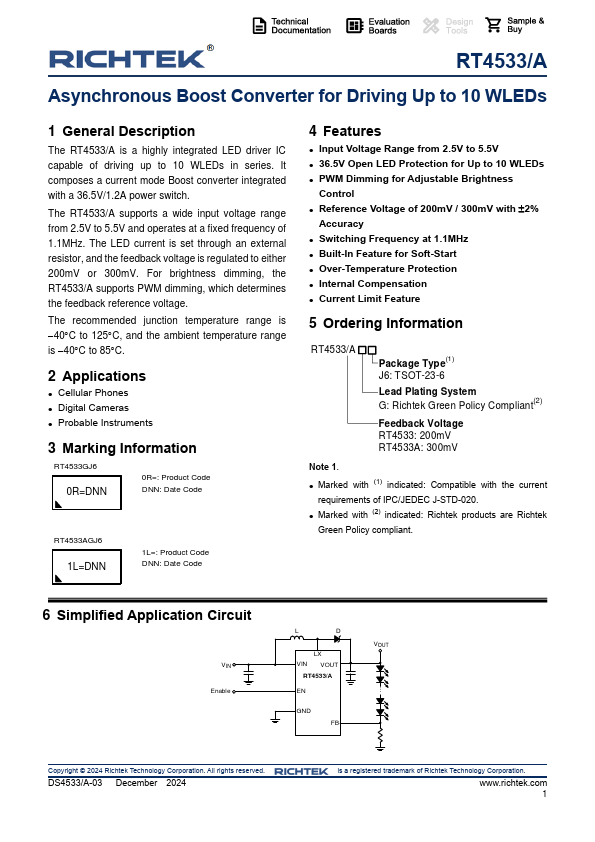

Datasheet preview – RT4533A
