RT4533 - Asynchronous Boost Converter

Description

The RT4533/A is a highly integrated LED driver IC capable of driving 10 WLEDs in series.

It is composed of a current mode Boost converter integrated with a 36.5V/1.2A power switch.

The RT4533/A supports a wide input voltage range from 2.5V to 5.5V and runs at a fixed frequency of 1.1MHz.

Features

  • 2.5V to 5.5V Input Voltage Range.
  • 36.5V Open LED Protection for 10 WLEDs.
  • PWM Dimming Brightness Control.
  • 200mV / 300mV Reference Voltage with ±2% Accuracy.
  • 1.1MHz Switching Frequency.
  • Built-In Soft-Start.
  • Over-Temperature Protection.
  • Internal Compensation.
  • Current Limit.
  • RoHS Compliant and Halogen Free Ordering Information RT4533/A Package Type J6 : TSOT-23-6 Lead Plating System G : Green (Halogen Free and Pb Free) Note : Feedback Voltage R.

📥 Download Datasheet

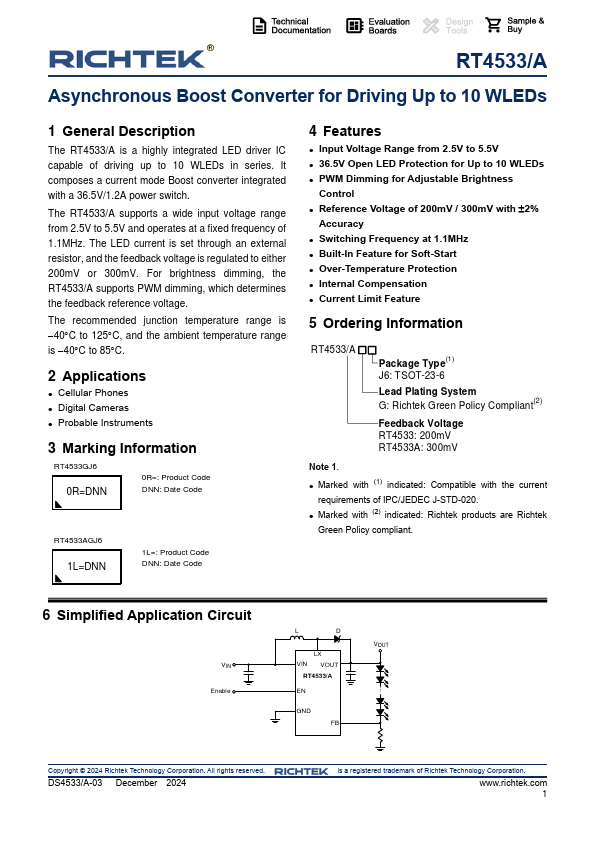

Datasheet preview – RT4533

Datasheet Details

Part number RT4533
Manufacturer Richtek
File Size 144.21 KB
Description Asynchronous Boost Converter
Datasheet download datasheet RT4533 Datasheet
Additional preview pages of the RT4533 datasheet.

📁 Similar Datasheet

  • RT4532 - High Efficiency Backlight LED Driver (Richtek Technology)
  • RT4501 - High Efficiency Backlight LED Driver (Richtek Technology)
  • RT4501A - High Efficiency Backlight LED Driver (Richtek Technology)
  • RT4503 - Asynchronous Boost Converter (Richtek Technology)
  • RT4503A - Asynchronous Boost Converter (Richtek Technology)
  • RT4528 - High Voltage Buck LED Driver (Richtek Technology)
  • RT4002A-1 - LCD Module (Shenzhen)
  • RT4002ASRB - LCD Module (ETC)
  • RT4004ASRB - LCD Module (ETC)
  • RT4115 - SURFACE MOUNT TUNING FORK CRYSTAL (RALTRON)
Other Datasheets by Richtek
  • RT4533A - Asynchronous Boost Converter
  • RT4539A - 39V High Efficiency Boost Converter
  • RT4526 - Asynchronous Boost LED Driver
  • RT4527A - 36V High Efficiency Boost Converter
  • RT4722C - Triple DC-DC Boost Converter
  • RT4723 - Dual Output AMOLED Bias
  • RT4730 - Power Solution
  • RT4801H - Dual Output LCD Bias

Full PDF Text Transcription

Click to expand full text
® RT4533/A Asynchronous Boost Converter for 10 WLEDs General Description The RT4533/A is a highly integrated LED driver IC capable of driving 10 WLEDs in series. It is composed of a current mode Boost converter integrated with a 36.5V/1.2A power switch. The RT4533/A supports a wide input voltage range from 2.5V to 5.5V and runs at a fixed frequency of 1.1MHz. The LED current is set via an external resistor and the feedback voltage is regulated to 200mV / 300mV. For brightness dimming, the RT4533/A supports PWM dimming which determines the feedback reference voltage. Applications  Cellular Phones  Digital Cameras  Probable Instruments Marking Information RT4533GJ6 0R=DNN 0R= : Product Code DNN : Date Code RT4533AGJ6 1L=DNN 1L= : Product Code DNN : Date Code Features  2.5V to 5.
