2SB1691 - Low Frequency Power Amplifier

General Description

of circuits, software and other relat

Key Features

  • Small size package: MPAK (SC.
  • 59A).
  • Large Maximum current: IC =.
  • 1 A.
  • Low collector to emitter saturation voltage: VCE(sat) =.
  • 0.3 V max. (at IC/IB =.
  • 0.5 A/.
  • 0.05 A).
  • High power dissipation: PC = 800 mW (when using alumina ceramic board (25 x 60 x 0.7 mm)).
  • Complementary pair with 2SD2655 Outline.

📥 Download Datasheet

Datasheet Details

Part number 2SB1691
Manufacturer Renesas
File Size 144.67 KB
Description Low Frequency Power Amplifier
Datasheet download datasheet 2SB1691 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SB1690 Silicon PNP Transistor Rohm
2SB1690K Transistors Rohm
2SB1693 Silicon PNP Transistor Panasonic Semiconductor
2SB1694 Transistors Rohm
2SB1695 Transistors Rohm

Other Datasheets by Renesas

Part Number Description
2SB1001 Silicon PNP Transistor
2SB1002 Silicon PNP Transistor
2SB1025 Silicon PNP Epitaxial Transistor
2SB1026 Silicon PNP Epitaxial Transistor
2SB1115 PNP SILICON EPITAXIAL TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

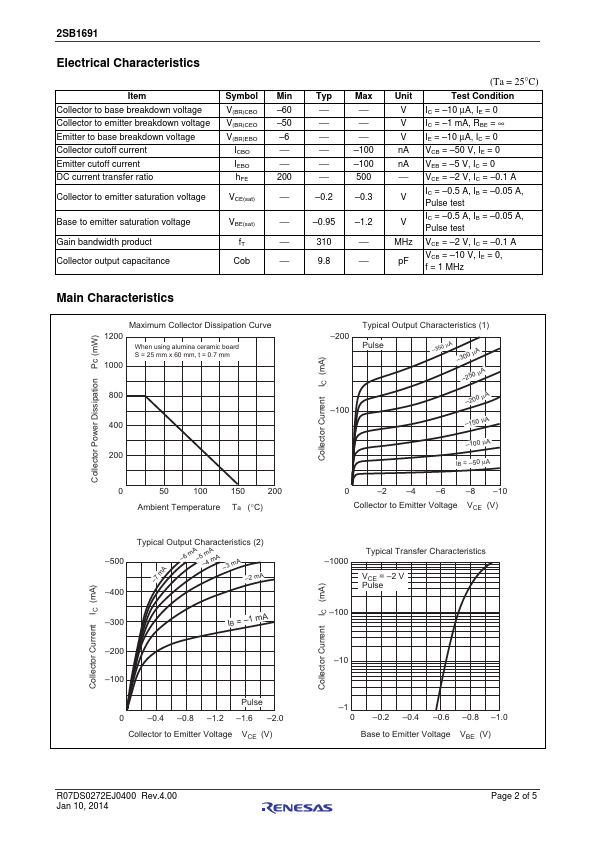

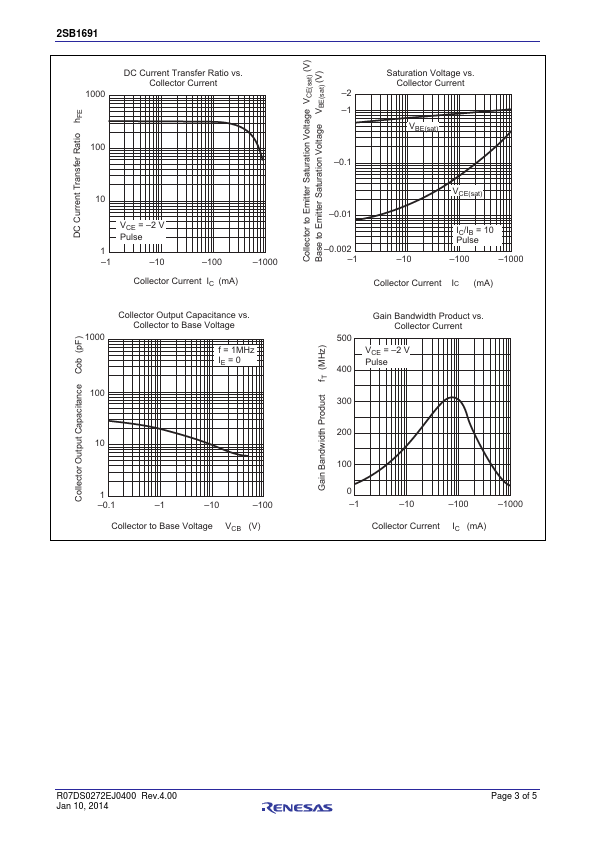

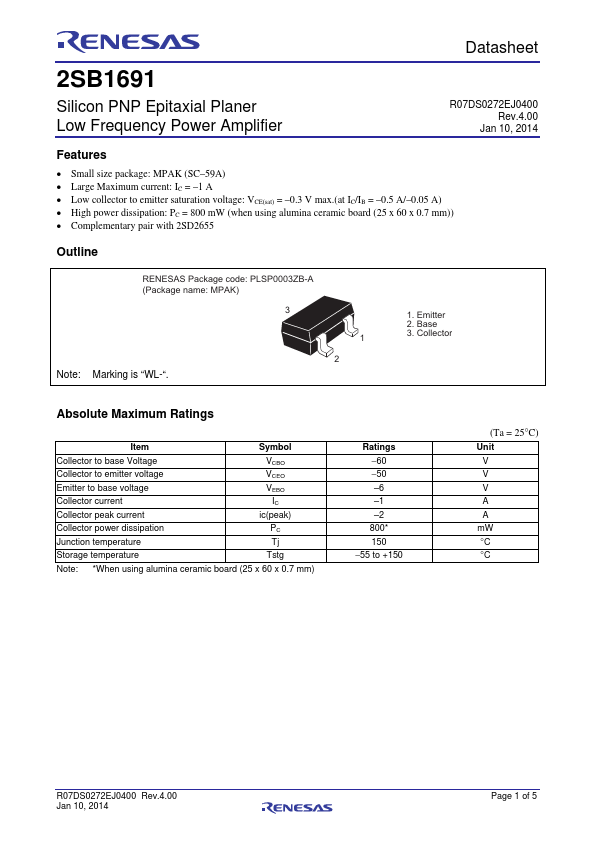

Preliminary Datasheet 2SB1691 Silicon PNP Epitaxial Planer Low Frequency Power Amplifier R07DS0272EJ0400 Rev.4.00 Jan 10, 2014 Features • Small size package: MPAK (SC–59A) • Large Maximum current: IC = –1 A • Low collector to emitter saturation voltage: VCE(sat) = –0.3 V max.(at IC/IB = –0.5 A/–0.05 A) • High power dissipation: PC = 800 mW (when using alumina ceramic board (25 x 60 x 0.7 mm)) • Complementary pair with 2SD2655 Outline RENESAS Package code: PLSP0003ZB-A (Package name: MPAK) 3 Note: Marking is “WL-“. 1 2 1. Emitter 2. Base 3.
