BAV19W - SMALL SIGNAL DIODE

Key Features

  • Fast Switching Speed.
  • Surface Mount Package ldeally Suited for Automatic Insertion.
  • General Purpose Switching.

📥 Download Datasheet

Datasheet Details

Part number BAV19W
Manufacturer Rectron
File Size 138.49 KB
Description SMALL SIGNAL DIODE
Datasheet download datasheet BAV19W Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BAV19W SURFACE MOUNT FAST SWITCHING DIODE Sunmate
BAV19W Surface Mount Fast Switching Doide Semiware
BAV19W FAST SWITCHING DIODE SMC Diode
BAV19W Silicon Epitaxial Planar Diodes JGD
BAV19W SURFACE MOUNT SWITCHING DIODES EIC

Other Datasheets by Rectron

Part Number Description
BAV19WS Fast Switching Diode
BAV19 SMALL SIGNAL SWITCHING DIODE
BAV16W SMALL SIGNAL DIODE
BAV16WS SMALL SIGNAL DIODE
BAV17 SMALL SIGNAL SWITCHING DIODE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

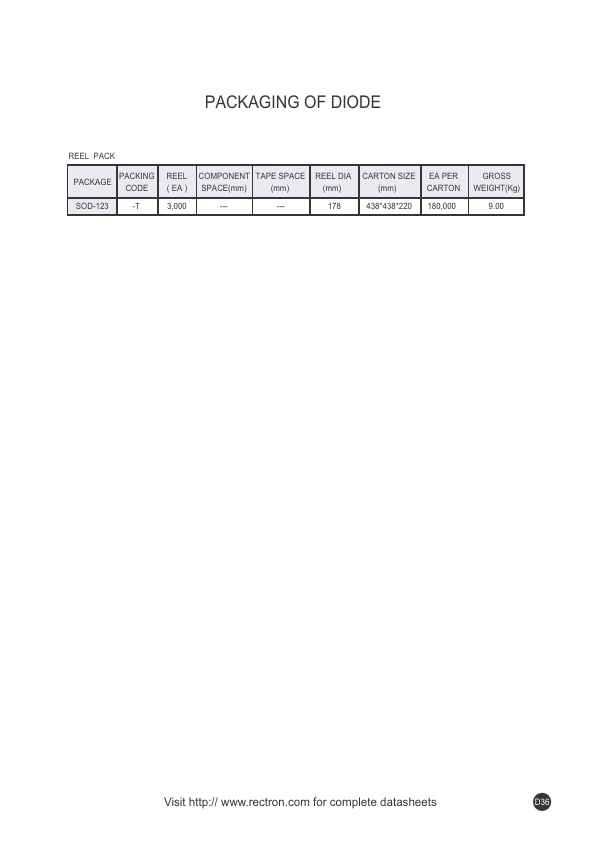

RECTRON SEMICONDUCTOR TECHNICAL SPECIFICATION BAV19W SMALL SIGNAL DIODE VOLTAGE RANGE 100 Volts CURRENT 200 mAmpere FEATURES * Fast Switching Speed * Surface Mount Package ldeally Suited for Automatic Insertion * General Purpose Switching Applications MECHANICAL DATA * Case: Molded plastic * Epoxy: UL 94V-O rate flame retardant * Lead: MIL-STD-202E method 208C guaranteed * Mounting position: Any * Weight: 0.01 gram .026(.65) .018(.45) SOD-123 .110(2.80) .102(2.60) .152(3.85) .140(3.55) .067(1.70) .059(1.50) .006(.15) .003(.08) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 oC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
