SCT3080KL - N-channel SiC power MOSFET

Features

  • 1) Low on-resistance 2) Fast switching speed 3) Fast reverse recovery 4) Easy to parallel 5) Simple to drive 6) Pb-free lead plating ; RoHS compliant l.

📥 Download Datasheet

Datasheet preview – SCT3080KL

Datasheet Details

Part number SCT3080KL
Manufacturer ROHM
File Size 1.17 MB
Description N-channel SiC power MOSFET
Datasheet download datasheet SCT3080KL Datasheet

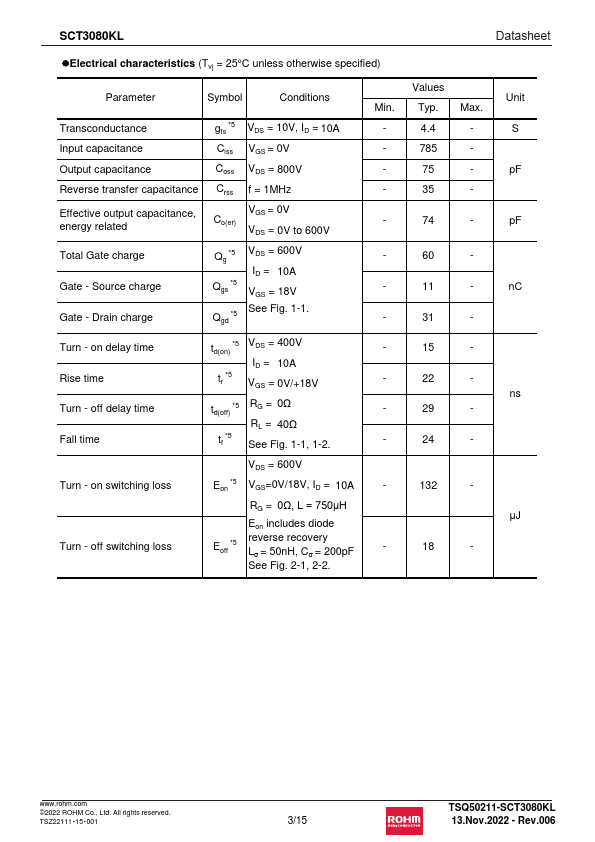

Additional preview pages of the SCT3080KL datasheet.

📁 Similar Datasheet

  • SCT3060 - N-Channel MOSFET (INCHANGE)
  • SCT30N120 - 1200V 45A Silicon carbide Power MOSFET (STMicroelectronics)
  • SCT31110 - Three Phase Solid State Relays (celduc-relais)
  • SCT316LD - 300W Transient Voltage Supperssors Array (SeCoS)
  • SCT316LD03C - 300W Transient Voltage Supperssors Array (SeCoS)
  • SCT316LD05C - 300W Transient Voltage Supperssors Array (SeCoS)
  • SCT316LD12C - 300W Transient Voltage Supperssors Array (SeCoS)
  • SCT316LD16C - 300W Transient Voltage Supperssors Array (SeCoS)
  • SCT316LD24C - 300W Transient Voltage Supperssors Array (SeCoS)
  • SCT316LD36C - 300W Transient Voltage Supperssors Array (SeCoS)
Other Datasheets by ROHM

Full PDF Text Transcription

Click to expand full text

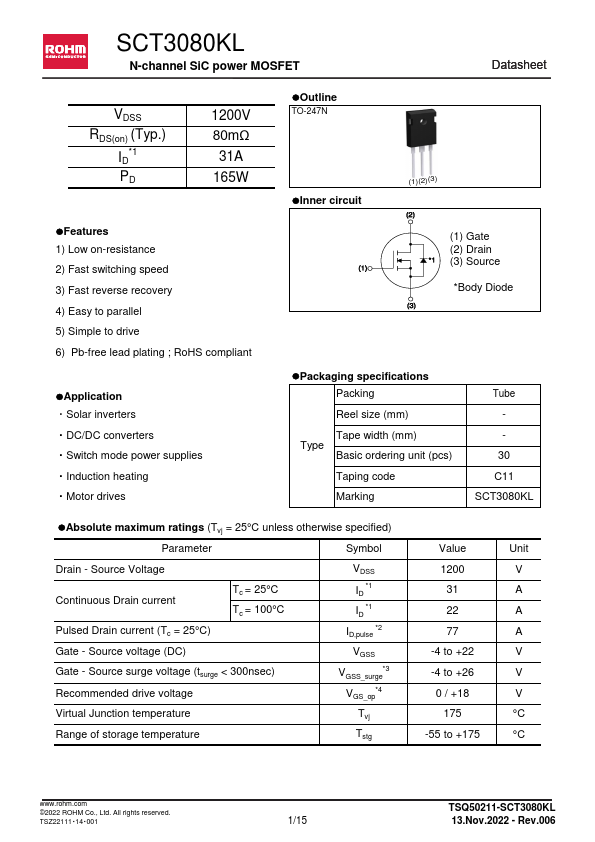

SCT3080KL N-channel SiC power MOSFET Datasheet VDSS RDS(on) (Typ.) ID*1 PD 1200V 80mΩ 31A 165W lOutline TO-247N lInner circuit (1) (2) (3) lFeatures 1) Low on-resistance 2) Fast switching speed 3) Fast reverse recovery 4) Easy to parallel 5) Simple to drive 6) Pb-free lead plating ; RoHS compliant lApplication Solar inverters DC/DC converters Switch mode power supplies Induction heating Motor drives (1) Gate (2) Drain (3) Source *Body Diode Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction.
