SCT3080AL - N-channel SiC power MOSFET

Features

  • 1) Low on-resistance 2) Fast switching speed 3) Fast reverse recovery 4) Easy to parallel 5) Simple to drive 6) Pb-free lead plating ; RoHS compliant l.

📥 Download Datasheet

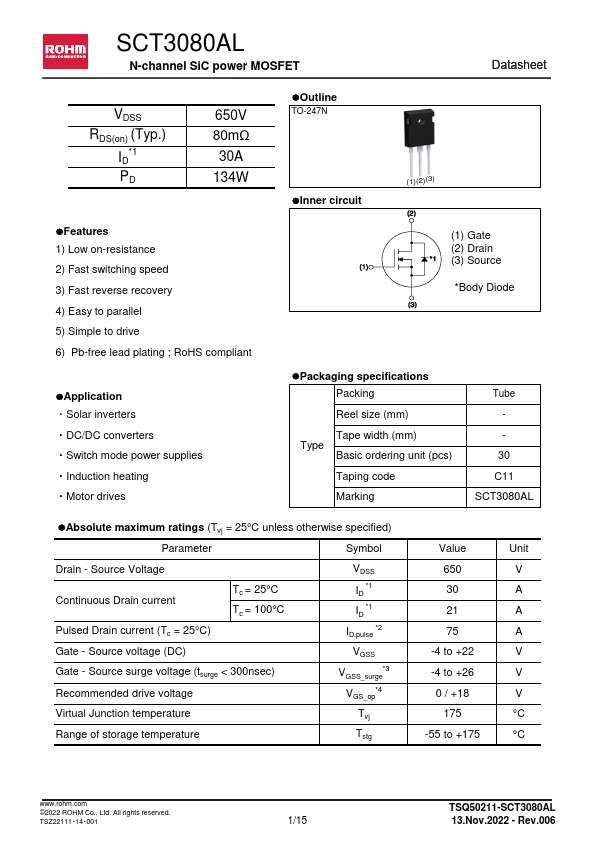

Datasheet preview – SCT3080AL

Datasheet Details

Part number SCT3080AL
Manufacturer ROHM
File Size 1.17 MB
Description N-channel SiC power MOSFET
Datasheet download datasheet SCT3080AL Datasheet
Additional preview pages of the SCT3080AL datasheet.

📁 Similar Datasheet

  • SCT3060 - N-Channel MOSFET (INCHANGE)
  • SCT30N120 - 1200V 45A Silicon carbide Power MOSFET (STMicroelectronics)
  • SCT31110 - Three Phase Solid State Relays (celduc-relais)
  • SCT316LD - 300W Transient Voltage Supperssors Array (SeCoS)
  • SCT316LD03C - 300W Transient Voltage Supperssors Array (SeCoS)
  • SCT316LD05C - 300W Transient Voltage Supperssors Array (SeCoS)
  • SCT316LD12C - 300W Transient Voltage Supperssors Array (SeCoS)
  • SCT316LD16C - 300W Transient Voltage Supperssors Array (SeCoS)
  • SCT316LD24C - 300W Transient Voltage Supperssors Array (SeCoS)
  • SCT316LD36C - 300W Transient Voltage Supperssors Array (SeCoS)
Other Datasheets by ROHM

Full PDF Text Transcription

Click to expand full text
SCT3080AL N-channel SiC power MOSFET Datasheet VDSS RDS(on) (Typ.) ID*1 PD 650V 80mΩ 30A 134W lOutline TO-247N lInner circuit (1)(2)(3) lFeatures 1) Low on-resistance 2) Fast switching speed 3) Fast reverse recovery 4) Easy to parallel 5) Simple to drive 6) Pb-free lead plating ; RoHS compliant lApplication Solar inverters DC/DC converters Switch mode power supplies Induction heating Motor drives (1) Gate (2) Drain (3) Source *Body Diode Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction.
