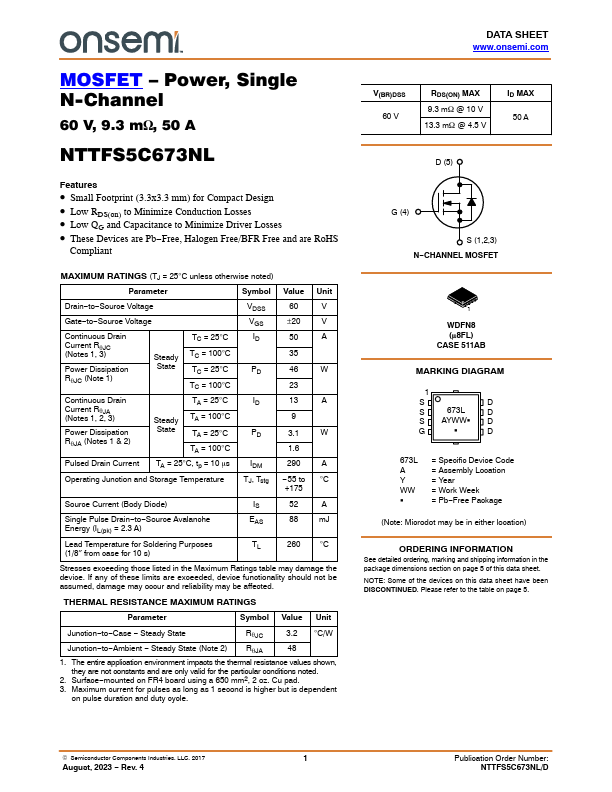

NTTFS5C673NL
Power MOSFET
60 V, 9.3 mW, 50 A, Single N−Channel
Features
• Small Footprint (3.3x3.3 mm) for Compact Design • Low RDS(on) to Minimize Conduction Losses • Low QG and Capacitance to Minimize Driver Losses • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
MAXIMUM RATINGS (TJ = 25°C unless otherwise noted)
Parameter
Symbol Value Unit
Drain−to−Source Voltage
VDSS
60
V
Gate−to−Source Voltage
VGS
±20
V
Continuous Drain Current RqJC (Notes 1, 3)
Power Dissipation RqJC (Note 1)
TC = 25°C
ID
Steady TC = 100°C
State TC = 25°C
PD
TC = 100°C
50
A
35
46
W
23
Continuous Drain Current RqJA (Notes 1, 2, 3)
Power Dissipation RqJA (Notes 1 & 2)
TA = 25°C
ID
Steady TA = 100°C
State TA = 25°C
PD
TA = 100°C
13
A
9
3.1
W
1.
