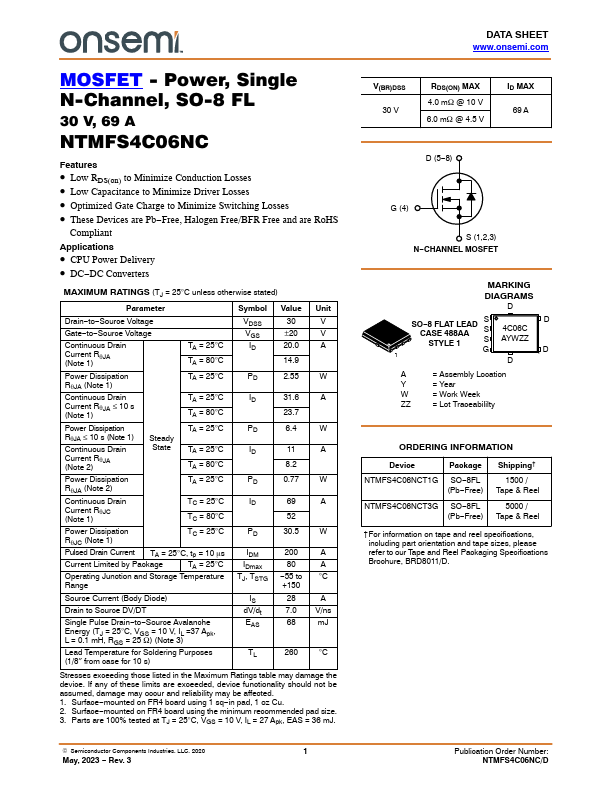

MOSFET - Power, Single N-Channel, SO-8 FL
30 V, 69 A
NTMFS4C06NC
Features
• Low RDS(on) to Minimize Conduction Losses • Low Capacitance to Minimize Driver Losses • Optimized Gate Charge to Minimize Switching Losses • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
Applications
• CPU Power Delivery • DC−DC Converters
MAXIMUM RATINGS (TJ = 25°C unless otherwise stated)
Parameter
Symbol Value Unit
Drain−to−Source Voltage
Gate−to−Source Voltage
Continuous Drain Current RqJA (Note 1)
VDSS
30
V
VGS
±20
V
TA = 25°C
ID
20.0
A
TA = 80°C
14.9
Power Dissipation RqJA (Note 1)
Continuous Drain Current RqJA ≤ 10 s (Note 1)
TA = 25°C
PD
TA = 25°C
ID
TA = 80°C
2.55 W
31.6
A
23.
