NRVBS230L - Surface Mount Schottky Power Rectifier

Features

  • epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for low voltage, high frequency switching power supplies; free wheeling diodes and polarity protection diodes. Features.
  • Compact Package with J.
  • Bend Leads Ideal for Automated Handling.
  • Highly Stable Oxide Passivated Junction.
  • Guardring for Over.
  • Voltage Protection.
  • Low Forward Voltage Drop.
  • NRVBS Prefix for Automotive and Other.

📥 Download Datasheet

Datasheet preview – NRVBS230L

Datasheet Details

Part number NRVBS230L
Manufacturer ON Semiconductor
File Size 248.58 KB
Description Surface Mount Schottky Power Rectifier
Datasheet download datasheet NRVBS230L Datasheet

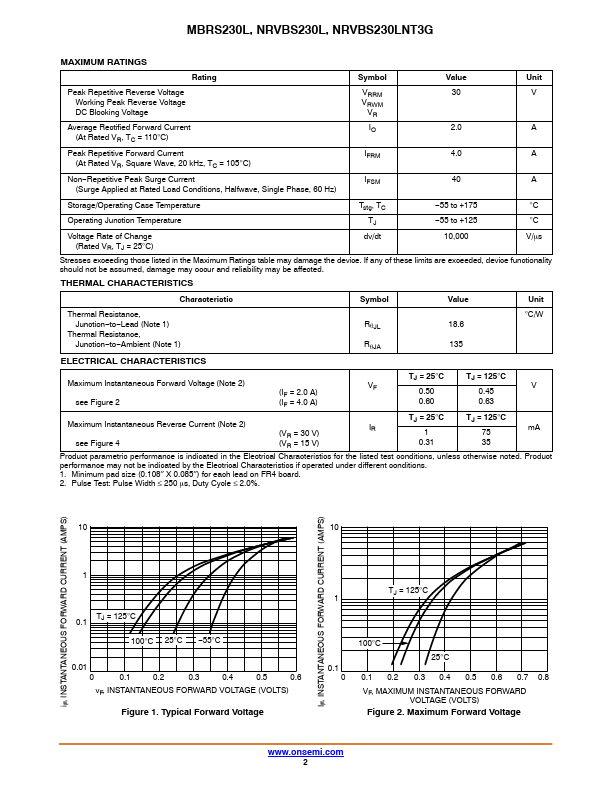

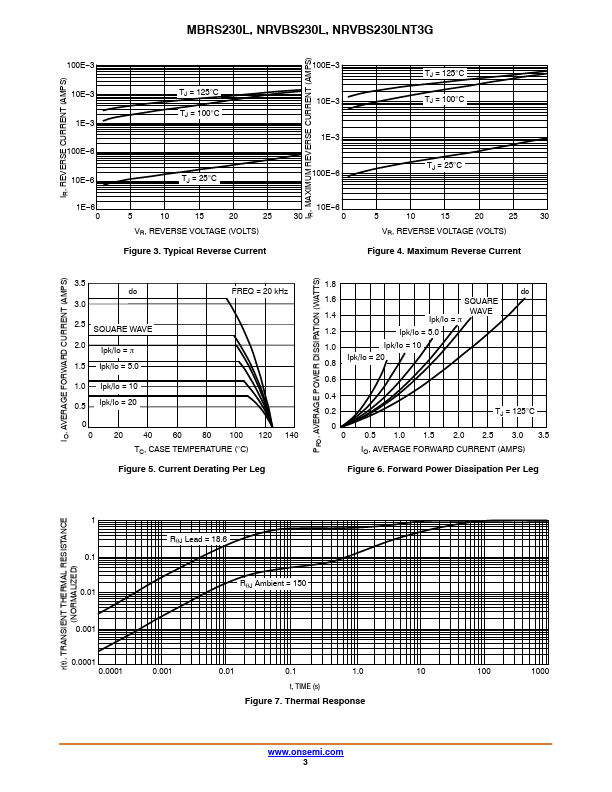

Additional preview pages of the NRVBS230L datasheet.

📁 Similar Datasheet

  • NRVBSS13HE - Surface Mount Schottky Barrier Rectifiers (onsemi)
  • NRVBSS14HE - Surface Mount Schottky Barrier Rectifiers (onsemi)
  • NRVBSS16HE - Surface Mount Schottky Barrier Rectifiers (onsemi)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text
Surface Mount Schottky Power Rectifier MBRS230L, NRVBS230L, NRVBS230LNT3G SMB Power Surface Mount Package This device employs the Schottky Barrier principle in a metal−to−silicon power rectifier. Features epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for low voltage, high frequency switching power supplies; free wheeling diodes and polarity protection diodes.
