NFAM3512L7B - Intelligent Power Module

General Description

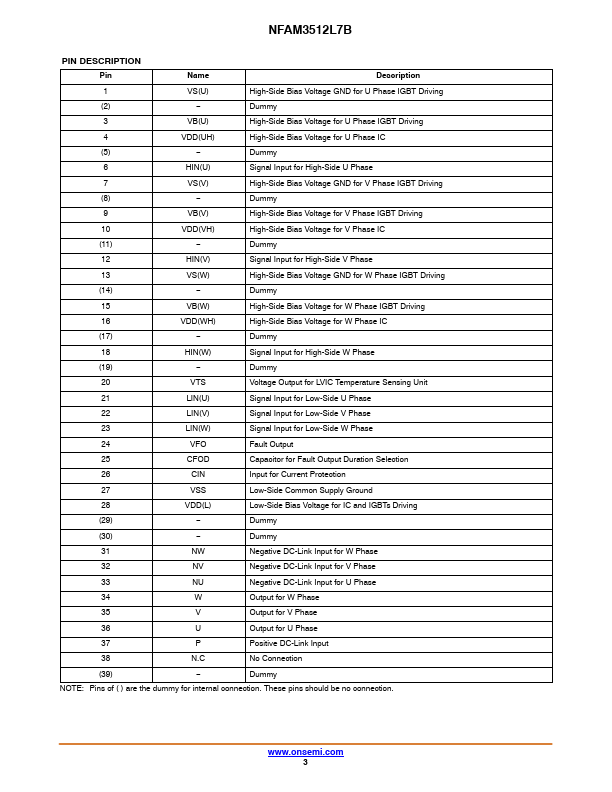

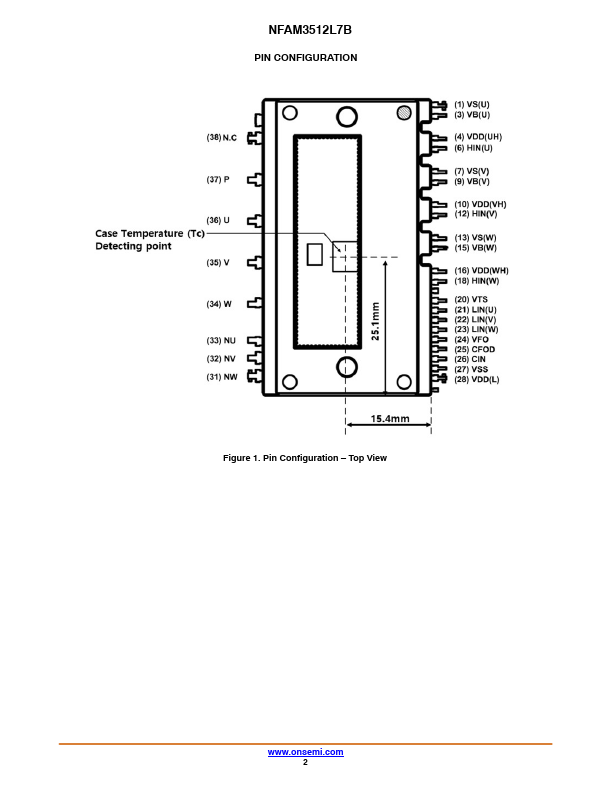

Pin Name Description 1 VS(U) High-Side Bias Voltage GND for U Phase IGBT Driving (2) Dummy 3 VB(U) High-Side Bias Voltage for U Phase IGBT Driving 4 VDD(UH) High-Side Bias Voltage for U Phase IC (5) Dummy 6 HIN(U) Signal Input for High-Side U Phase 7 VS(V)

Key Features

  • including under-voltage lockouts, over-current shutdown, thermal monitoring of drive IC, and fault reporting. The built-in, high-speed HVIC requires only a single supply voltage and translates the incoming logic-level gate inputs to the high-voltage, high-current drive signals required to properly drive the module’s internal IGBTs. Separate negative IGBT terminals are available for each phase to support the widest variety of control algorithms. Features.
  • 1200 V 35 A 3-Phase FS7 IGBT Inverte.

📥 Download Datasheet

Datasheet Details

Part number NFAM3512L7B
Manufacturer onsemi
File Size 651.68 KB
Description Intelligent Power Module
Datasheet download datasheet NFAM3512L7B Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NFAM2065L4B IPM onsemi
NFAM5312SCBUT 1200V 40A IPM onsemi
NFA100-220S05 50-150W Single Output / built-in surge suppression and filtering circuit AC / DC power modules NFA
NFA100-220S09 50-150W Single Output / built-in surge suppression and filtering circuit AC / DC power modules NFA
NFA100-220S12 50-150W Single Output / built-in surge suppression and filtering circuit AC / DC power modules NFA

Other Datasheets by onsemi

Part Number Description
NFAM0512L5BT IPM
NFAM2512L7BL Intelligent Power Module
NFAM2512SCBUT IPM
NFA31512L72 Intelligent Power Module

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

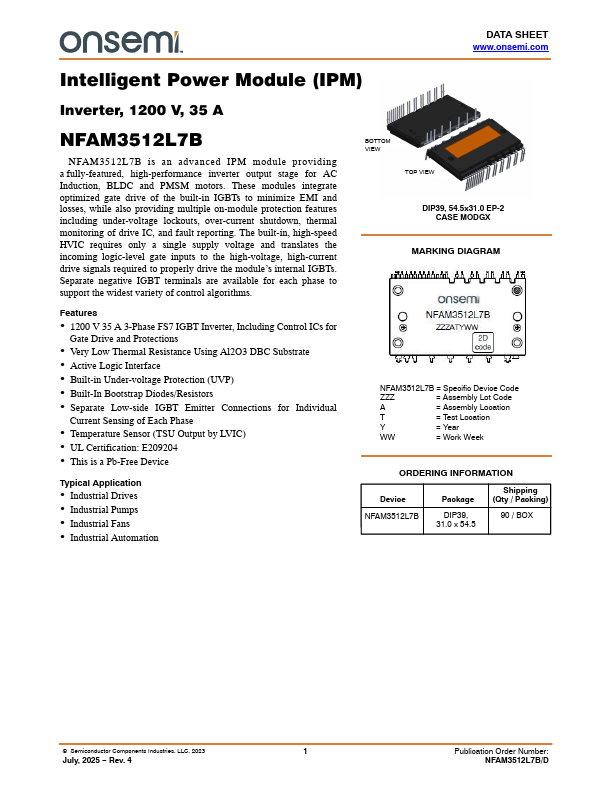

DATA SHEET www.onsemi.com Intelligent Power Module (IPM) Inverter, 1200 V, 35 A NFAM3512L7B NFAM3512L7B is an advanced IPM module providing a fully-featured, high-performance inverter output stage for AC Induction, BLDC and PMSM motors. These modules integrate optimized gate drive of the built-in IGBTs to minimize EMI and losses, while also providing multiple on-module protection features including under-voltage lockouts, over-current shutdown, thermal monitoring of drive IC, and fault reporting. The built-in, high-speed HVIC requires only a single supply voltage and translates the incoming logic-level gate inputs to the high-voltage, high-current drive signals required to properly drive the module’s internal IGBTs.
