NCV8440A - Protected Power MOSFET

This page provides the datasheet information for the NCV8440A, a member of the NCV8440 Protected Power MOSFET family.

Features

  • Diode Clamp Between Gate and Source.
  • ESD Protection.
  • Human Body Model 5000 V.
  • Active Over.
  • Voltage Gate to Drain Clamp.
  • Scalable to Lower or Higher RDS(on).
  • Internal Series Gate Resistance.
  • These are Pb.
  • Free Devices Benefits.
  • High Energy Capability for Inductive Loads.
  • Low Switching Noise Generation.

📥 Download Datasheet

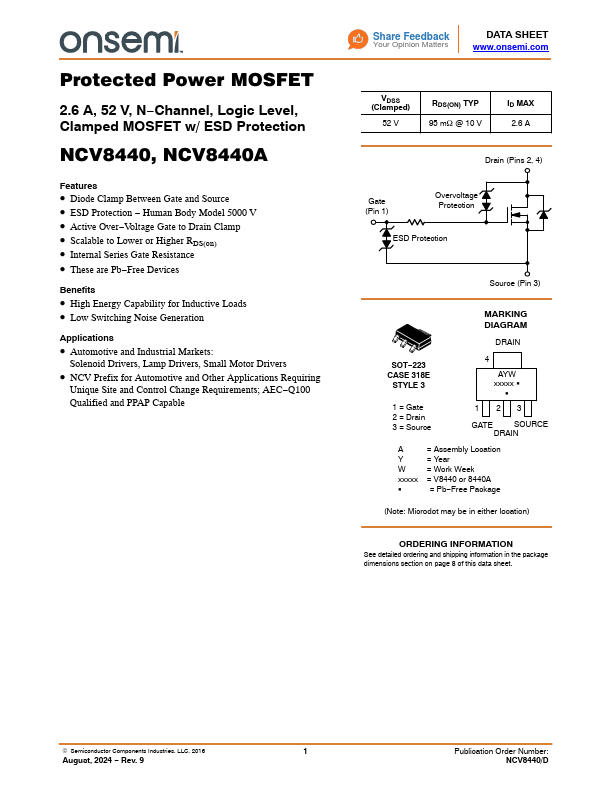

Datasheet preview – NCV8440A

Datasheet Details

Part number NCV8440A
Manufacturer ON Semiconductor
File Size 223.27 KB
Description Protected Power MOSFET
Datasheet download datasheet NCV8440A Datasheet

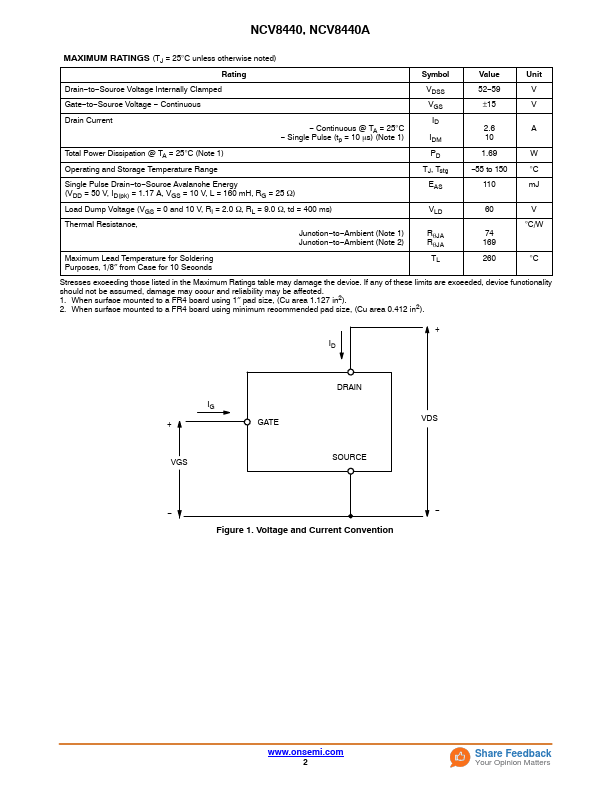

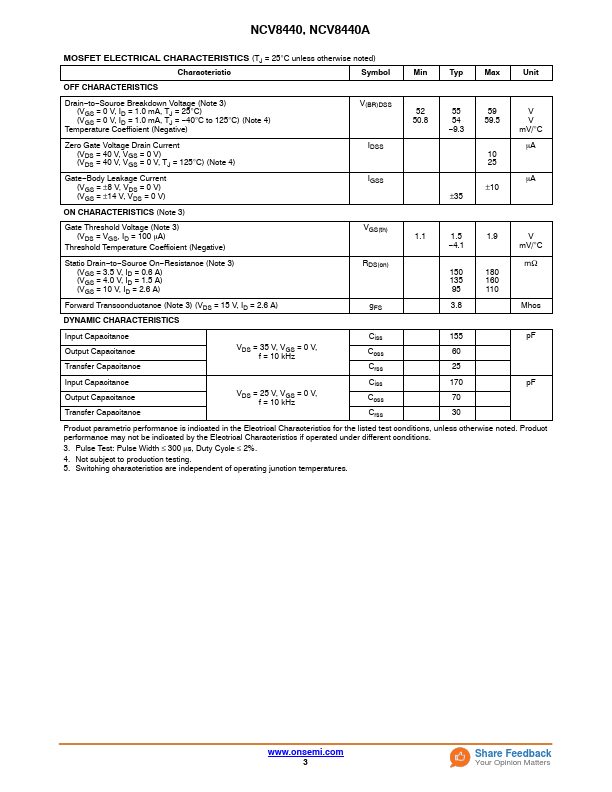

Additional preview pages of the NCV8440A datasheet.

📁 Similar Datasheet

  • NCV8184 - Tracking Regulator/Line Driver (ON)
  • NCV8501 - LDO Linear Regulators (ON)
  • NCV8502 - LDO Linear Regulators (ON)
  • NCV896530 - Buck Converter (ON Semiconducto)
  • NCV2902 - Single Supply Quad Operational Amplifiers (ON)
  • NCV3025833 - Smart Power Stage (onsemi)
  • NCV4279 - 5.0V Micropower 150mA LDO Linear Regulator (ON)
  • NCV51153 - 4.5-A/9-A Isolated Single Channel Gate Driver (onsemi)
  • NCV51563 - 4.5-A/9-A Isolated Dual Channel Gate Driver (onsemi)
  • NCV551 - Low-Dropout Voltage Regulator (ON)
Other Datasheets by ON Semiconductor
  • NCV8440 - Protected Power MOSFET
  • NCV8401A - Self-Protected Low-Side Driver
  • NCV8401B - Self-Protected Low-Side Driver
  • NCV8402 - Self-Protected Low Side Driver
  • NCV8402A - Self-Protected Low Side Driver
  • NCV8402AD - Dual Self-Protected Low-Side Driver
  • NCV8402D - Dual Self-Protected Low-Side Driver
  • NCV8403A - Self-Protected Low-Side Driver

Full PDF Text Transcription

Click to expand full text
NCV8440, NCV8440A Protected Power MOSFET 2.6 A, 52 V, N−Channel, Logic Level, Clamped MOSFET w/ ESD Protection Features • Diode Clamp Between Gate and Source • ESD Protection − Human Body Model 5000 V • Active Over−Voltage Gate to Drain Clamp • Scalable to Lower or Higher RDS(on) • Internal Series Gate Resistance • These are Pb−Free Devices Benefits • High Energy Capability for Inductive Loads • Low Switching Noise Generation Applications • Automotive and Industrial Markets: Solenoid Drivers, Lamp Drivers, Small Motor Drivers • NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable www.onsemi.com VDSS (Clamped) 52 V RDS(ON) TYP 95 mW @ 10 V ID MAX 2.
